Home >> Mazda >> 1994 >> RX-7 Automatic >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Tests W/Codes >> Code Charts >> Code 6: (Speedometer Sensor)

Code 6: (Speedometer Sensor)

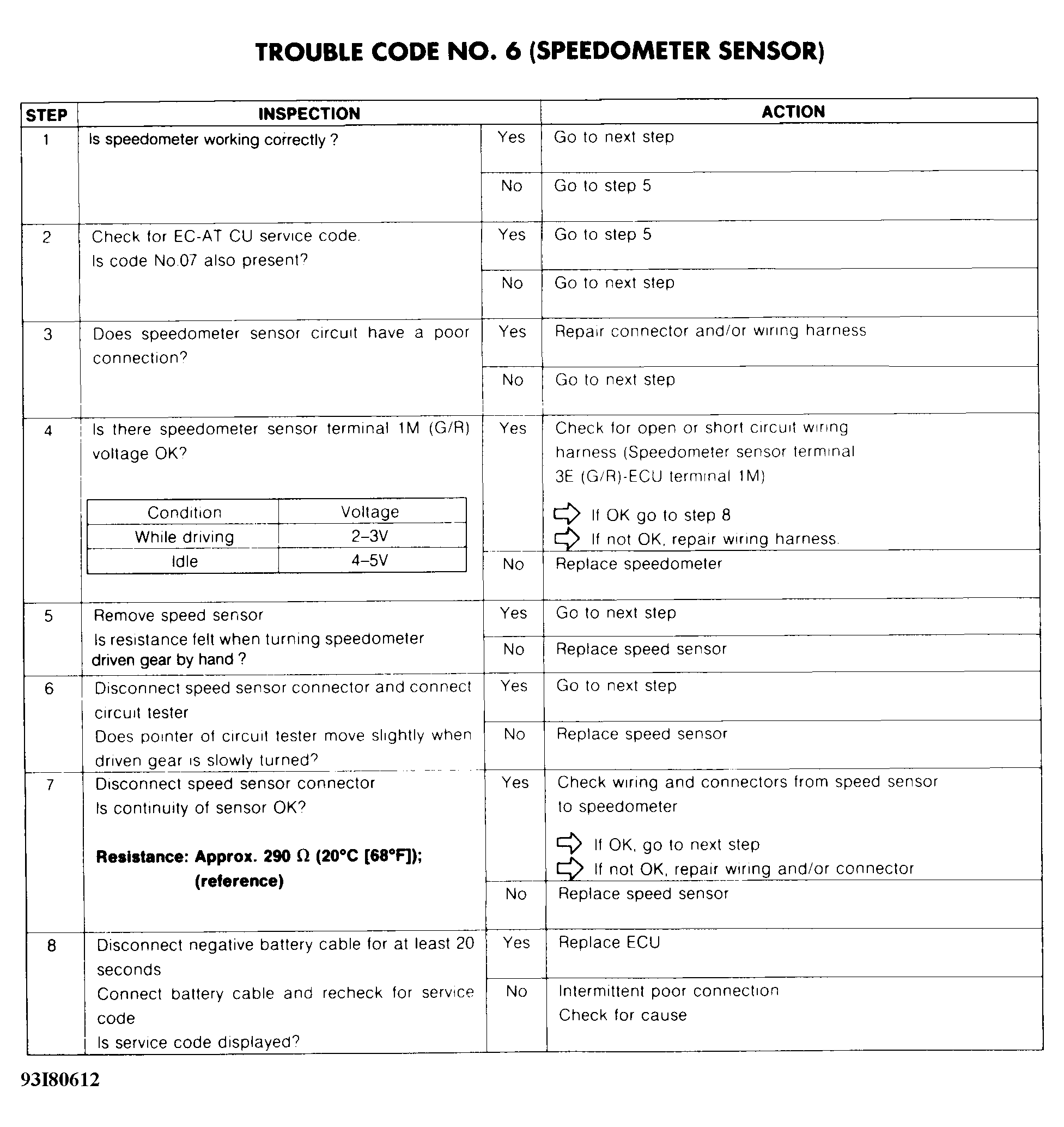

Fig 1: Trouble Code No. 6 Diagnostic Chart (RX7) (Speedometer Sensor)

G93I80612

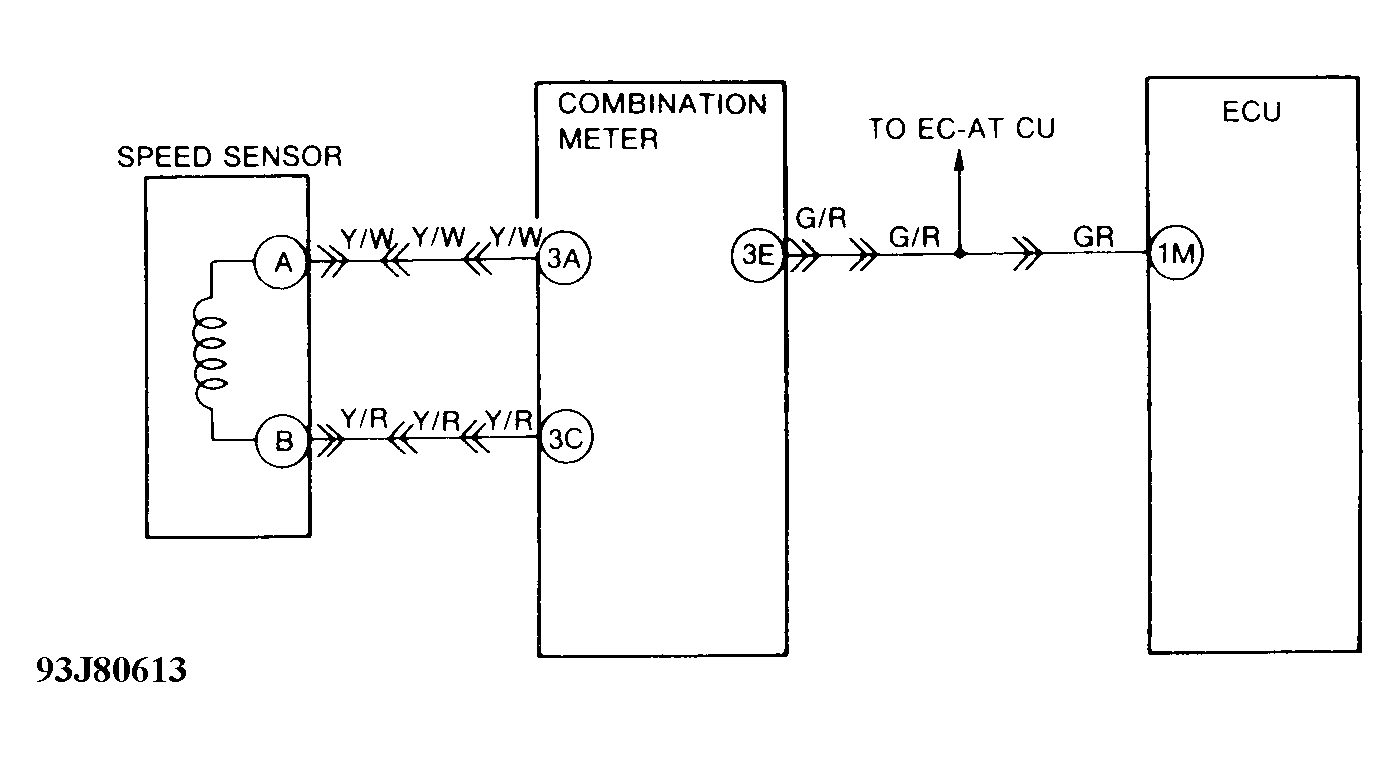

Fig 2: Trouble Code No. 6 Schematic (RX7) (Speedometer Sensor)

G93J80613
