Circuit Protection Devices
CIRCUIT PROTECTION DEVICES
| Component |
Component Location |
| Joint Box |

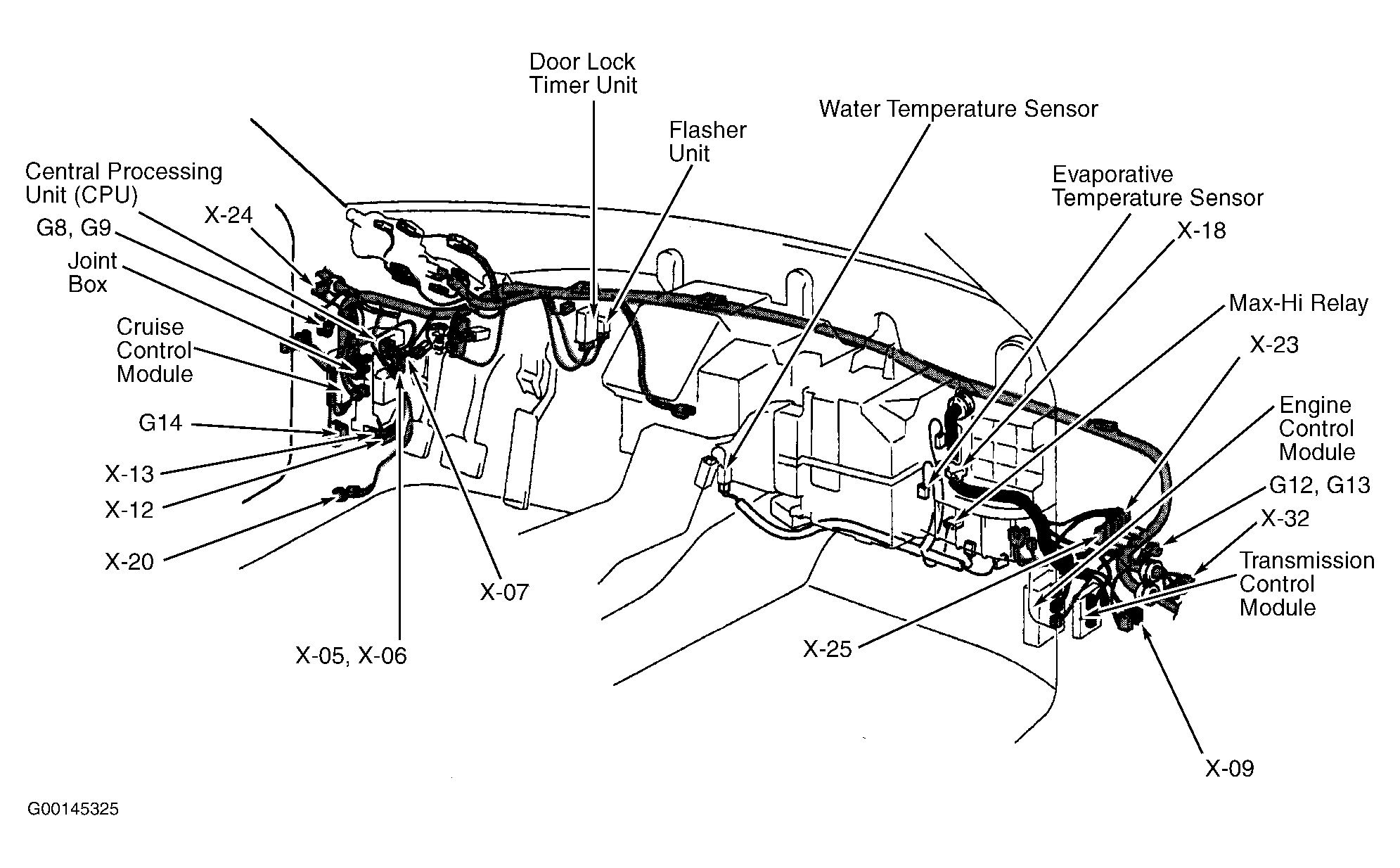

Behind left side of dash above kick panel. See Figure
. |
| Main Fuse Box |

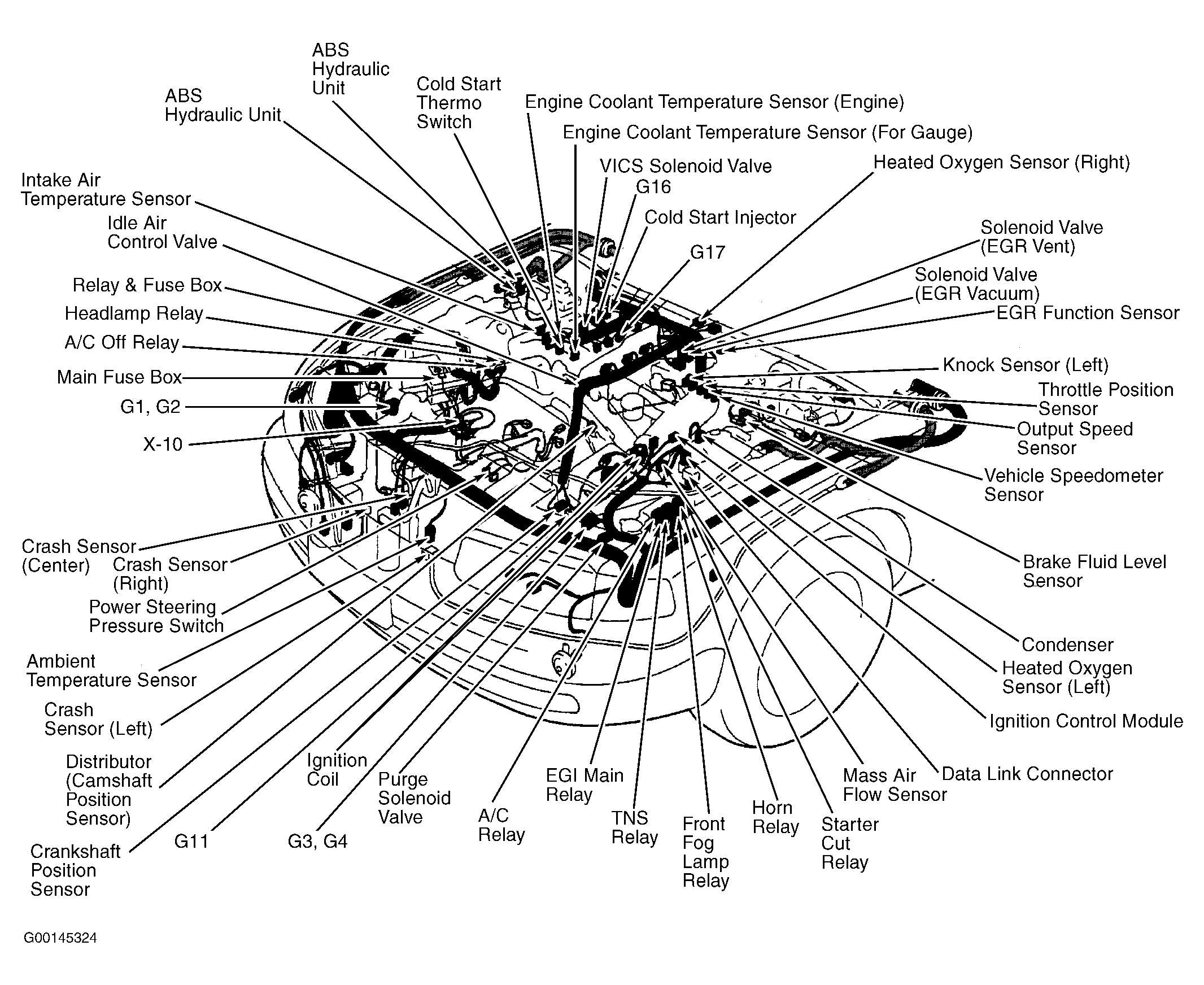

On right front inner fender panel. See Figure
. |
| Relay & Fuse Box |
On right front inner fender panel. See Figure
. |
