Code 2: Crankshaft Position Sensor - Ne Signal
Code 2: Crankshaft Position Sensor - Ne Signal

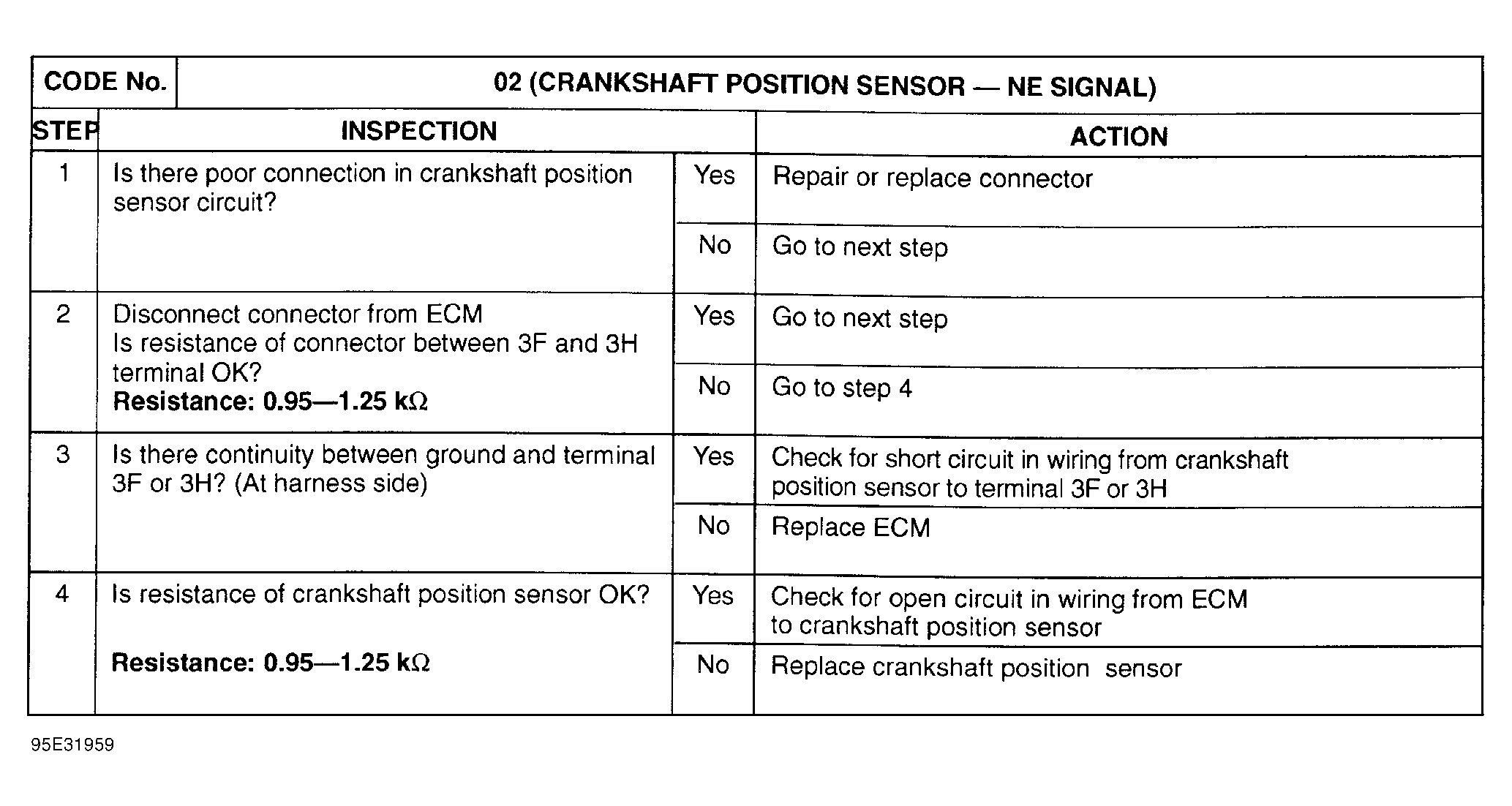

Fig 1: Trouble Code No. 2 Crankshaft Position Sensor - NE Signal

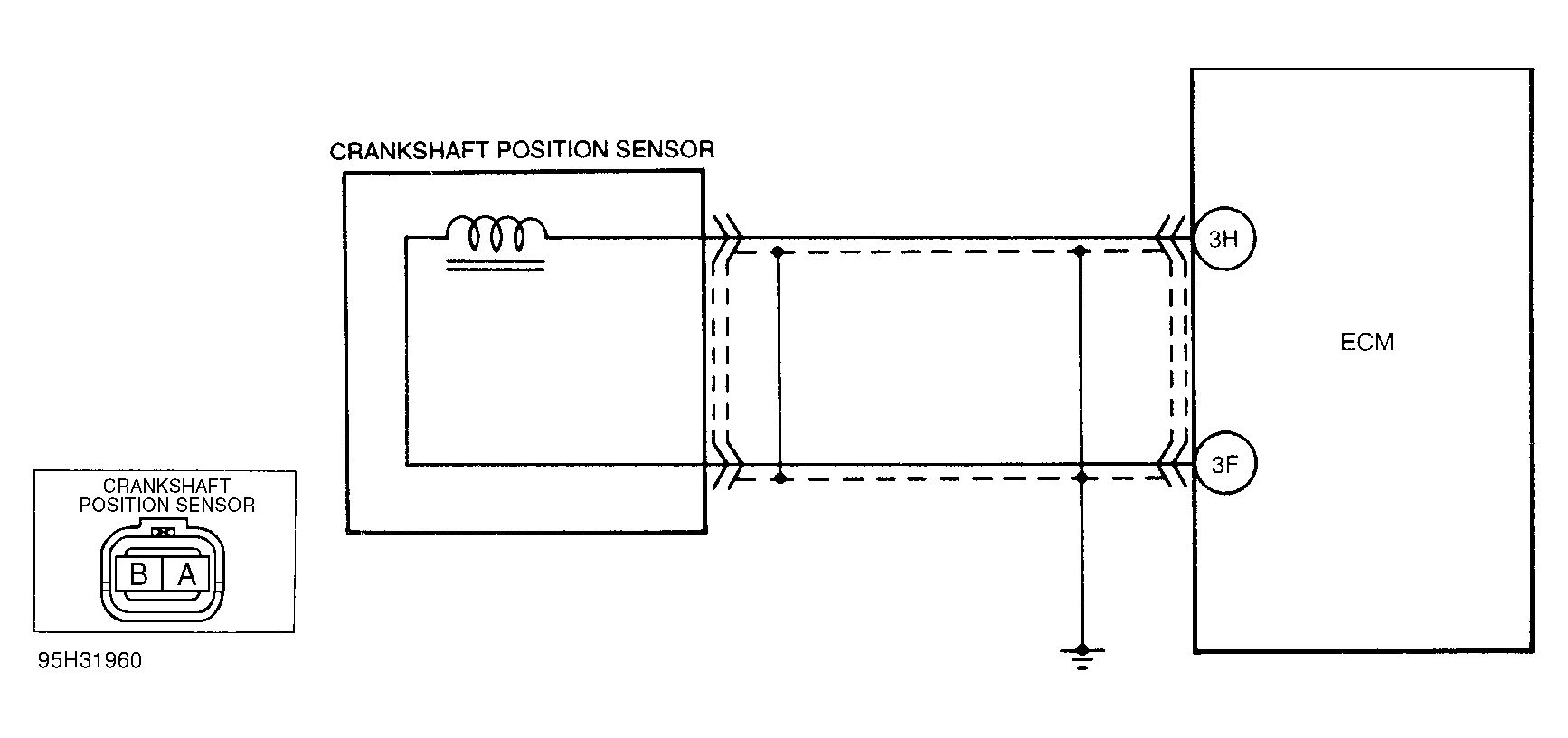

Fig 2: Trouble Code No. 2 Crankshaft position sensor circuit diagram
