Code 30: Cold Start Injector Relay
Code 30: Cold Start Injector Relay

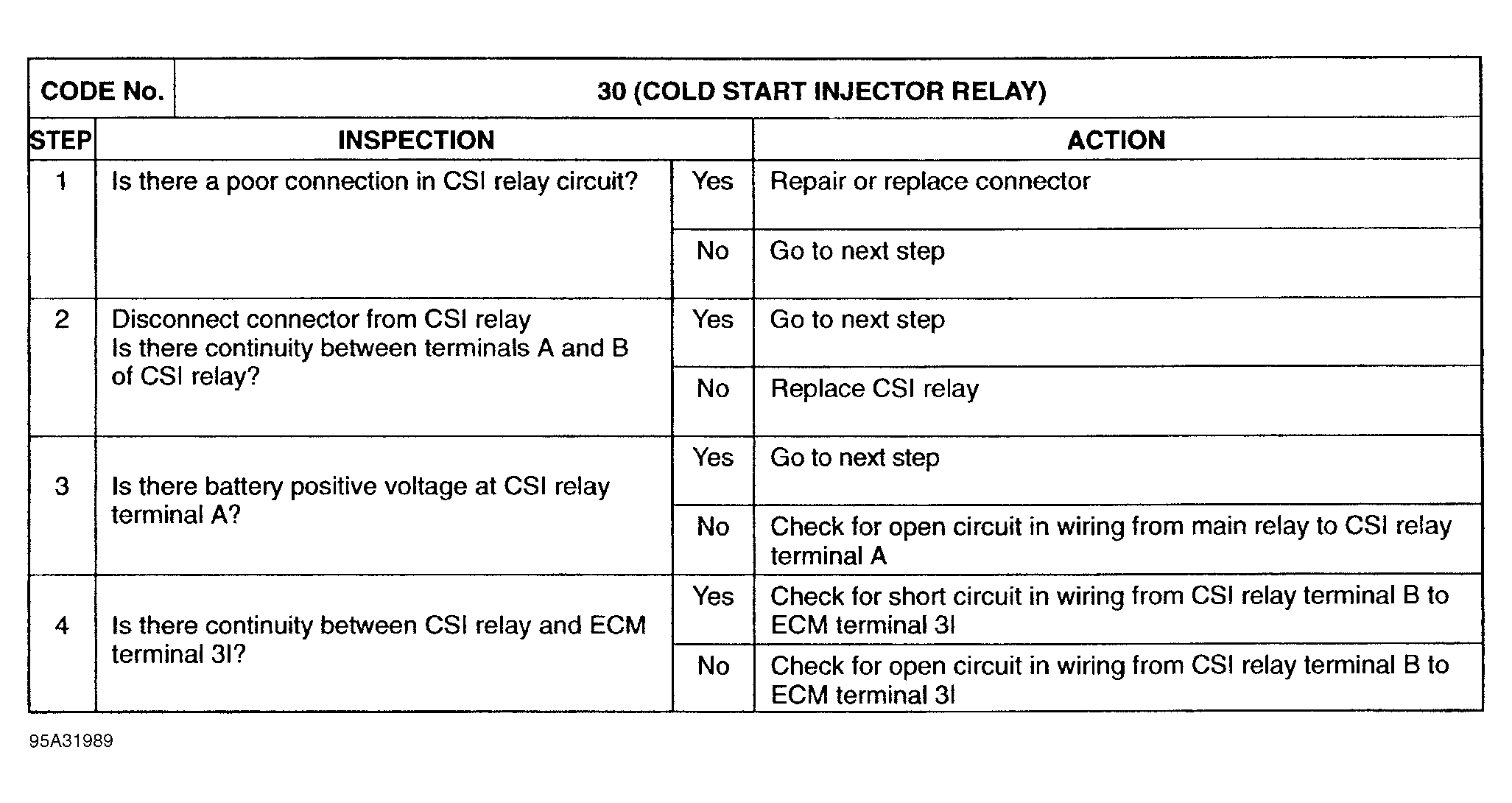

Fig 1: Trouble Code No. 30 Cold Start Injector Relay

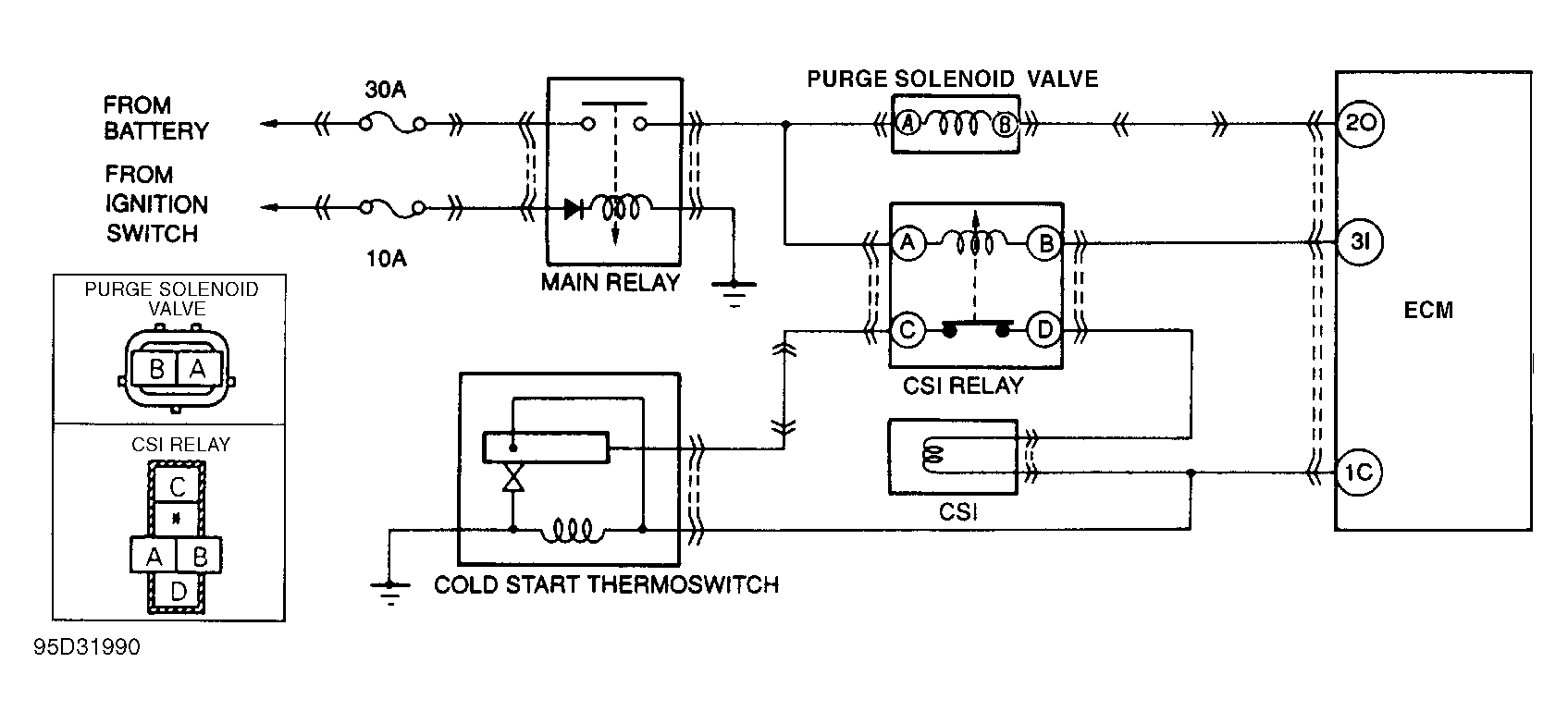

Fig 2: Trouble Code No. 30 Cold Start Injector Relay Circuit Diagram
