Home >> Mazda >> 1995 >> 929 >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Tests W/Codes >> Trouble Code Charts >> Code 8: Volume Air Flow Sensor

Code 8: Volume Air Flow Sensor

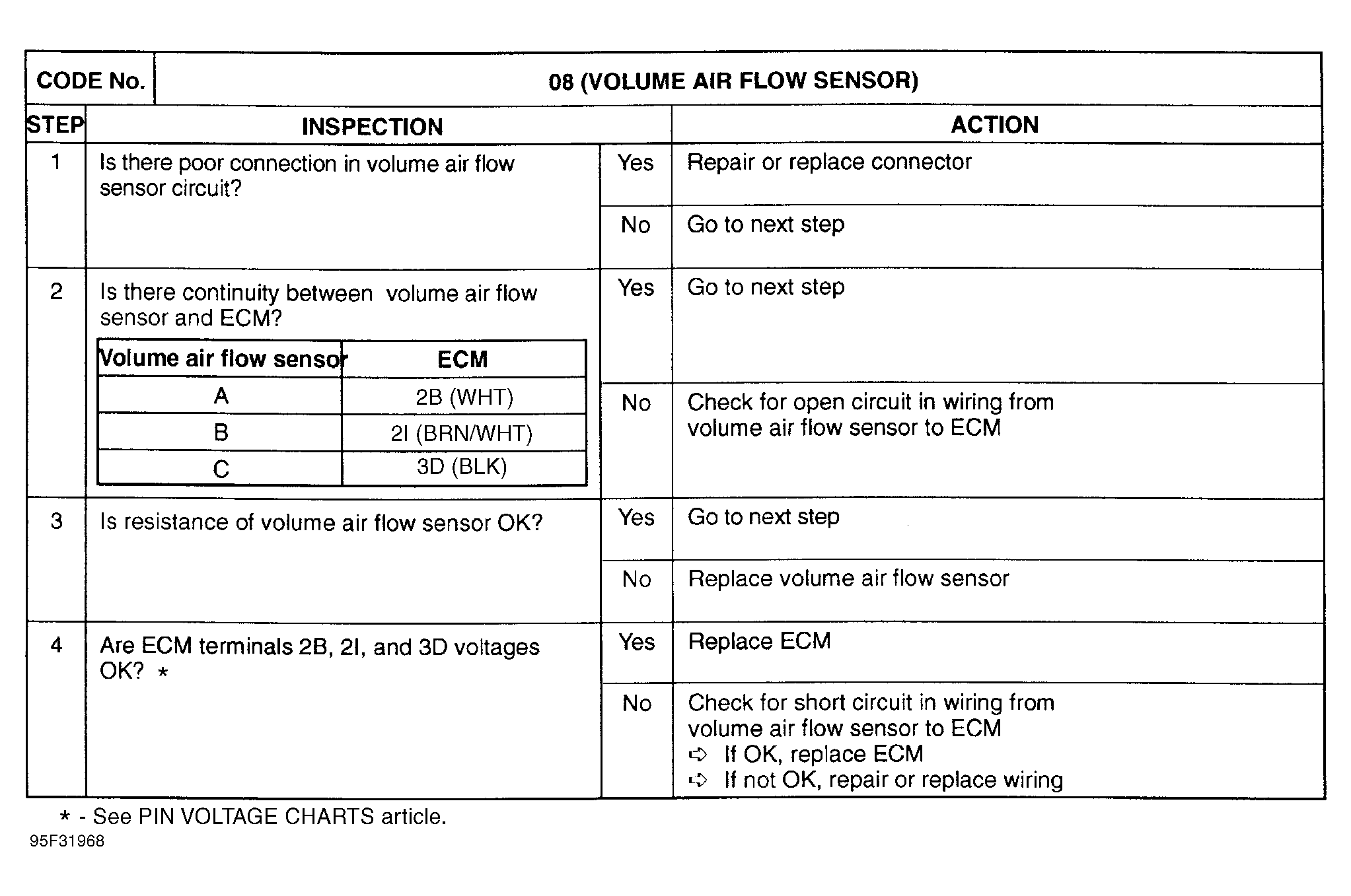

Fig 1: Trouble Code No. 8 Volume Air Flow Sensor

G95F31968

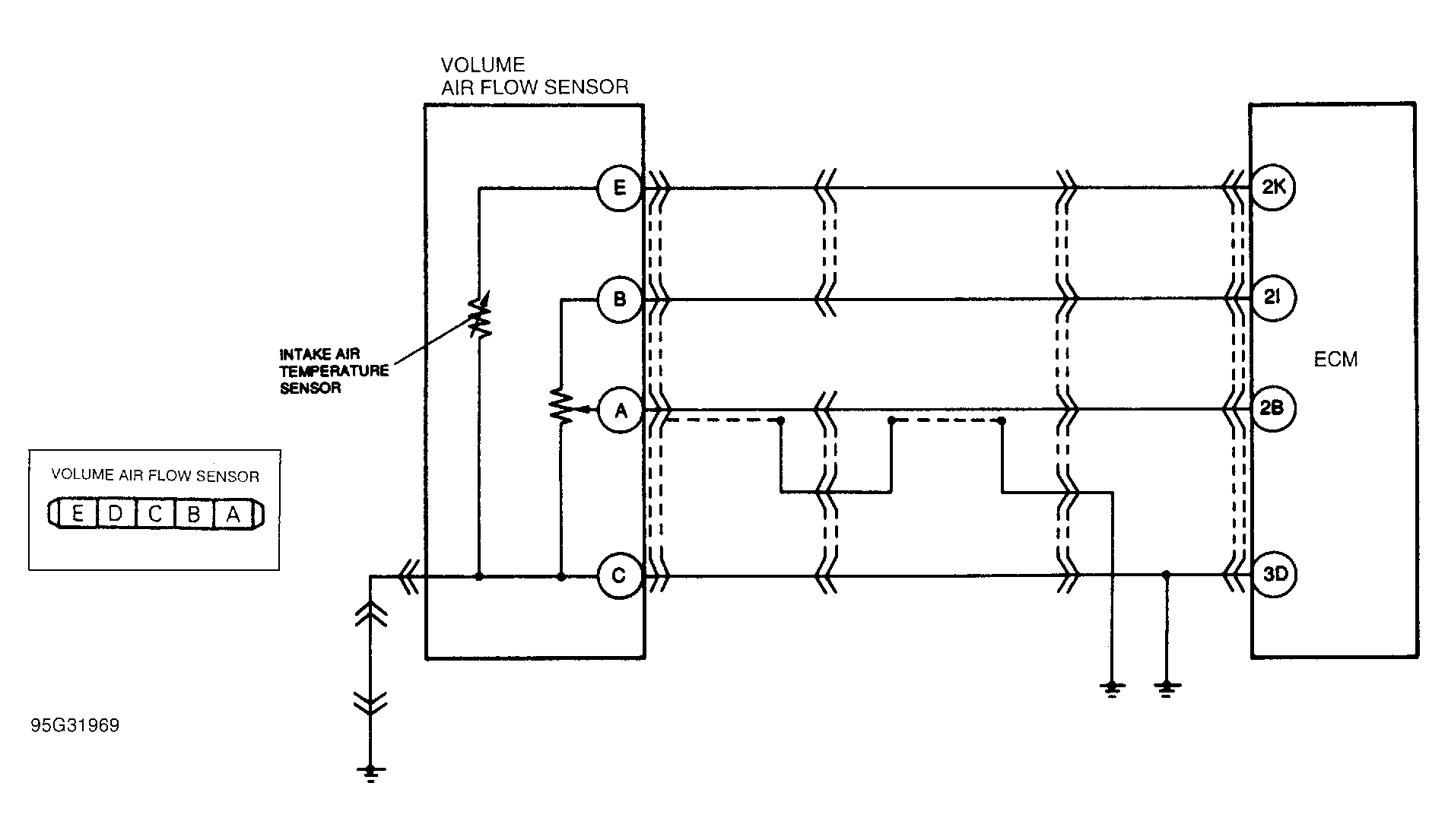

Fig 2: Trouble Code No. 8 Volume Air Flow Sensor Circuit Diagram

G95G31969
