Code P1506: Idle Air Control System Circuit Malfunction

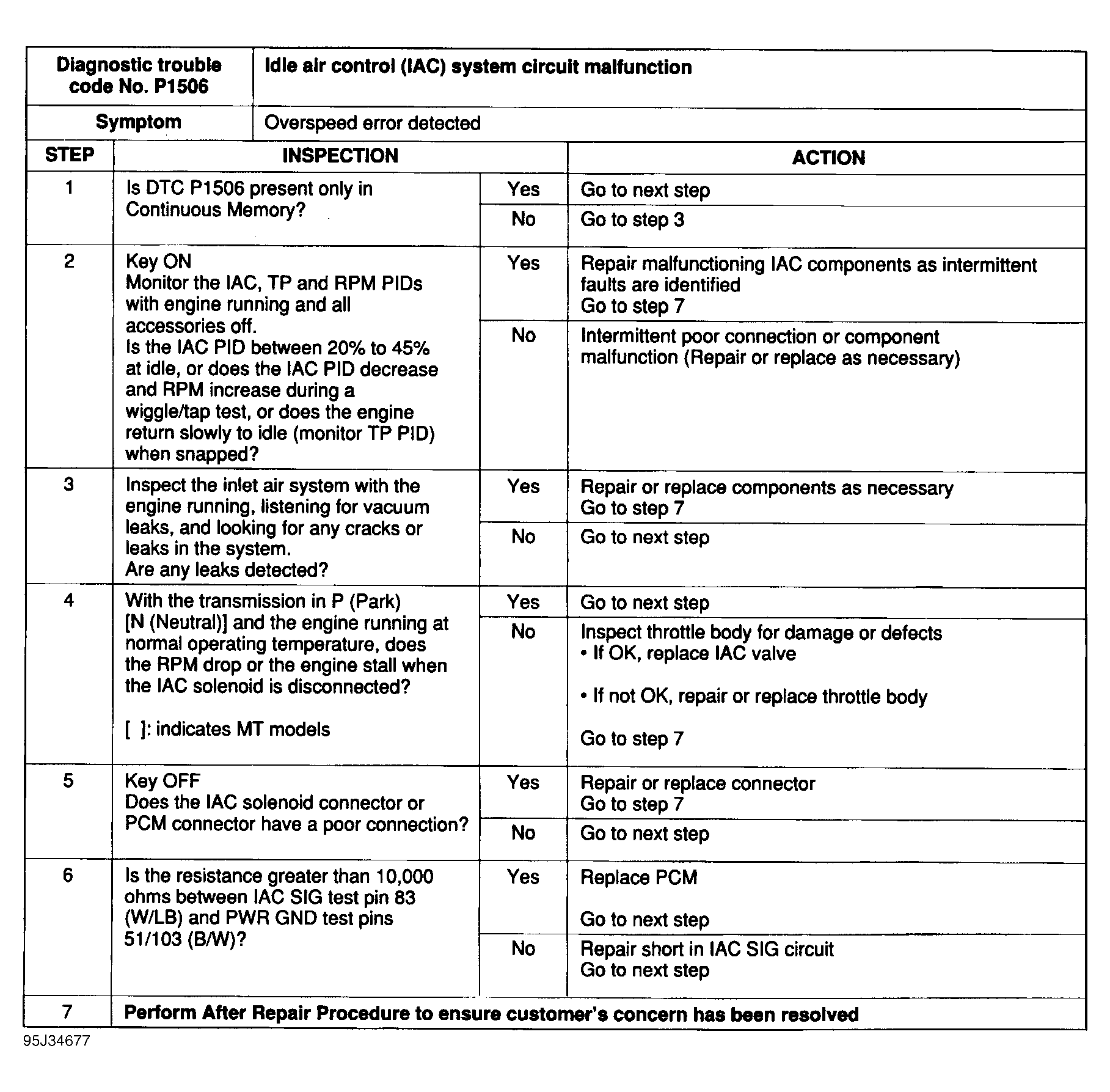

Fig 1: Trouble Code No. P1506 Idle Air Control System Circuit Malfunction
G95J34677
Fig 2: Trouble Code No. P1506 Idle Air Control (IAC) Solenoid Circuit Diagram
G95G34641
