Home >> Mazda >> 1995 >> B3000 Base, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Tests W/Codes >> Trouble Code Charts >> Codes P0603, P0605 & P1605: Powertrain Control Module Error

Codes P0603, P0605 & P1605: Powertrain Control Module Error

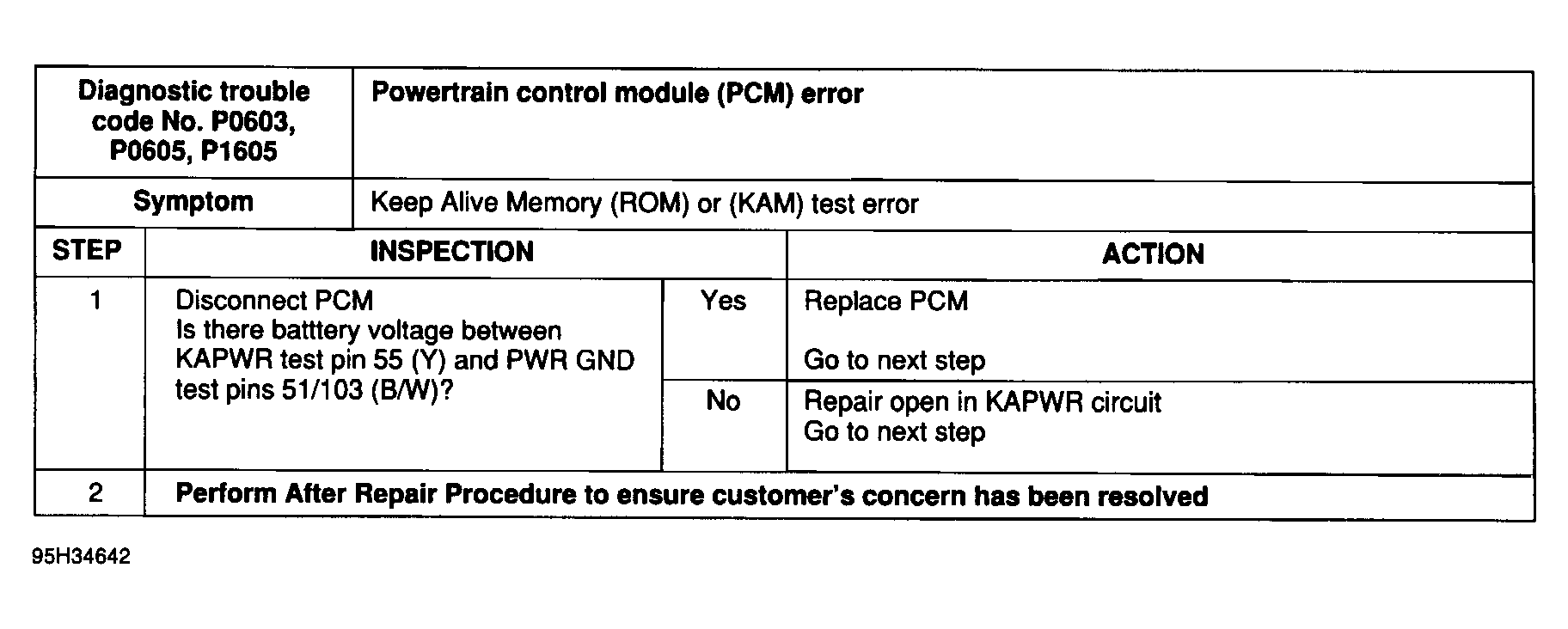

Fig 1: Trouble Codes No. P0603, P0605 & P1605 Powertrain Control Module Error
G95H34642

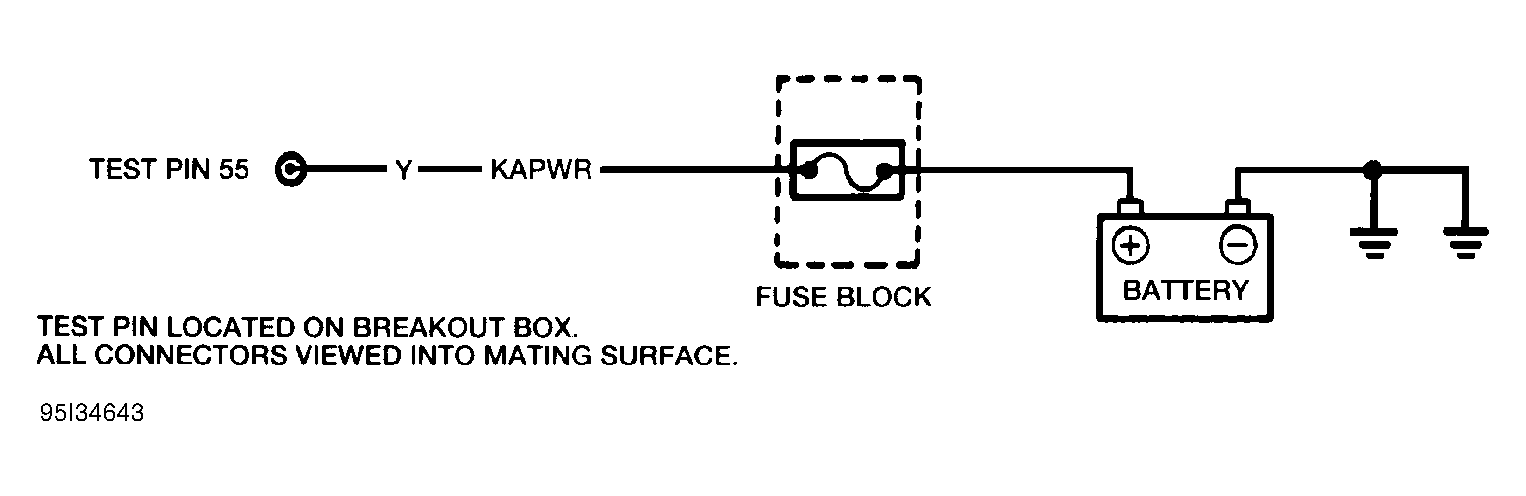

Fig 2: Trouble Codes No. P0603, P0605 & P1605 Powertrain Control Module Circuit Diagram
G95I34643
