Home >> Mazda >> 1995 >> B3000 Base, Automatic >> Repair and Diagnosis >> Steering >> Steering Column >> Overhaul

Steering Column: Overhaul

NOTE: Use illustration for exploded view of steering columns. See Fig 1 .

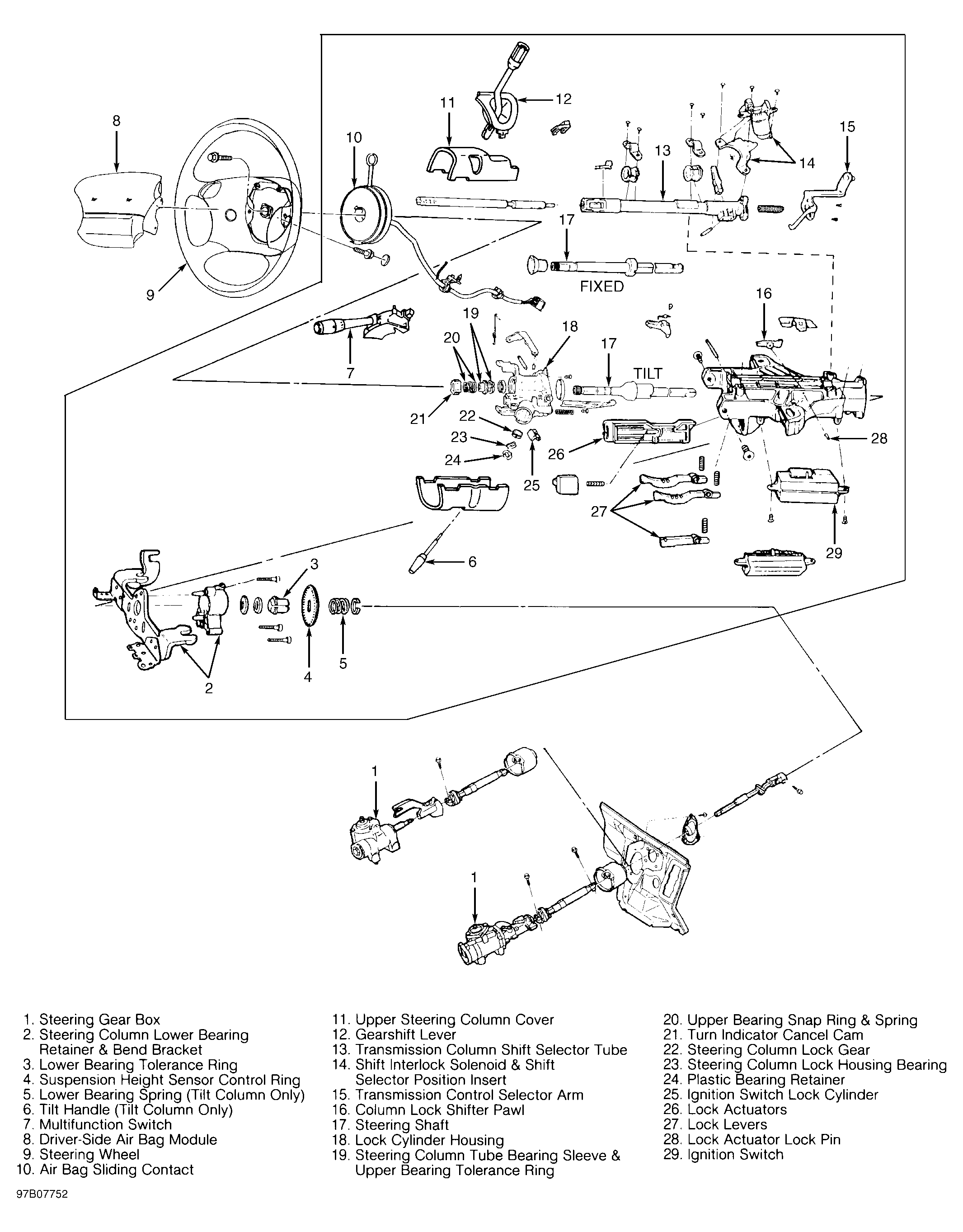

Fig 1: Exploded View of Steering Column

G97B07752

Courtesy of MAZDA MOTORS CORP.
