Abs Control Module Test
NOTE:
Use a fine wire probe when testing ABS control module connector terminals to prevent damage to connector.

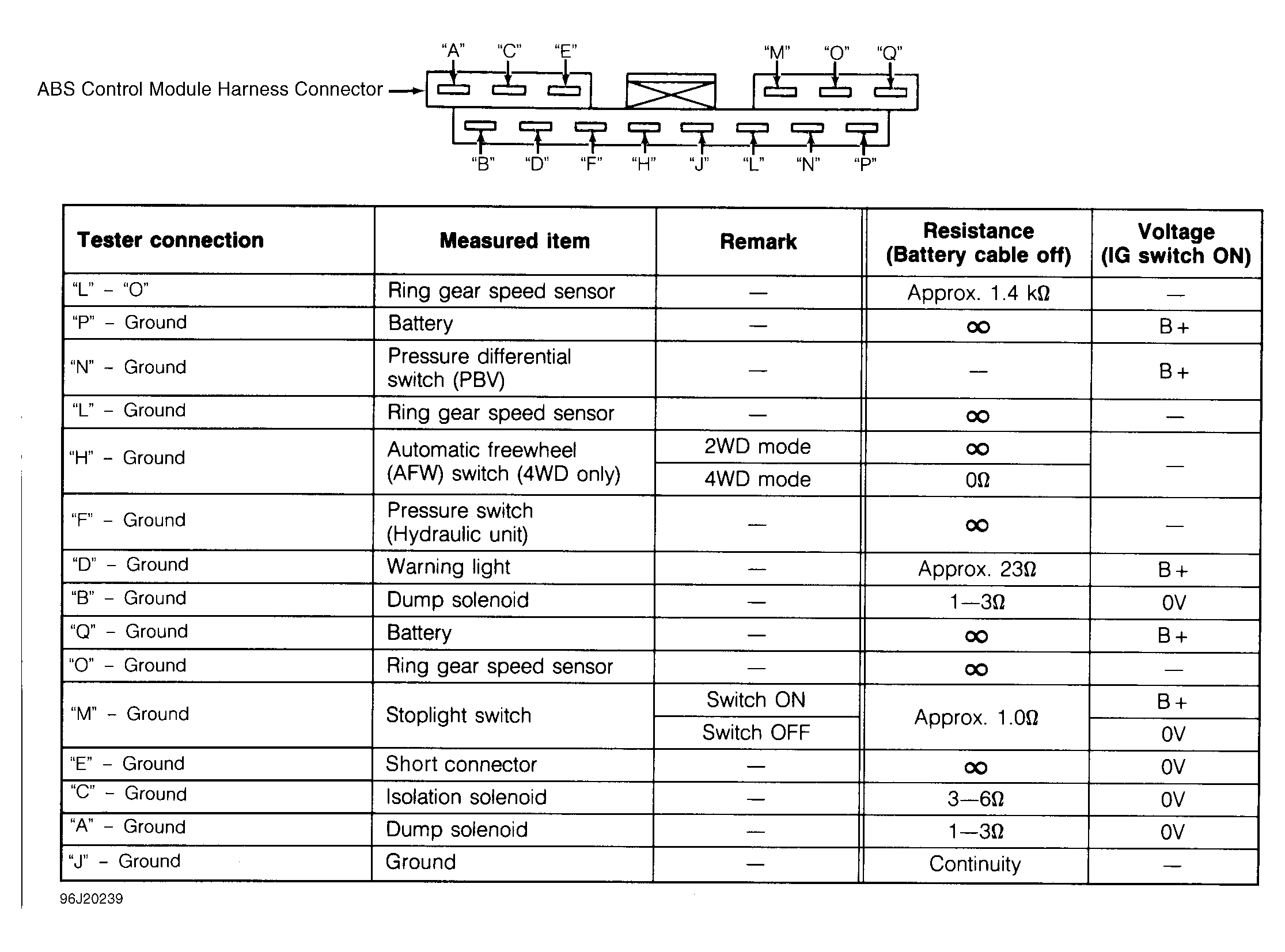

Disconnect negative battery cable. Remove rear side trim. Disconnect ABS control module harness connector. Using DVOM, measure voltage or resistance between applicable terminal of ABS control module harness connector and ground. See Fig 1. If voltage or resistance is not as specified, replace ABS control module.
