lemon-mirror
:
Home
>>
Mazda
>>
1995
>>
MPV L
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Controls - Tests W/Codes
>>
Trouble Code Identification
>>
Notes
Trouble Code Identification: Notes

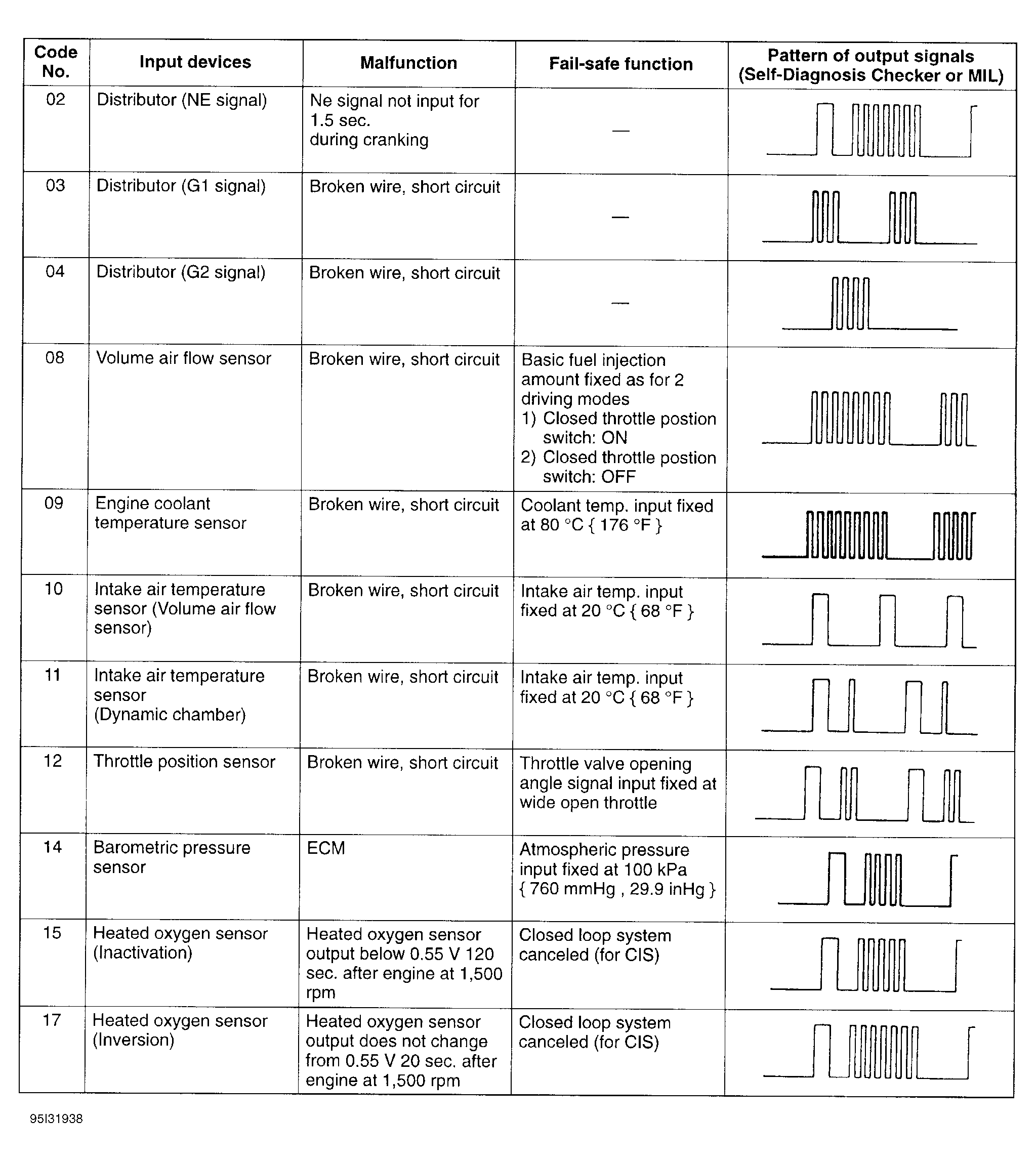

Fig 1: Trouble Code Identification Chart (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

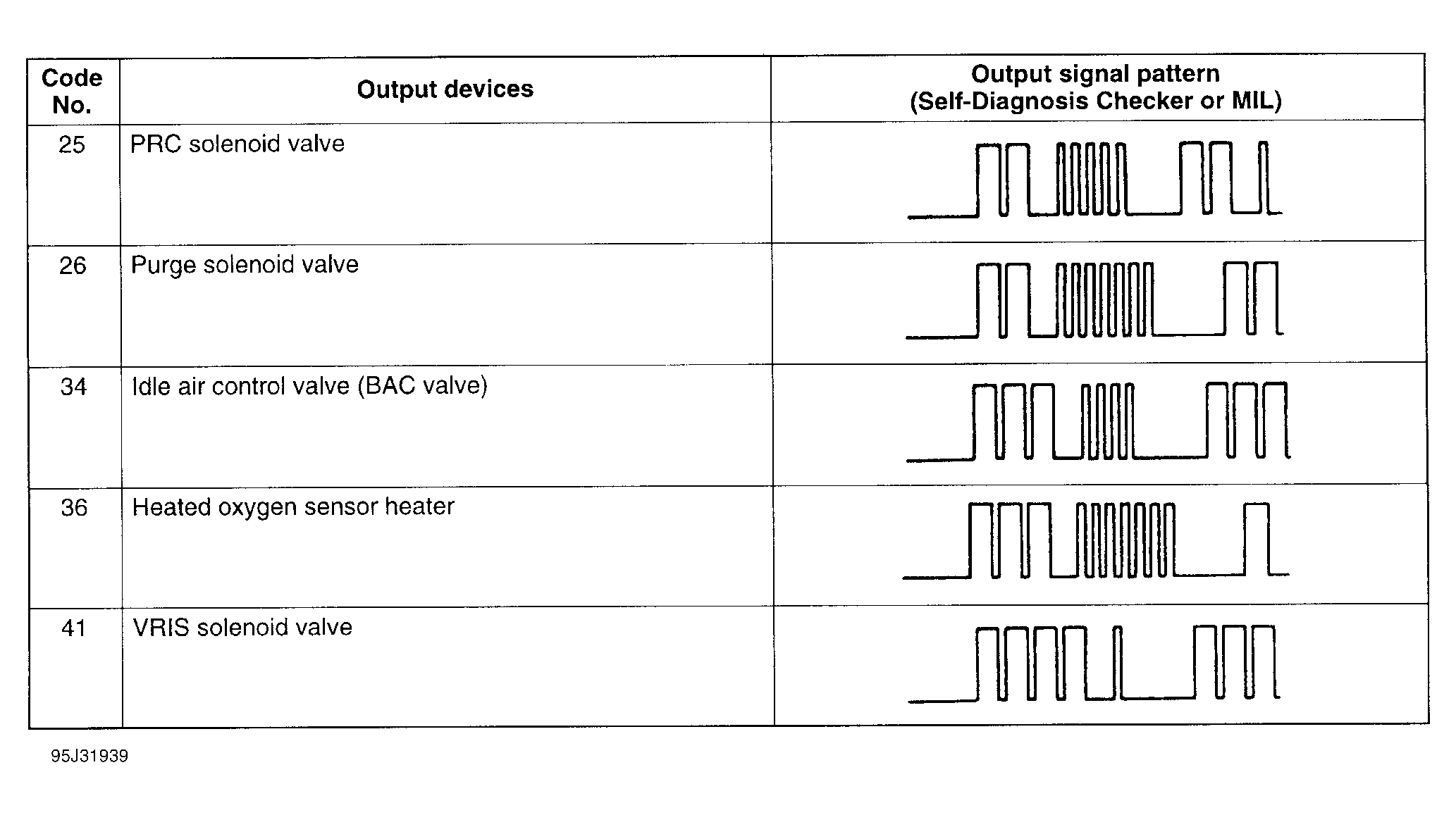

Fig 2: Trouble Code Identification Chart (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
