Power Mirror Switch

Disconnect power mirror switch connector (remove power mirror switch if necessary). See POWER MIRROR SWITCH  under REMOVAL & INSTALLATION. With power mirror switch in specified position, check continuity between specified terminals of the switch connector. SeeFig 1 . If continuity is not as specified, replace power mirror switch.

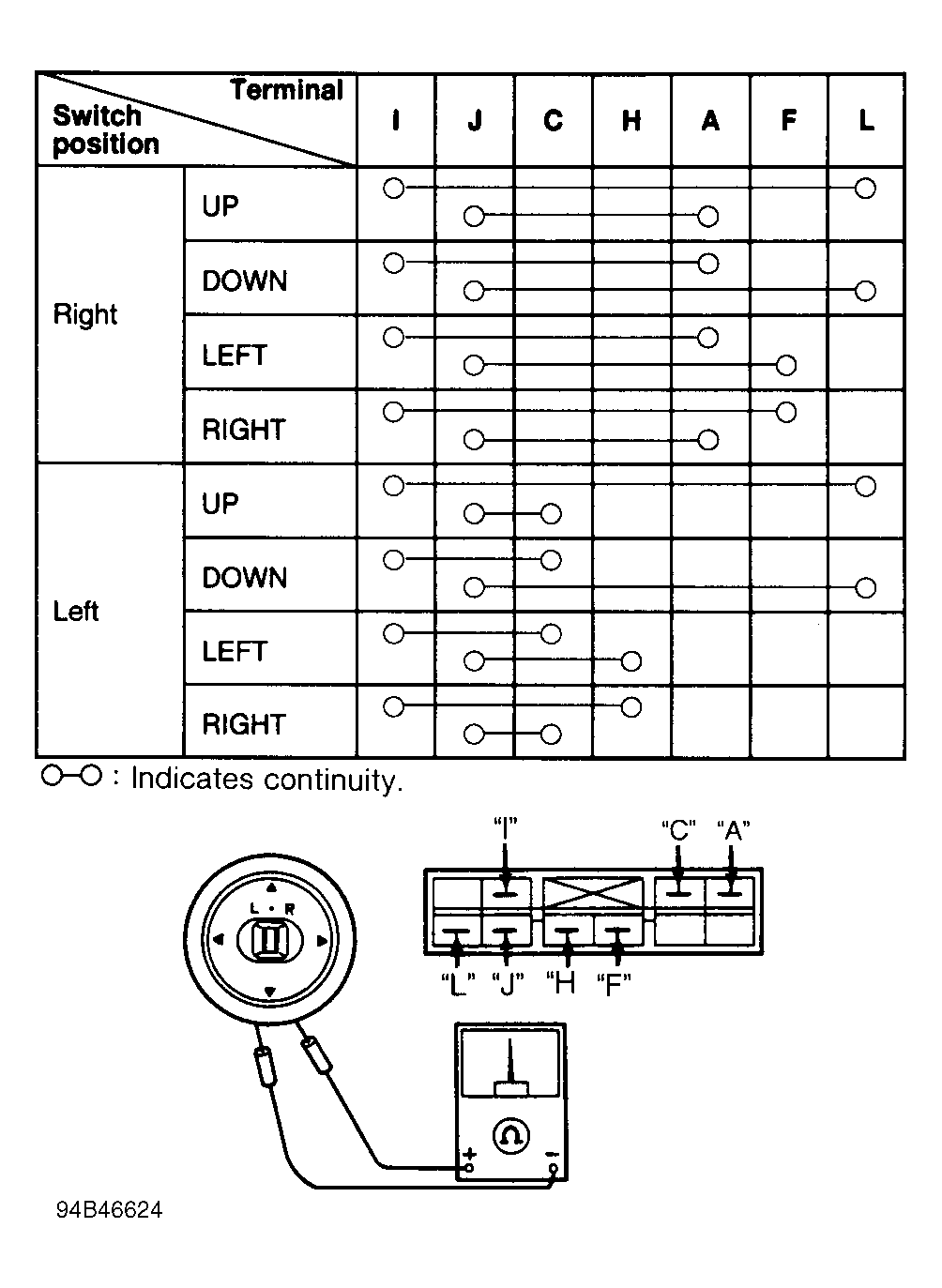

Fig 1: Testing Power Mirror Switch
G94B46624Courtesy of MAZDA MOTORS CORP.
