Main Switch

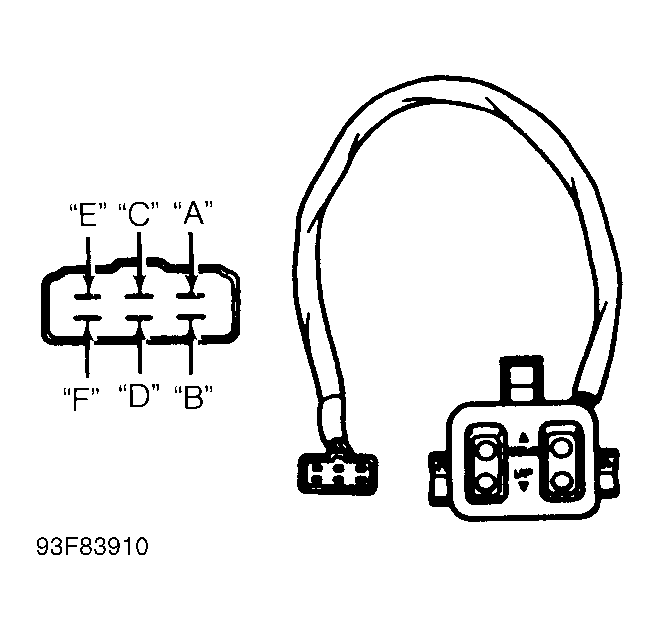

Check continuity across specified terminals of main switch connector with main switch button held in specified position. See appropriate MAIN SWITCH CONTINUITY TEST . SeeFig 1 . Replace main switch if continuity is not as specified.
MAIN SWITCH CONTINUITY TEST
| Switch Position | Terminals | |
|---|---|---|
| Driver | ||
| UP | A & D; B & C | |
| Off (Neutral) | B, C & D | |
| DOWN | A & C; B & D | |
| Passenger | ||
| UP | A & F; B & E | |
| Off (Neutral) | B, E & F | |
| DOWN | A & E; B & F | |
