Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|

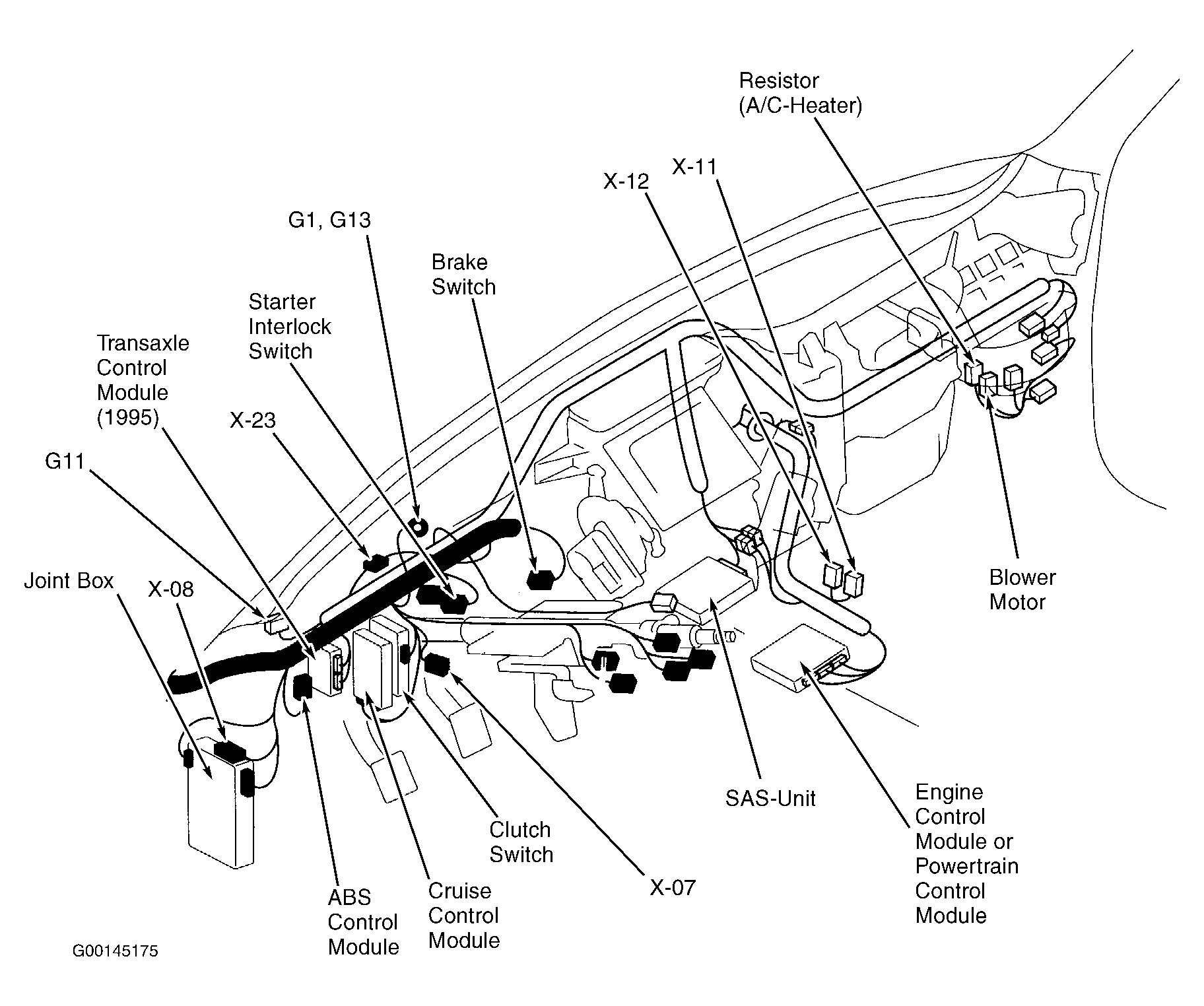

| ABS Control Module | Behind left side of dash. See Figure . |
| Central Processing Unit (CPU) | Behind left side of dash, on joint box. |
| Cruise Control Module | Behind left side of dash, near steering column. See Figure . |
| Daytime Running Lamp (DRL) Control Module (Canada) | Behind left side of dash, near joint box. |
| Engine Control Module | Under center of dash. See Figure . |
| Ignition Control Module (1995) | In left front corner of engine compartment. |
| Keyless Unit | In center front of trunk. |
| Powertrain Control Module | Under center of dash. See Figure . |
| SAS-Unit | Under center of dash. See Figure . |
| Theft-Deterrent Control Unit (1995) | Integral with central processing unit. |
| Transaxle Control Module (1995) | Behind left side of dash. See Figure . |
