Firing Order

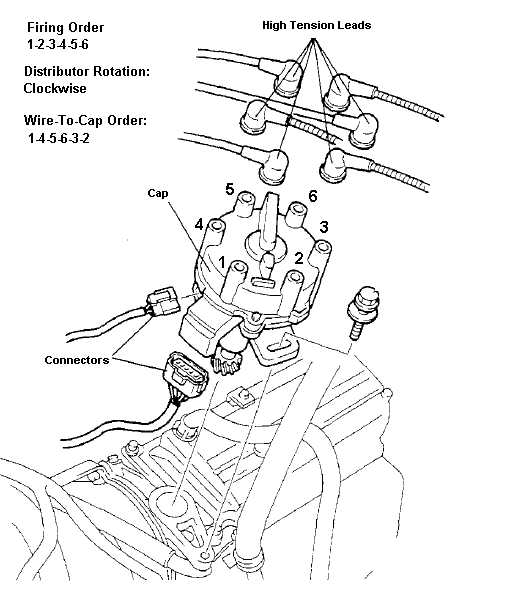

Fig 1: Firing Order & Distributor Rotation

G00491158

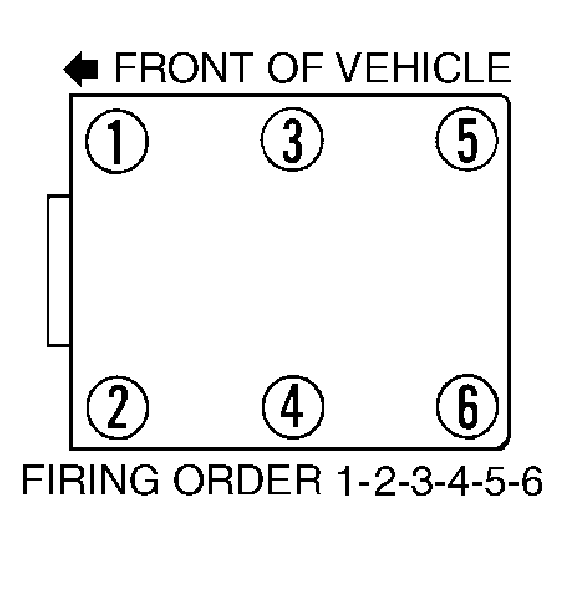

Fig 2: Cylinder Identification

G00491159
