Steering Column: Overhaul

NOTE: Use illustration for exploded view of steering columns. See Fig 1 or Fig 2 .
Fig 1: Exploded View Of Steering Column (1997)
G97B07752Courtesy of MAZDA MOTORS CORP.

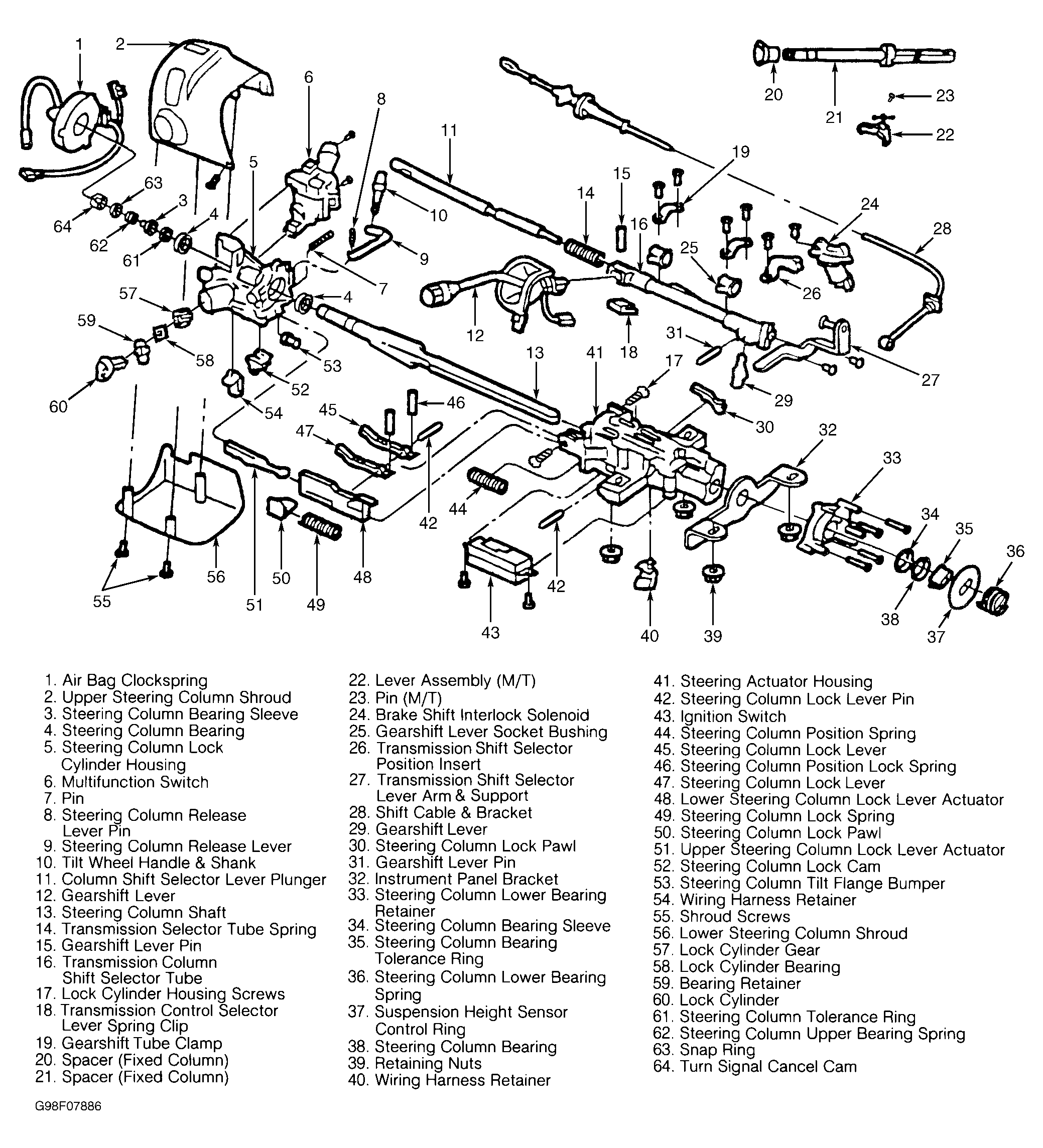

Fig 2: Exploded View Of Steering Column (1998)
G98F07886Courtesy of MAZDA MOTORS CORP.
