Main Switch

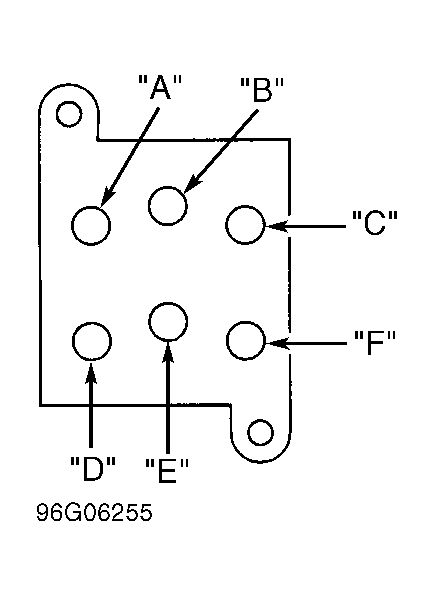

Disconnect main switch connector. Check for continuity between specified terminals of main switch with main switch button held in specified position. See MAIN SWITCH CONTINUITY TEST . SeeFig 1 . If continuity is not as specified, replace main switch.
MAIN SWITCH CONTINUITY TEST
| Switch Position | Terminals | |
|---|---|---|
| Driver | ||
| UP | A, D, E & F; B & C | |
| DOWN | A, C, D & E; B & F | |
| Off (Neutral) | A, C, D, E & F | |
| Passenger | ||
| UP | A & B; C, D, E & F | |
| DOWN | A, C, E & F; B & D | |
| Off (Neutral) | A, C, D, E & F | |
