Rectifier/Diode Assembly

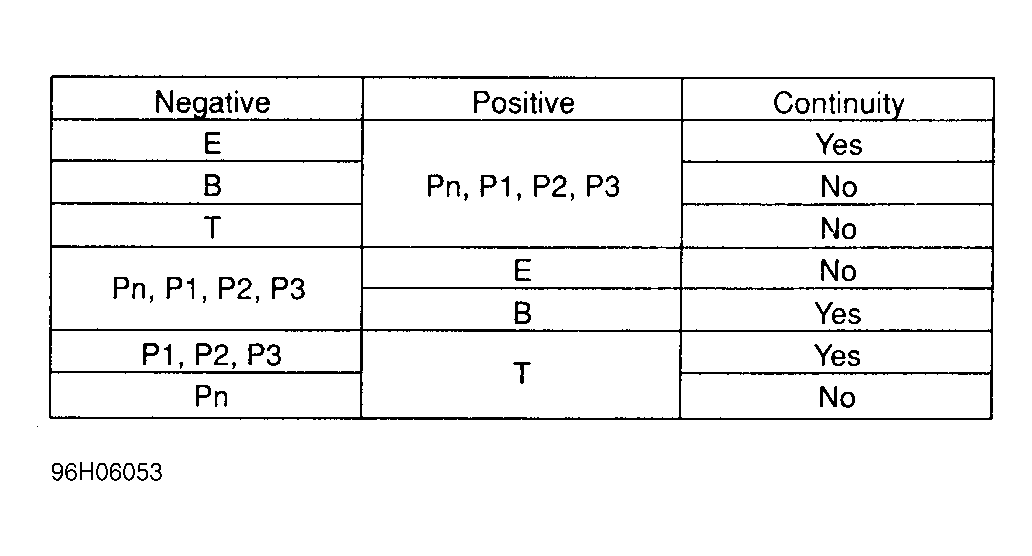

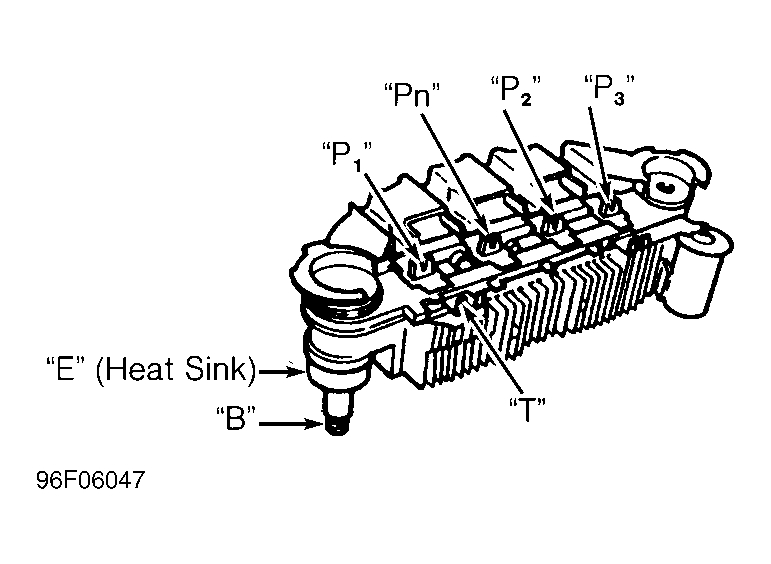

- Using an ohmmeter, check continuity of each diode in both directions (polarity). See Figure thru Figure . If diode shows high resistance in one direction and low resistance in other direction, diode is okay.
- If diode shows low resistance in both directions, diode is shorted. If diode shows high resistance in both directions, diode is open. If any diode is defective, replace rectifier assembly.
