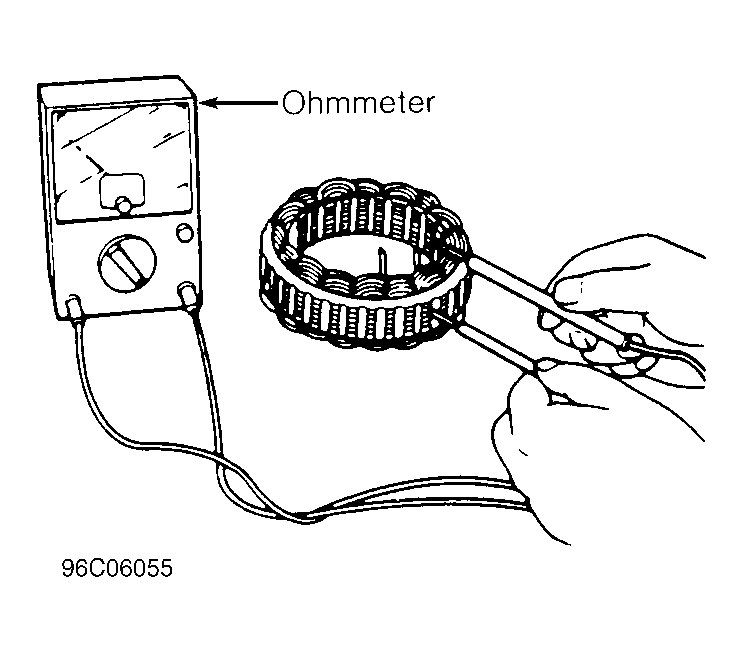

Check continuity between stator coil leads and stator core. See Figure thru Figure . If continuity exists, replace stator. Check continuity between leads of stator coil. If continuity does not exist, replace stator.
