Abs Control Module

ABS control module is located behind left side of instrument panel. Unless indicated otherwise, test with ignition on and ABS control module connector connected. Check voltage between ground and applicable terminal of ABS control module connector. If voltage is not as specified, check appropriate component listed under INSPECTION POINT. See Fig 1 -10. If components are okay, replace ABS control module.

Fig 1: Testing ABS Control Module Without Traction Control System (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

Fig 2: Testing ABS Control Module Without Traction Control System (2 Of 2)

Courtesy of MAZDA MOTORS CORP.

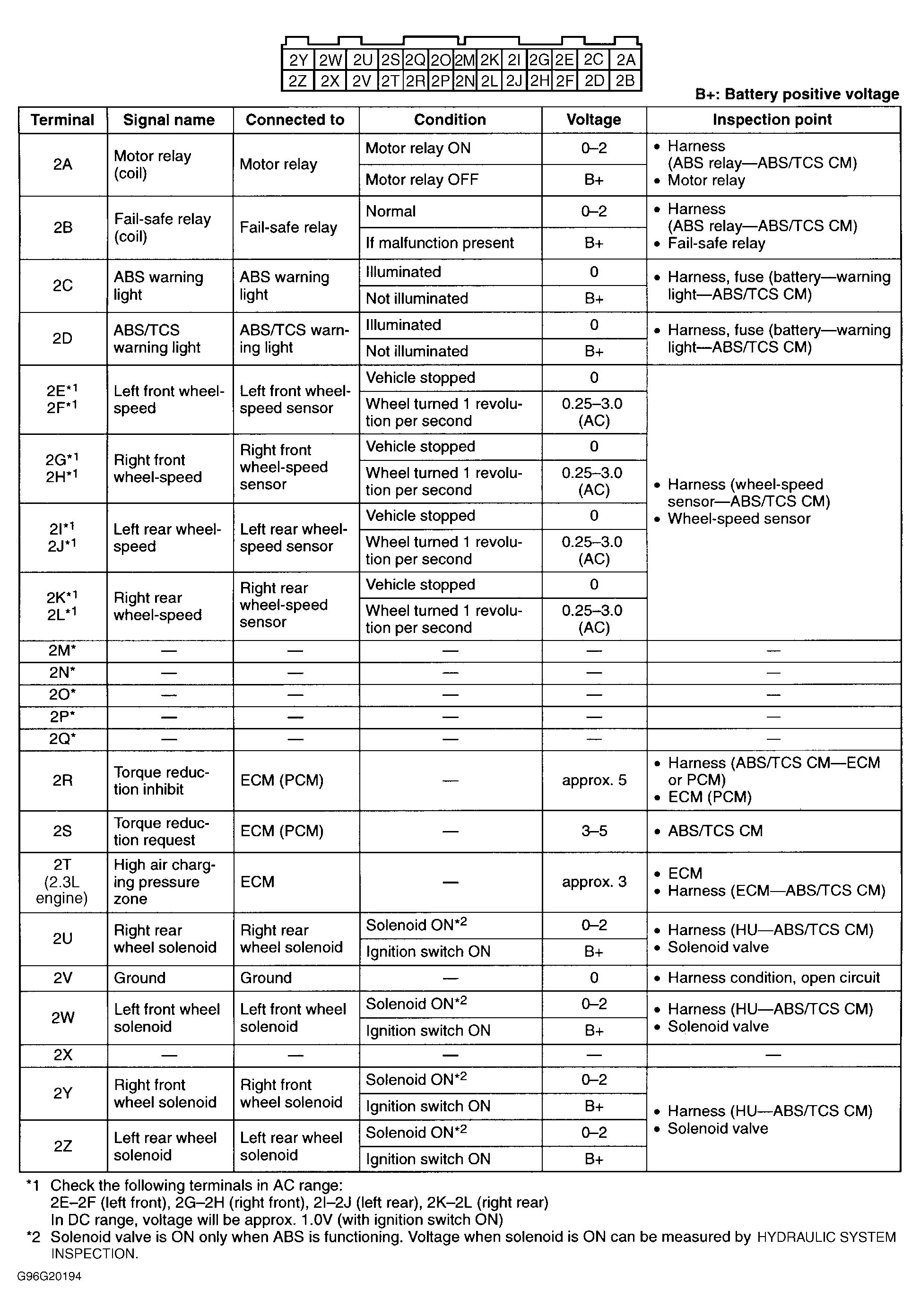

Fig 3: Testing ABS Control Module With Traction Control System (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

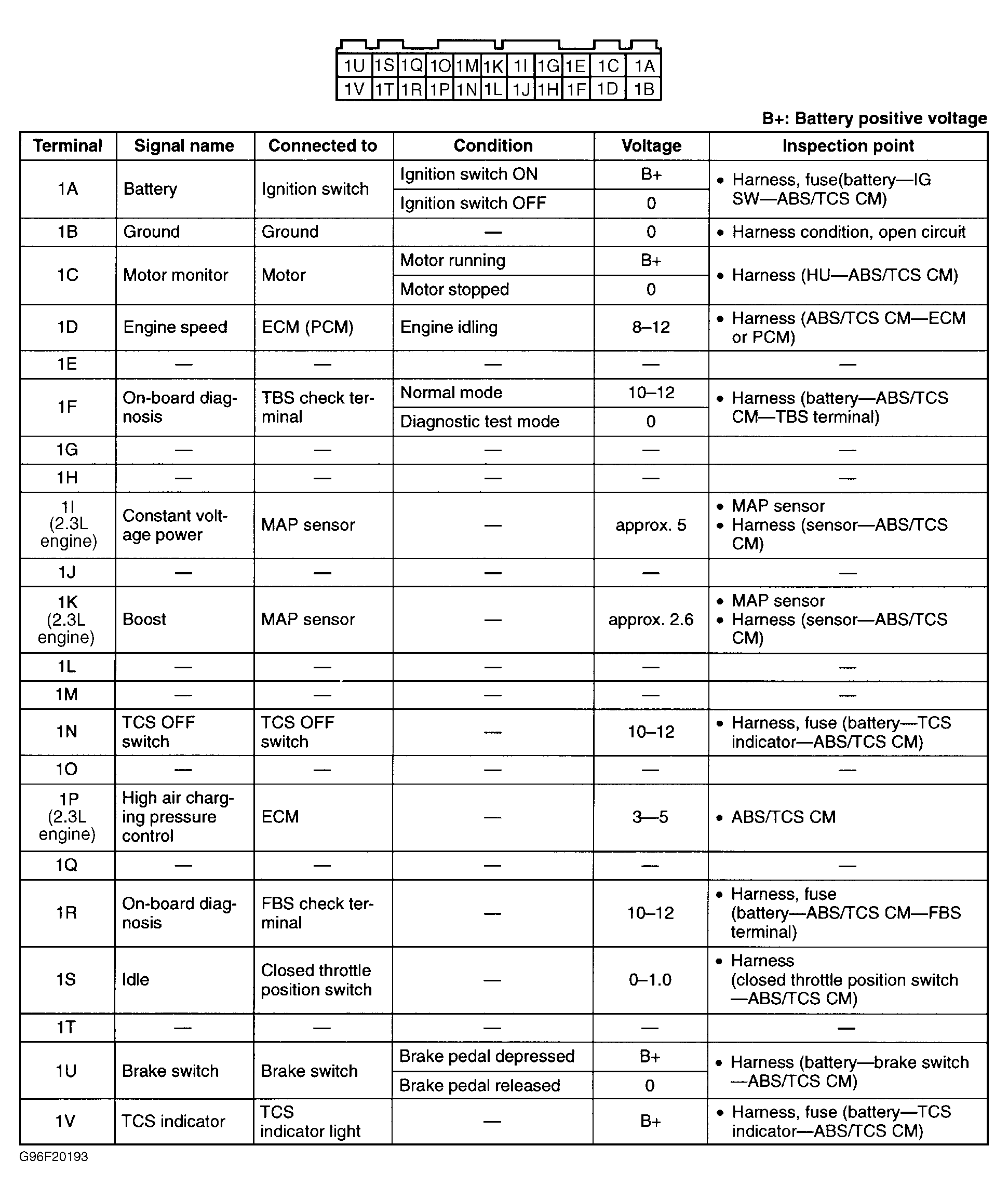

Fig 4: Testing ABS Control Module With Traction Control System (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
