Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

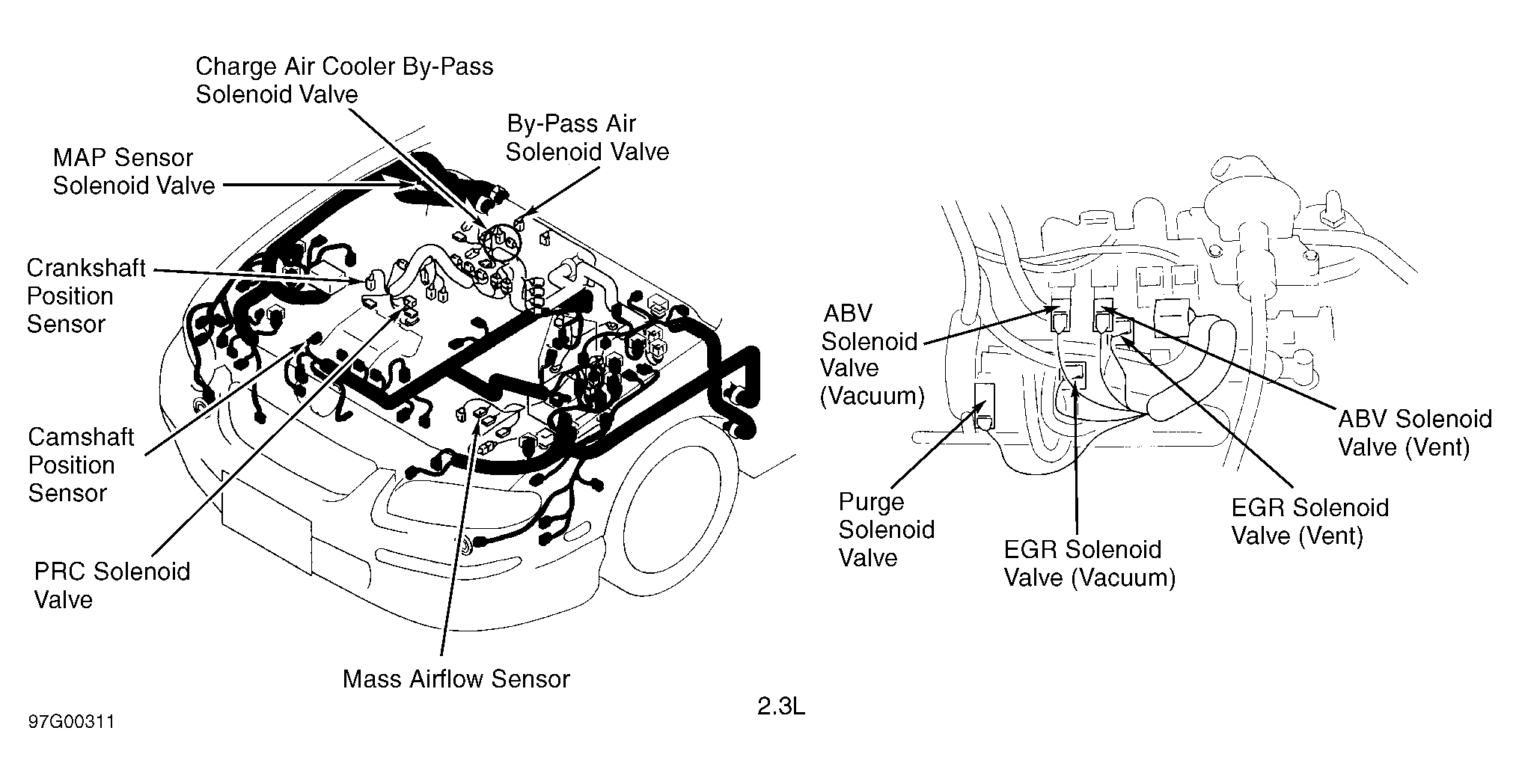

Fig 1: Engine Compartment (2.3L)

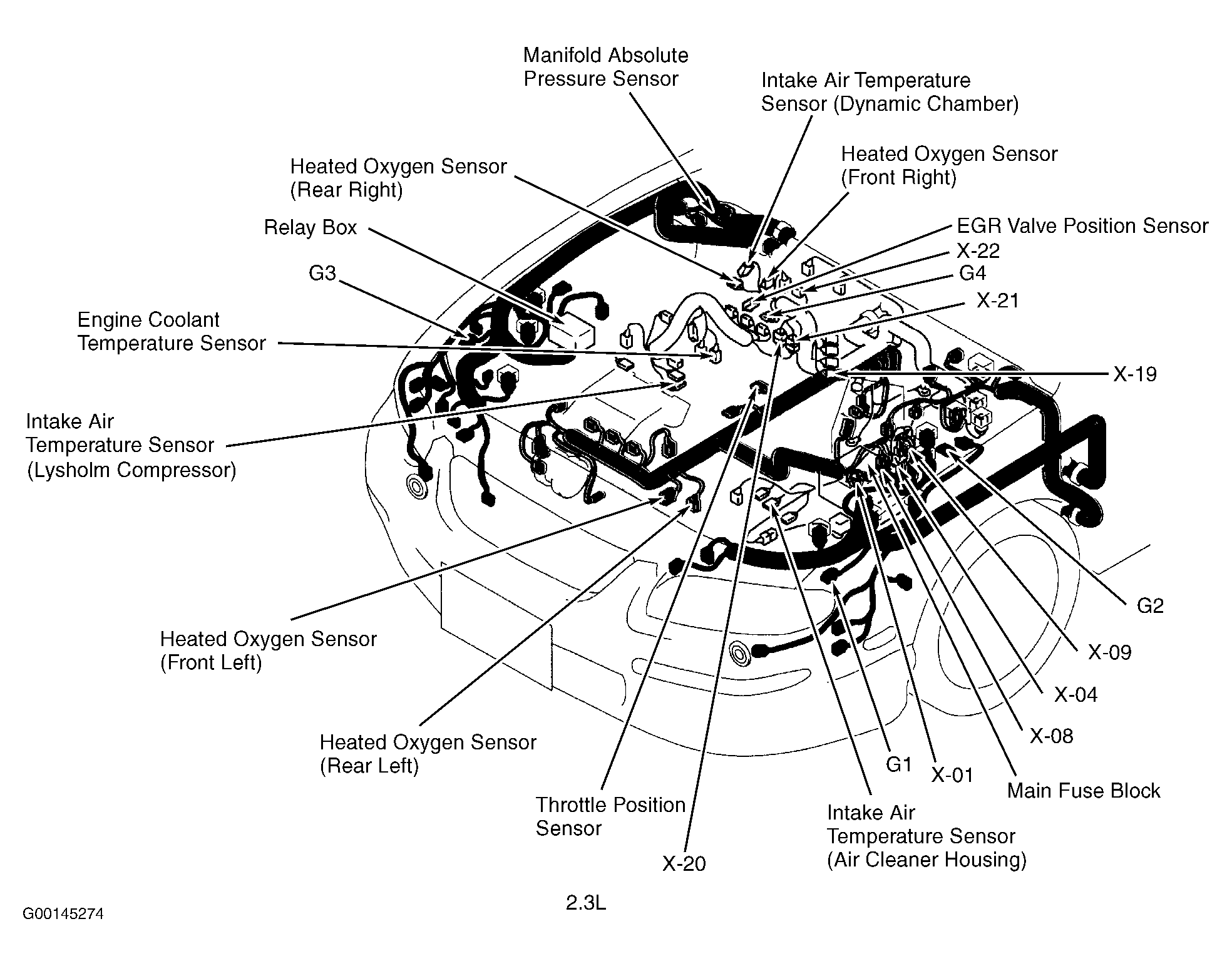

Fig 2: Engine Compartment (2.3L)

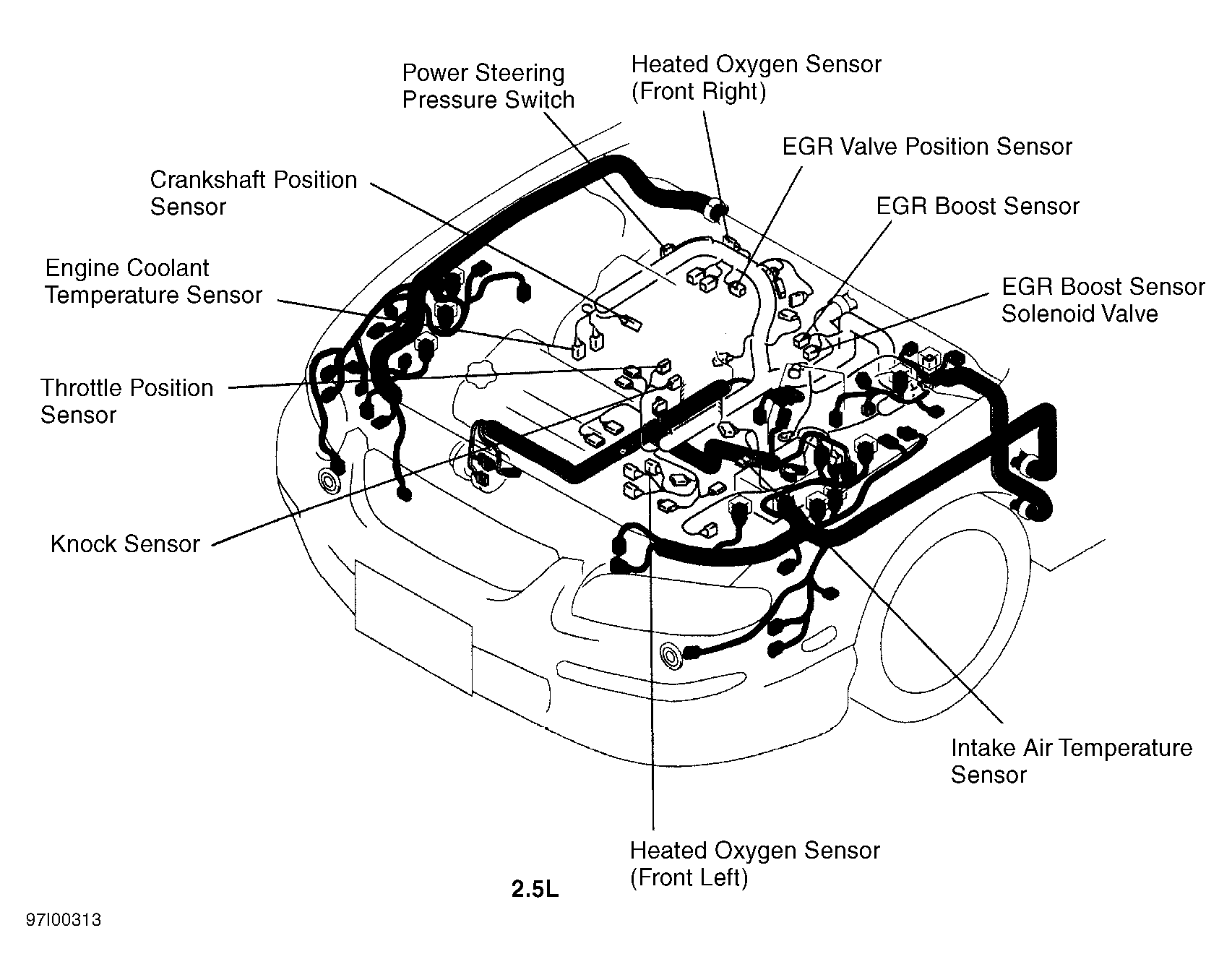

Fig 3: Engine Compartment (2.5L)

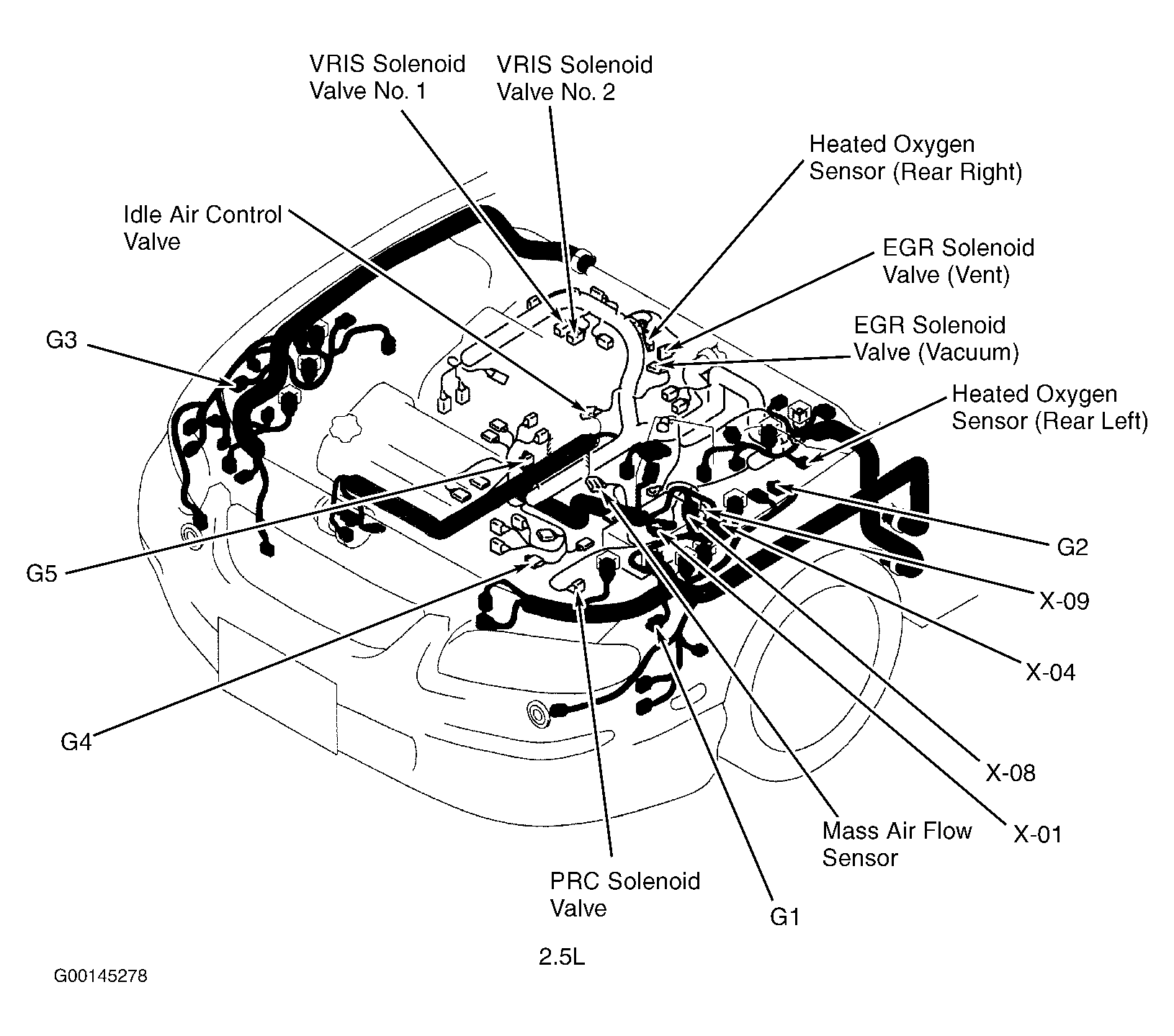

Fig 4: Engine Compartment (2.5L)

Fig 5: Dash

Fig 6: Overview Of Vehicle
