Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| ABS/TCS Control Module | On left side of engine compartment. |

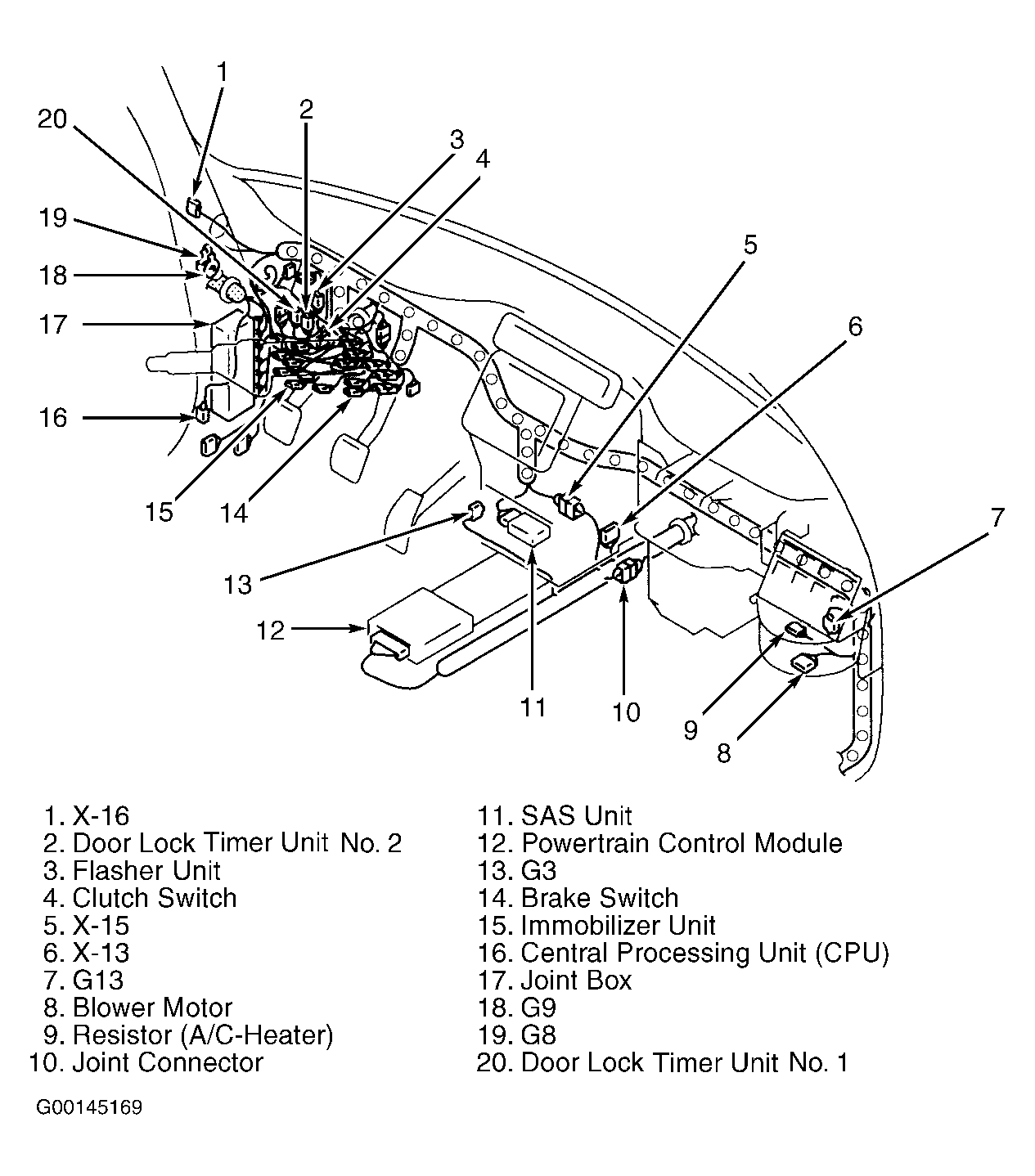

| Central Processing Unit (CPU) | Behind left side of dash, on joint box. See Figure . |
| Cruise Actuator | On left front inner fender panel. |
| Immobilizer Unit | Behind left side of dash, near joint box. See Figure . |
| Keyless Unit | In left front of trunk. |
| Powertrain Control Module | Under center console. See Figure . |
| SAS Unit | Under center of dash. See Figure . |
| Sun Roof Control Module | Above headliner, forward of sun roof opening. |
