Component Locations

COMPONENT LOCATIONS

Component

Location

Battery Saver Relay

⁽¹⁾⁽²⁾ In Relay Box

Generic Electronic Module (GEM)

⁽¹⁾ Behind Center Of Instrument Panel

Instrument Panel Fuse Box

⁽¹⁾ Above Driver's Kick Panel

Master Window Control Switch

On Driver's Door Panel

One-Touch Down Relay

⁽¹⁾⁽²⁾ In Relay box

Passenger's Window Switch

On Passenger's Door Panel

Power Distribution Box

Left Rear Corner Of Engine Compartment

Power Window Motors

Behind Appropriate Door Panel

Power Window Relay

⁽¹⁾ Behind Glove Box

Relay Box

⁽¹⁾ Behind Center Of Instrument Panel

⁽¹⁾	See Fig 1 .

⁽²⁾	See Fig 2 .

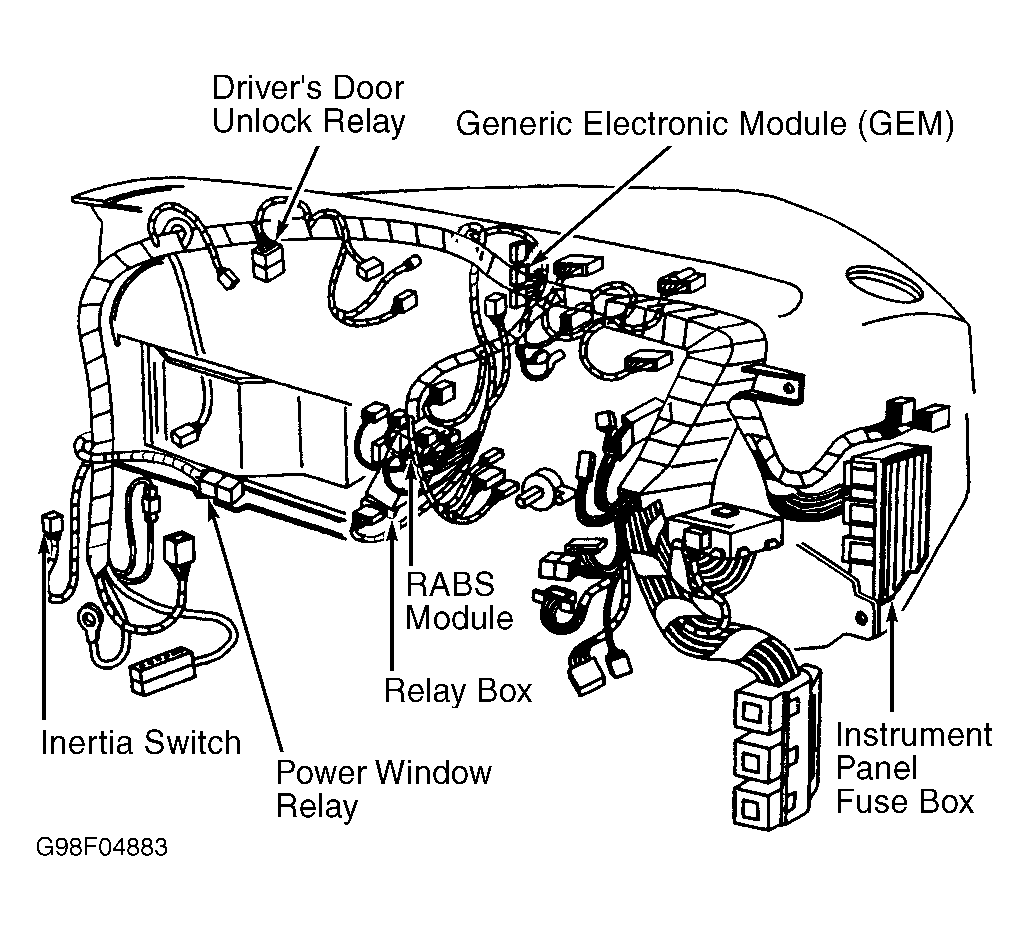

Fig 1: Locating Power Window Components

G98F04883

Courtesy of MAZDA MOTORS CORP.

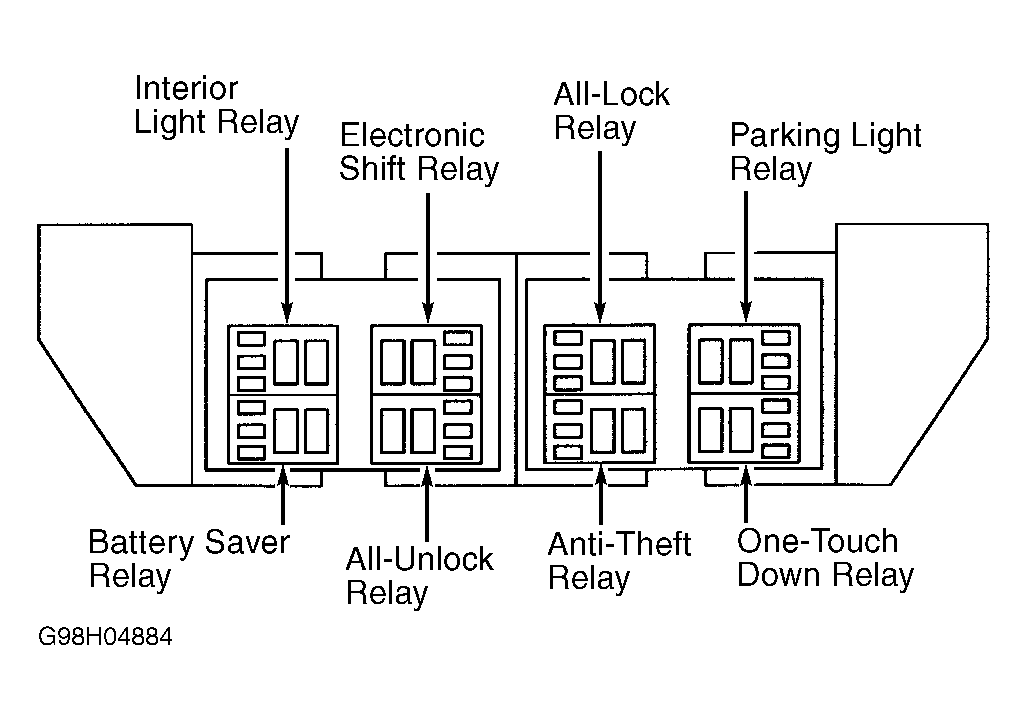

Fig 2: Identifying Relays In Relay Box

G98H04884

Courtesy of MAZDA MOTORS CORP.
