CONTROL UNITS LOCATION
| Component | Location |
|---|---|

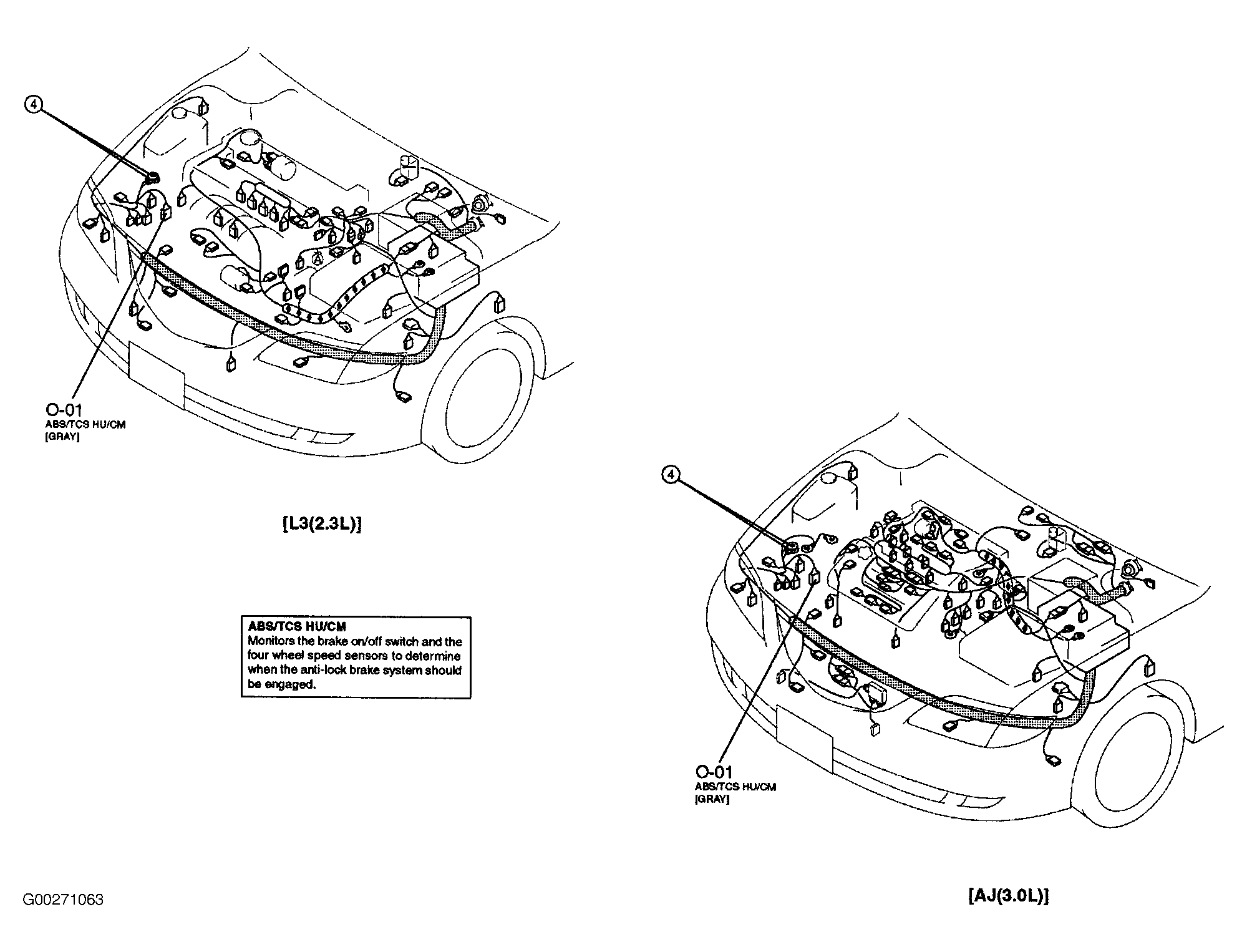

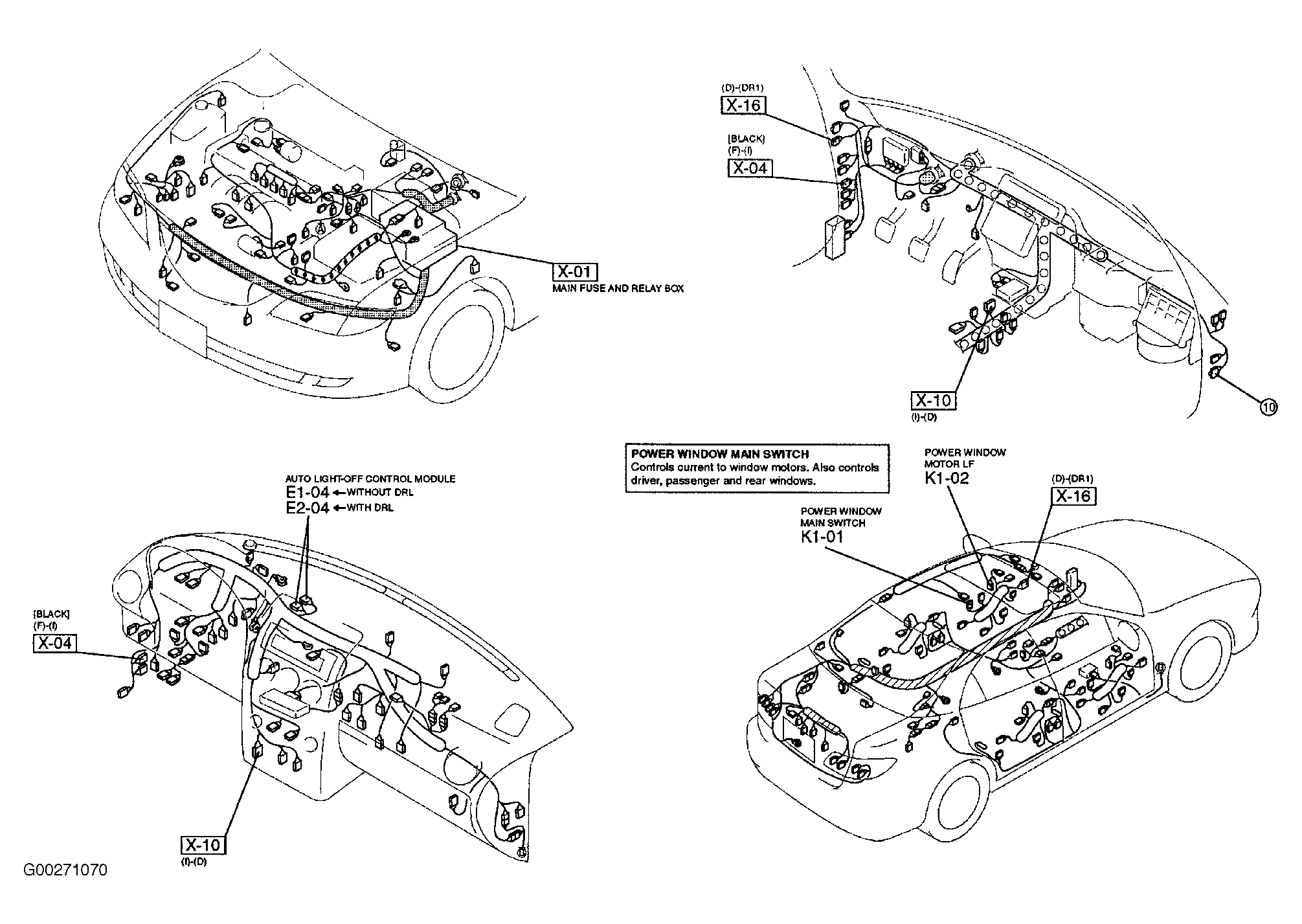

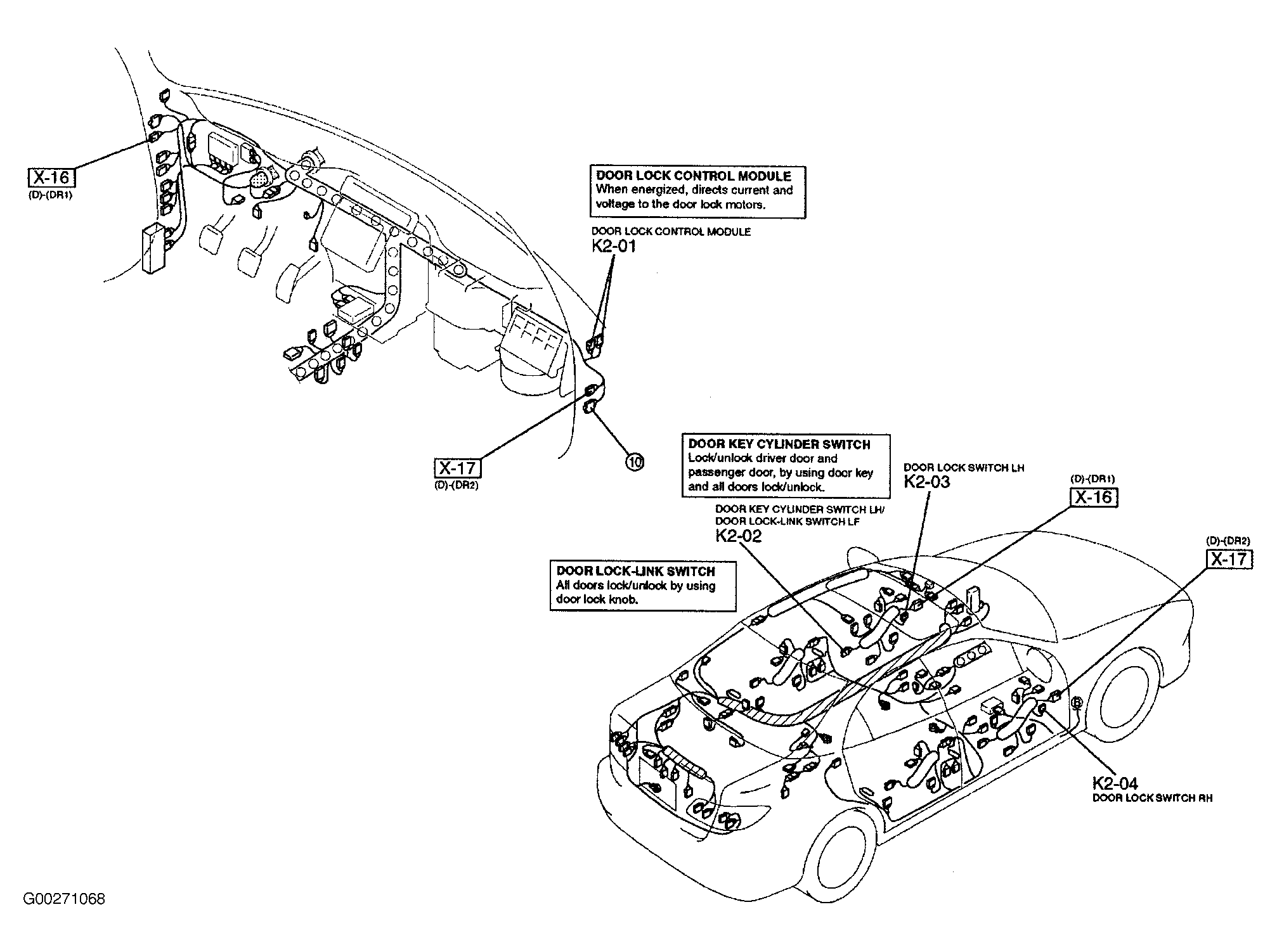

| ABS/TCS HU/CM (2.3L) | At right front corner of engine compartment. See Figure. |
| ABS/TCS HU/CM (3.0L) | At right front corner of engine compartment. See Figure. |
| Auto Light-Off Control Module | Behind left side of dash. See Figure. |
| Door Lock Control Module | Behind right side of dash. See Figure. |
| Driver-Side Air Bag Module | In steering wheel. See Figure. |
| Driver-Side Curtain Air Bag Module | Behind seat back corner, above left rear wheelwell. See Figure. |
| Driver-Side Side Air Bag Module | At left side of left front seat back. See Figure. |

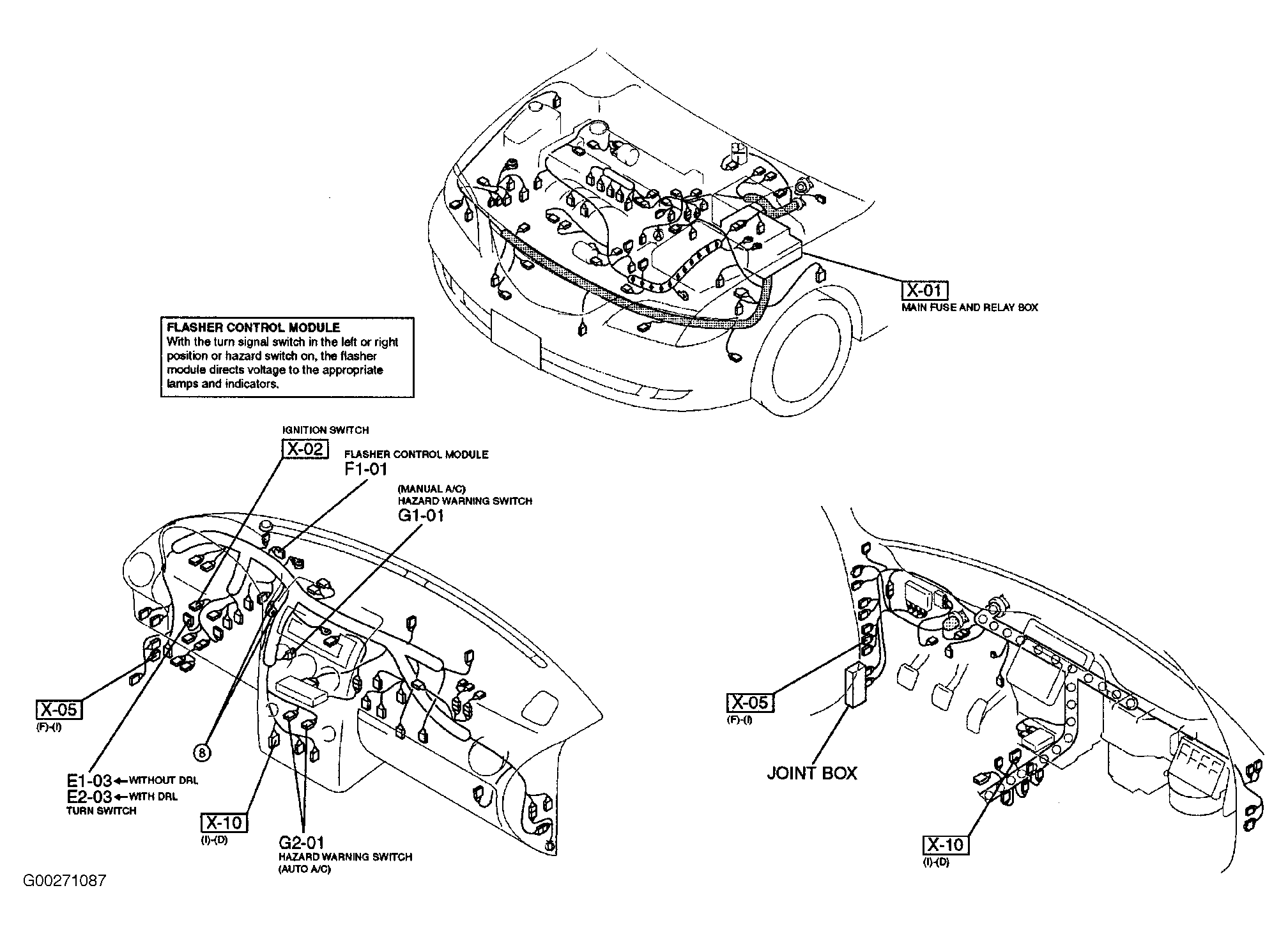

| Flasher Control Module | Behind left side of dash. See Figure. |
| Passenger-Side Air Bag Module | Behind right side of dash. See Figure. |
| Passenger-Side Curtain Air Bag Module | Behind seat back corner, above right rear wheelwell. See Figure. |
| Passenger-Side Side Air Bag Module | At right side of right front seat back. See Figure. |

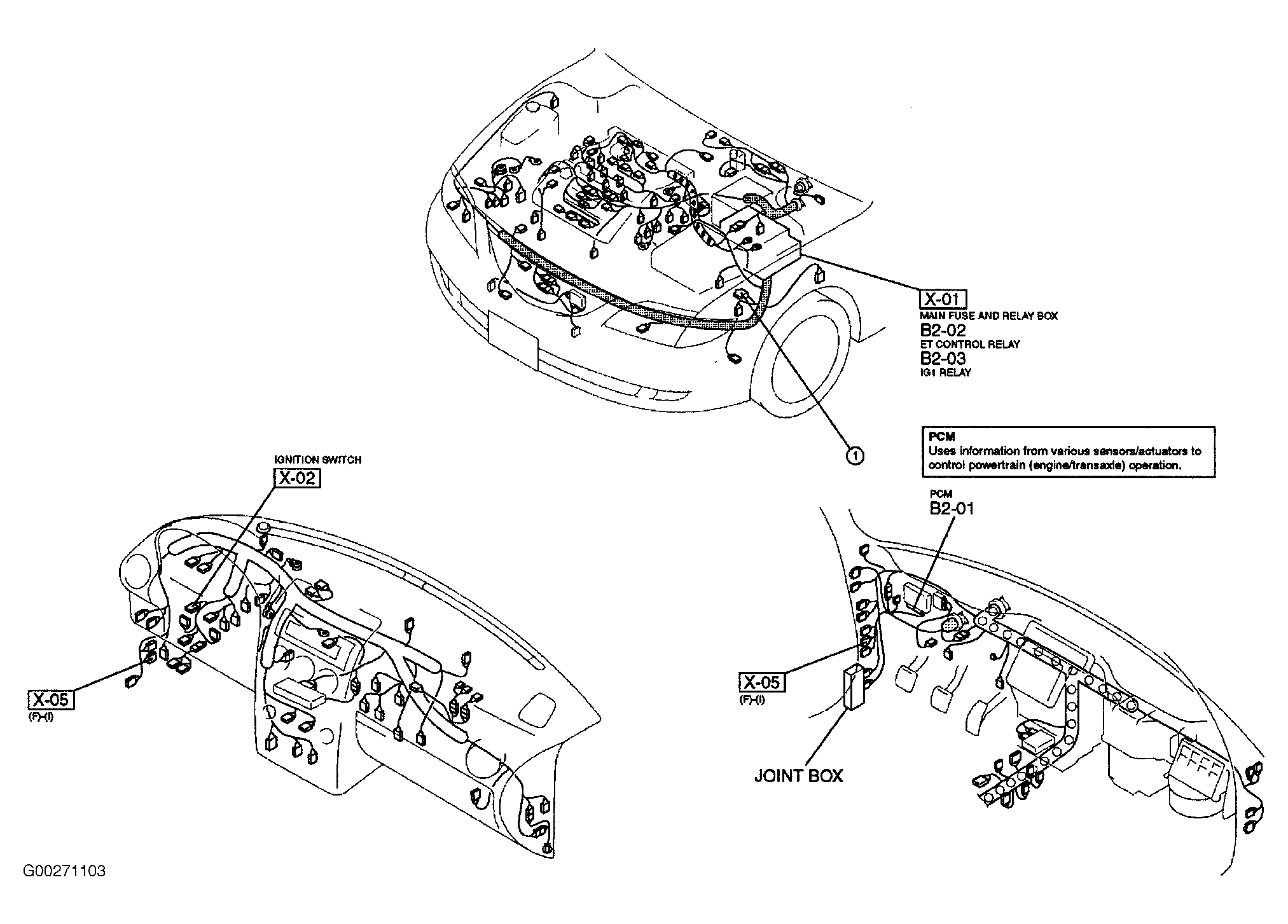

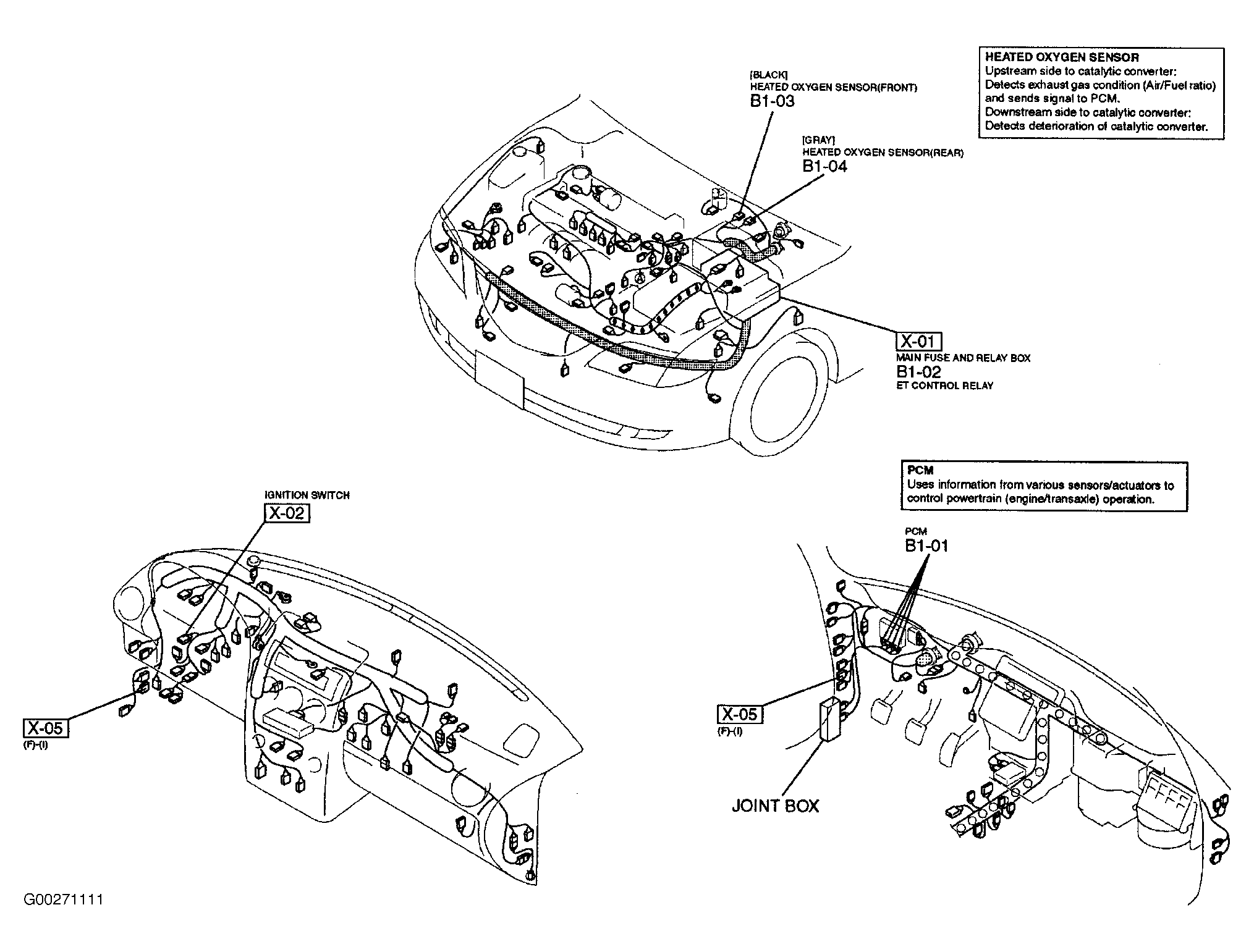

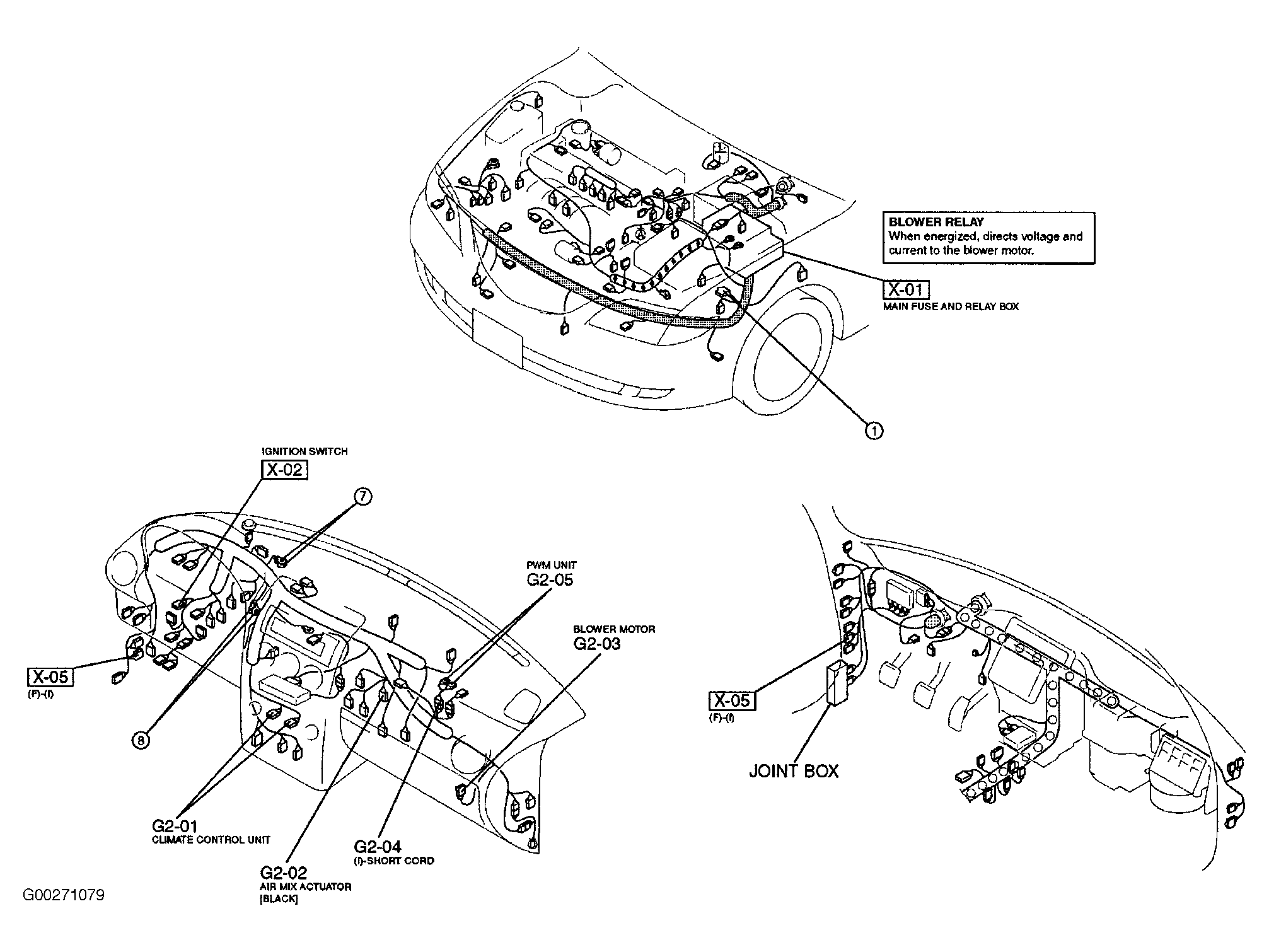

| PCM (2.3L) | Behind left side of dash. See Figure. |
| PCM (3.0L) | Behind left side of dash. See Figure. |
| PWM Unit | Behind right side of dash. See Figure. |

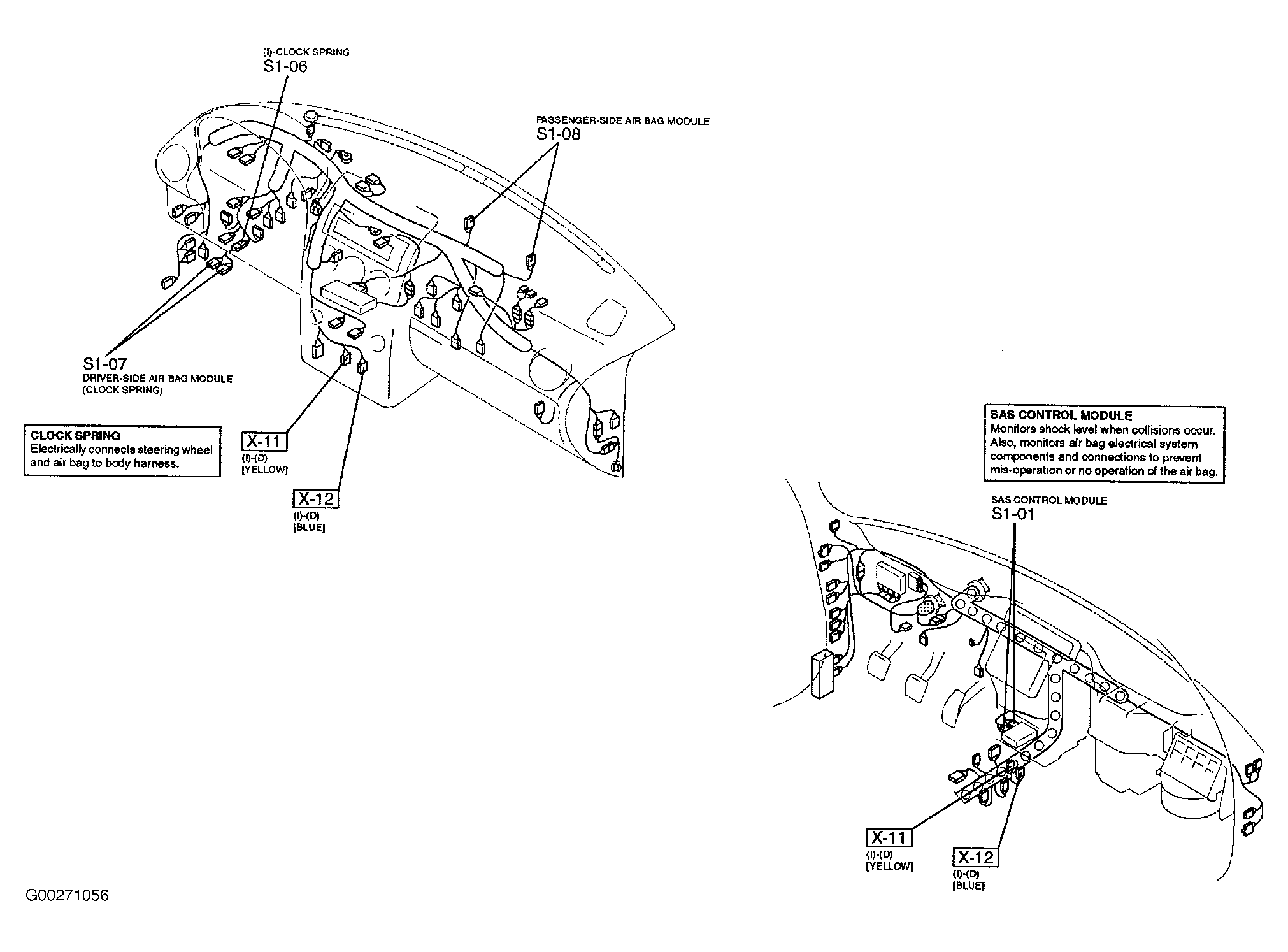

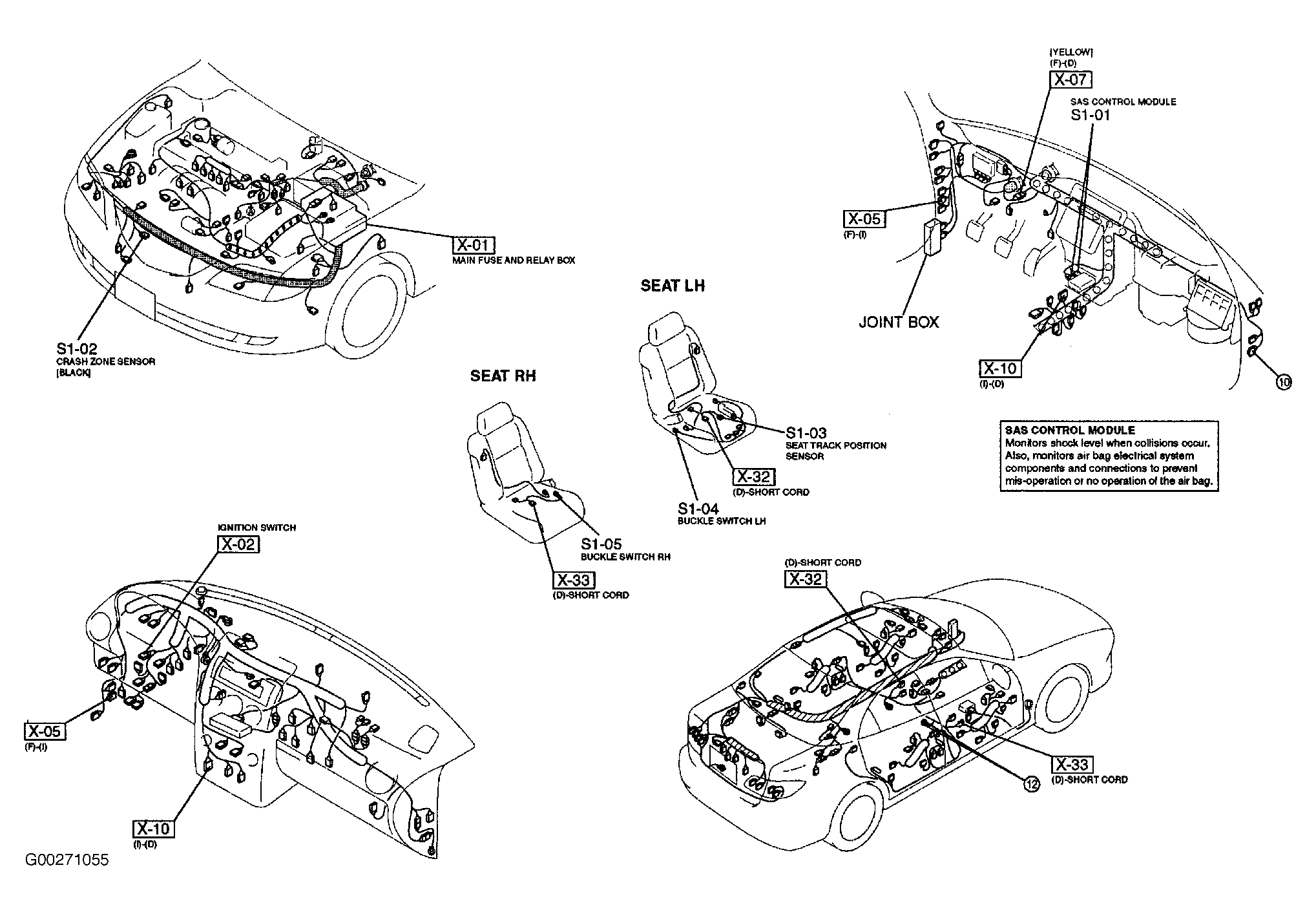

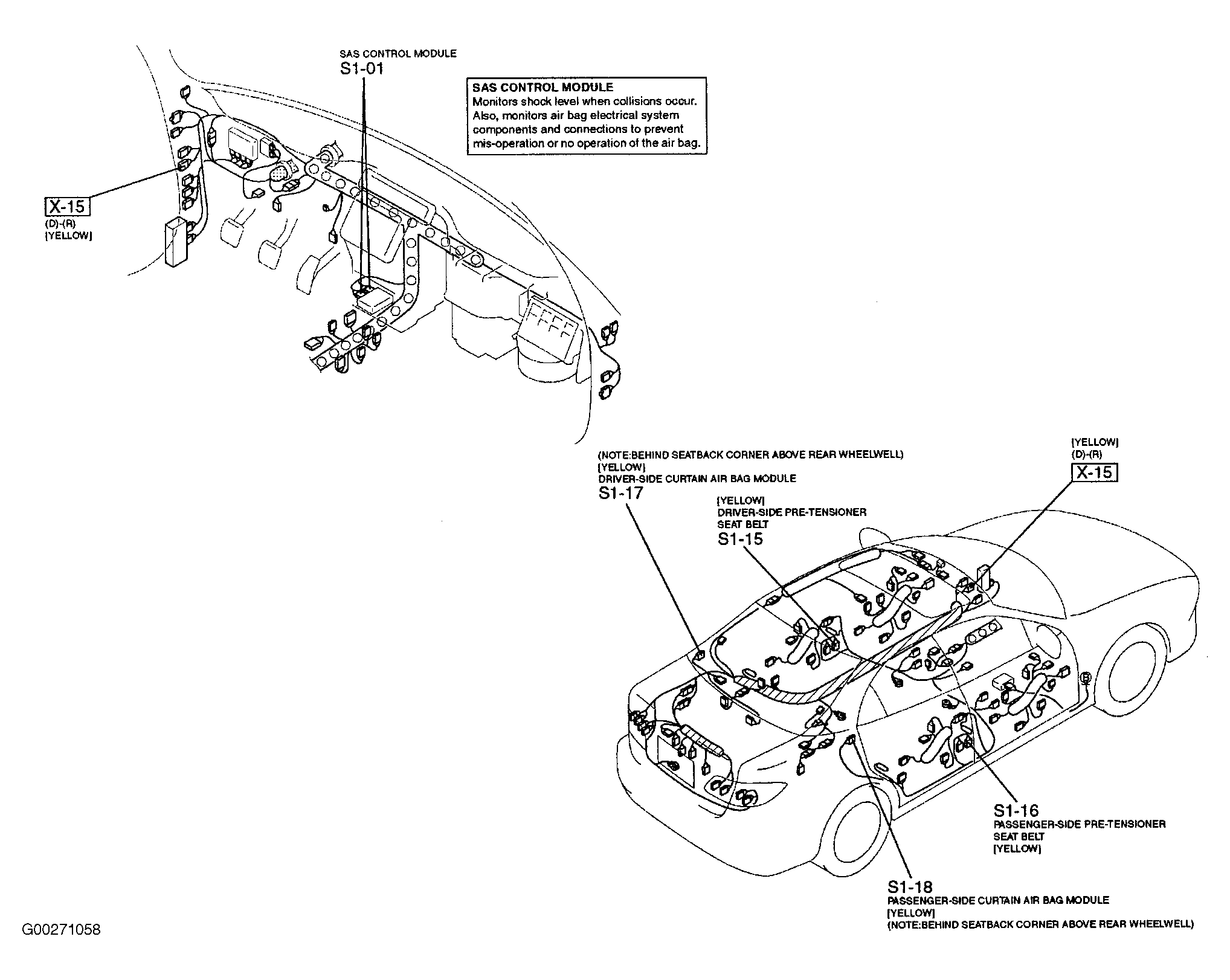

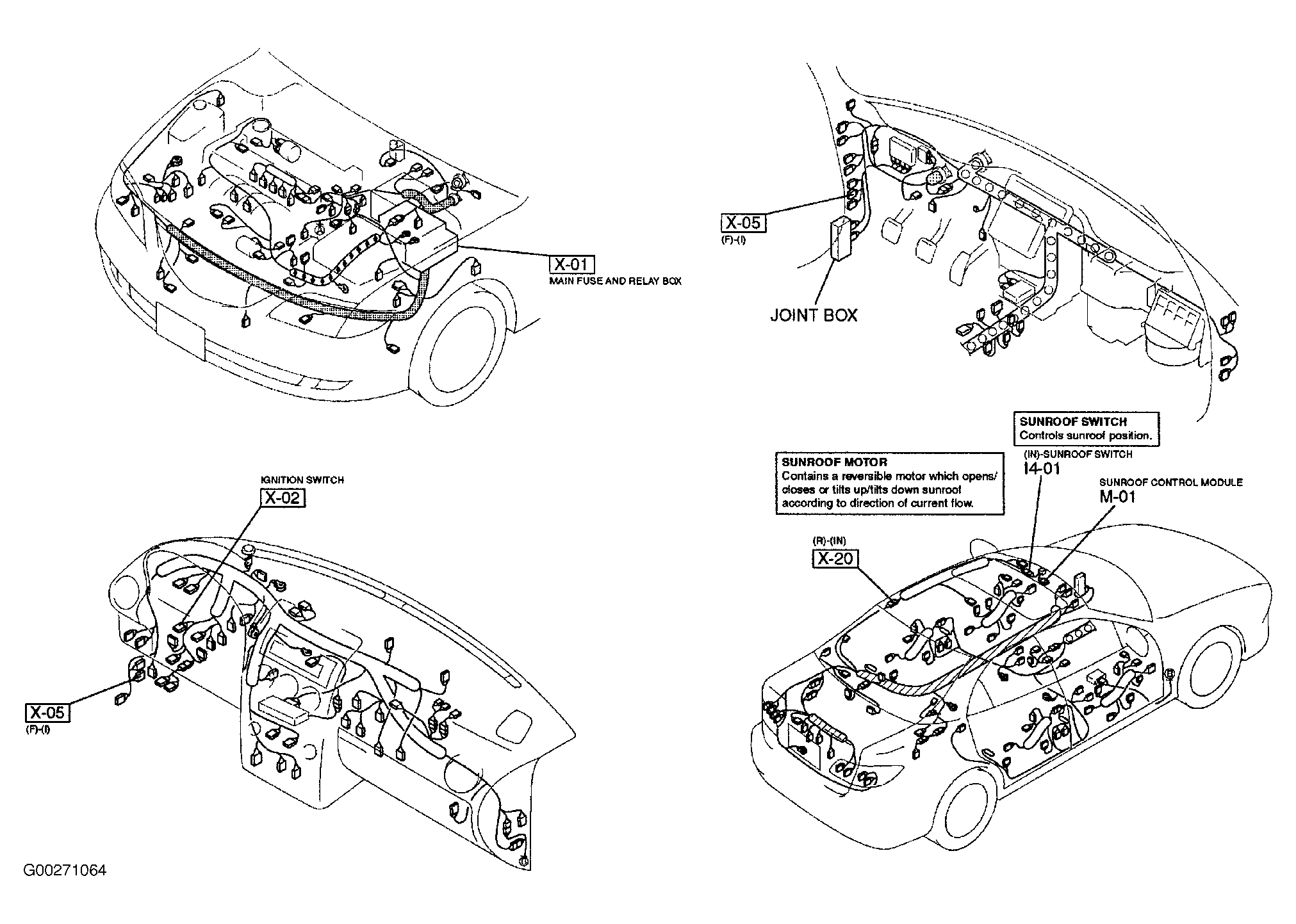

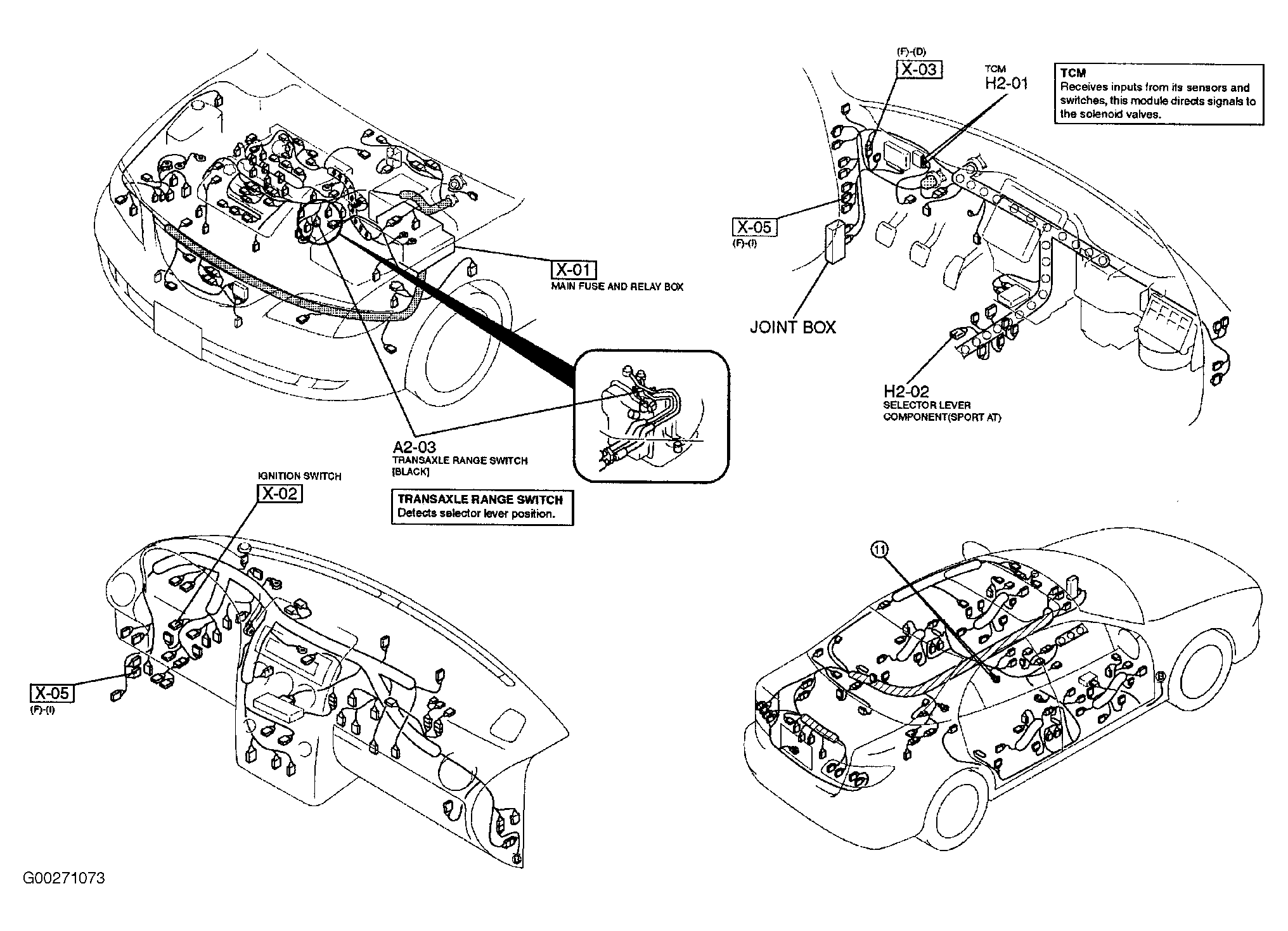

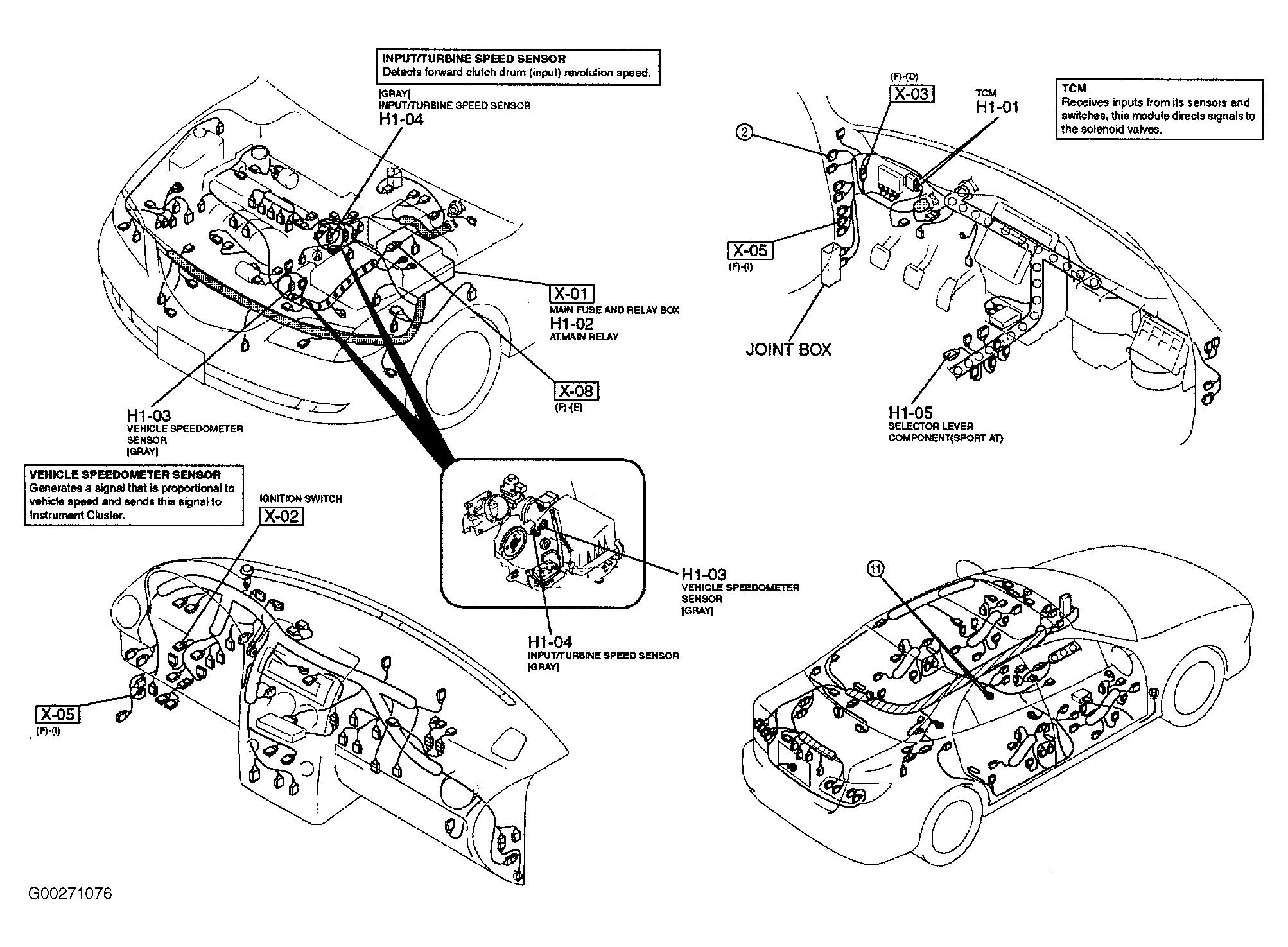

| SAS Control Module | Behind lower center of dash. See Figure. |
| Sunroof Control Module | At center front of roof. See Figure. |
| TCM (2.3L) | Behind left side of dash. See Figure. |
| TCM (3.0L) | Behind left side of dash. See Figure. |

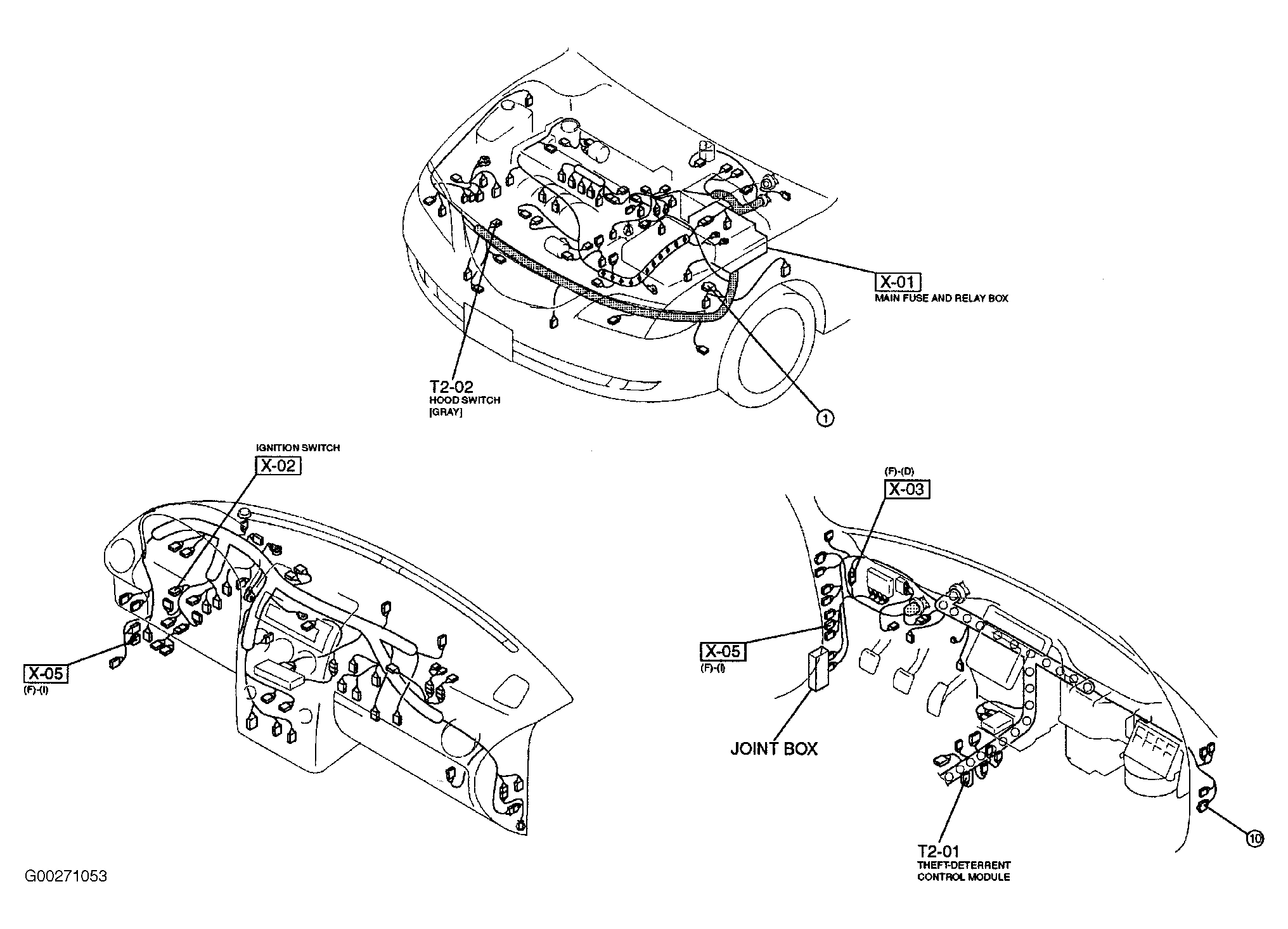

| Theft-Deterrent Control Module | Under front of center console. See Figure. |
