Combination Switch Removal/Installation

WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the driver-side air bag module. See AIR BAG RESTRAINT SYSTEMS .
  3. Remove the steering wheel. See STEERING WHEEL .
  4. Remove the column cover. See COLUMN COVER .
  5. Remove the clock spring. See CLOCKSPRING .
  6. Remove in the order indicated in the illustration.

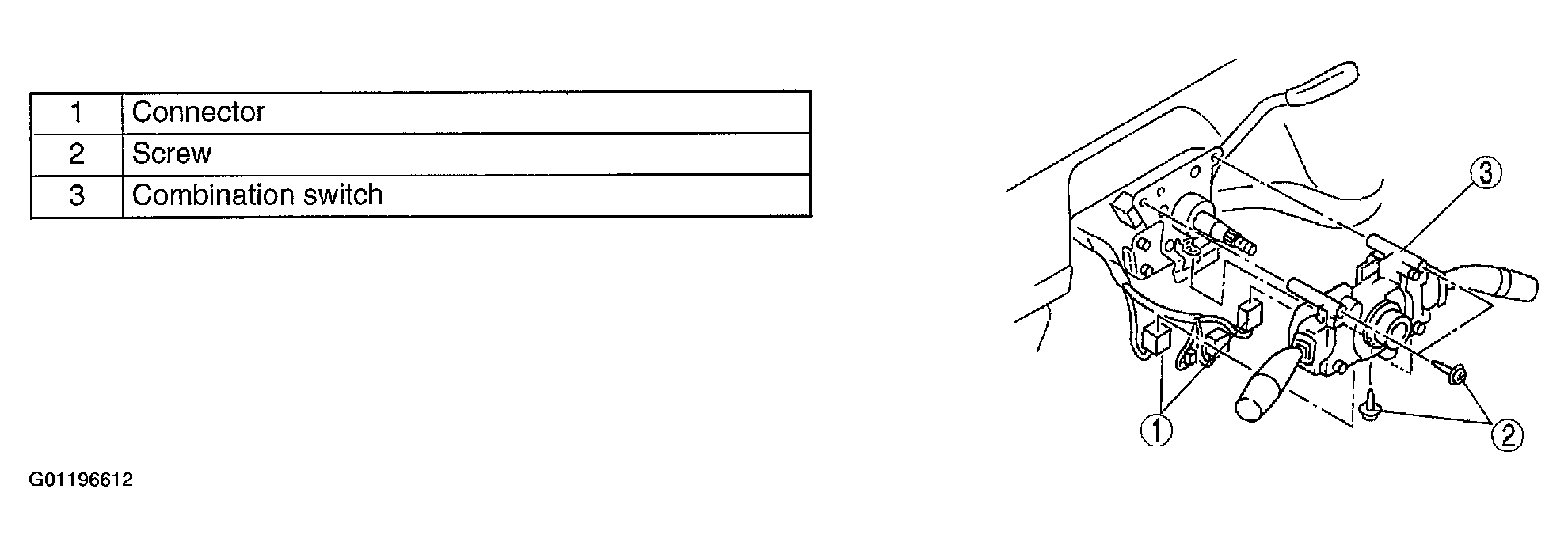

    Fig 1: Removing Combination Switch
    G01196612Courtesy of MAZDA MOTORS CORP.
  7. Install in the reverse order of removal.
