Hazard Warning Switch Removal/Installation: Notes

WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the meter hood. See METER HOOD REMOVAL/INSTALLATION .
  3. Remove in the order indicated in the illustration.
  4. Install in the reverse order of removal.

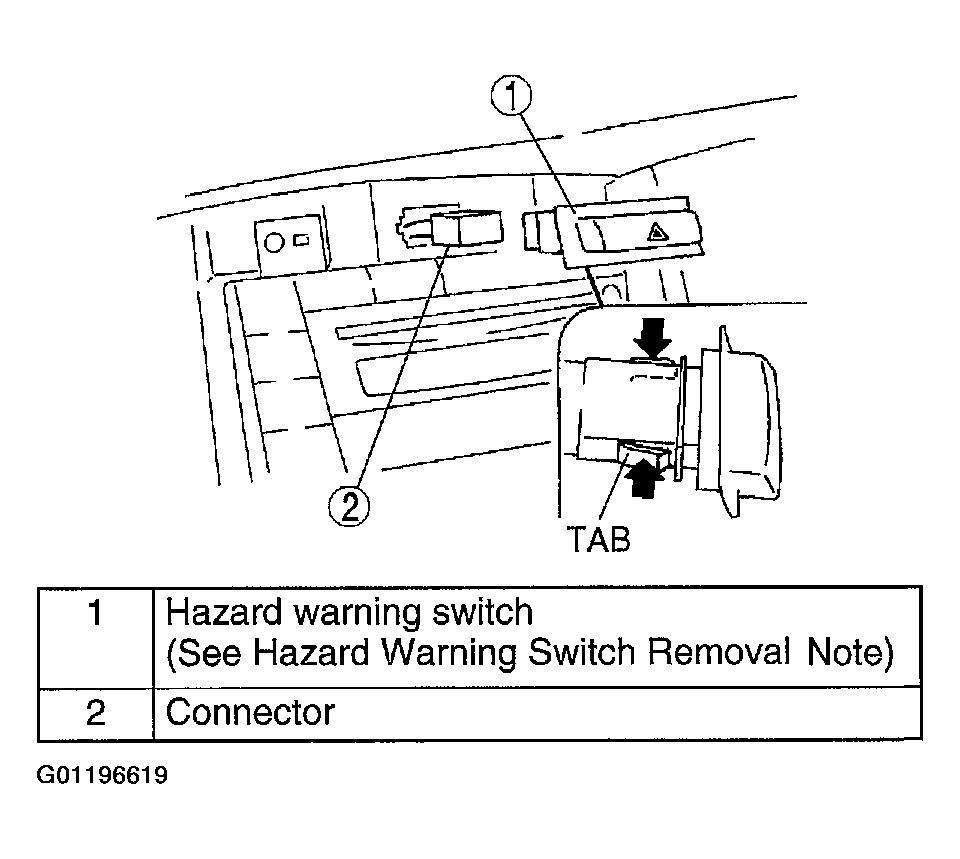

Fig 1: Removing Hazard Warning Switch
G01196619Courtesy of MAZDA MOTORS CORP.
