Lens Removal Note

WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Push the hooks of the lens using a tape-wrapped flathead screwdriver, and remove the lens.

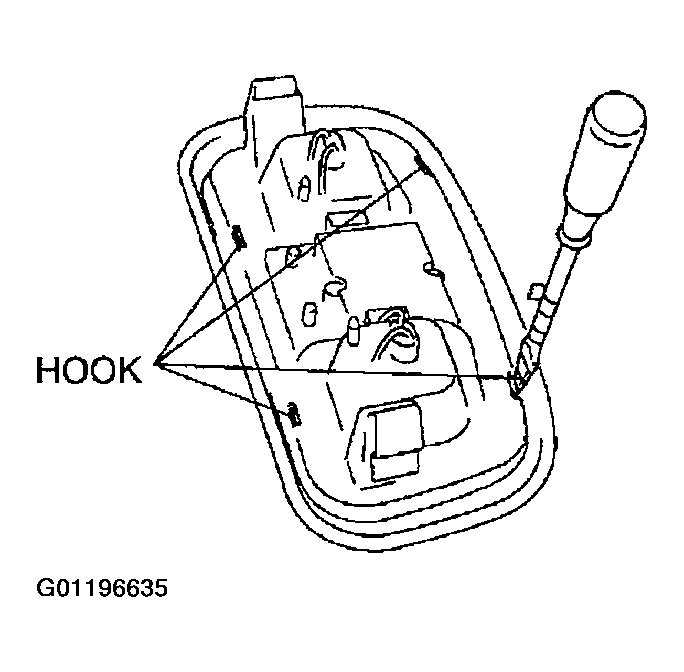

Fig 1: Engaging Hooks

Courtesy of MAZDA MOTORS CORP.

Push the hooks of the lens using a tape-wrapped flathead screwdriver, and remove the lens.

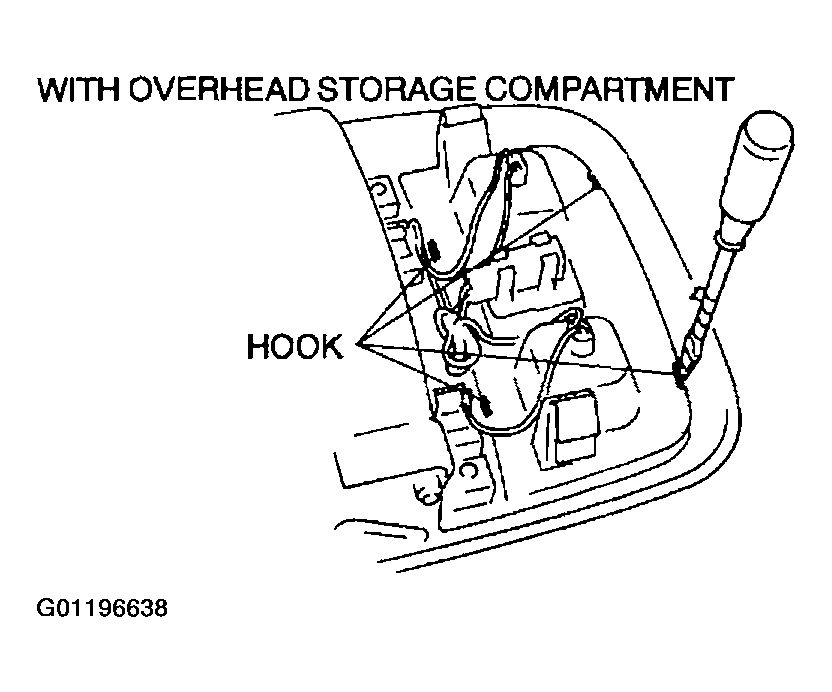

Fig 1: Removing Lens (With Overhead Storage)

Courtesy of MAZDA MOTORS CORP.

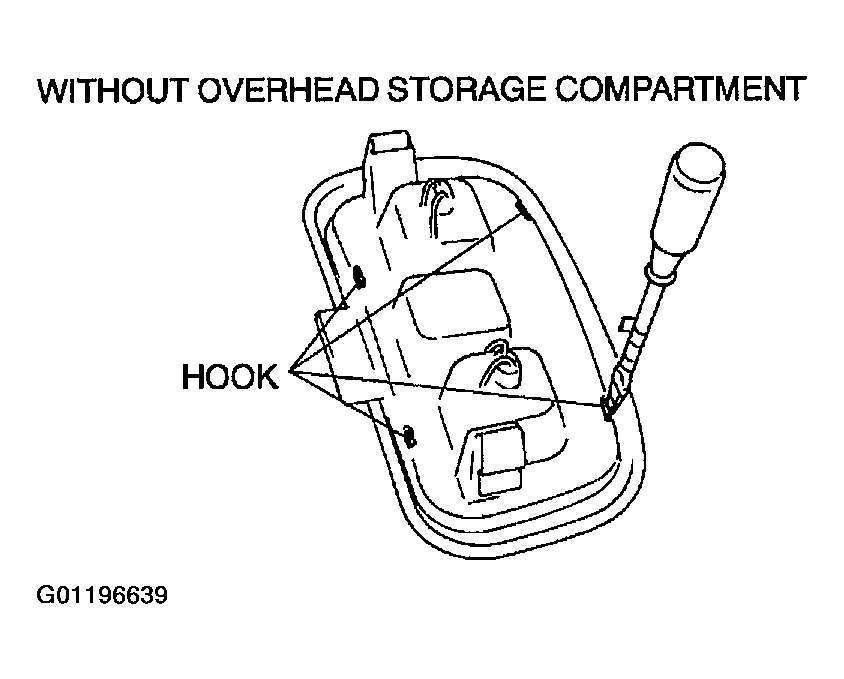

Fig 2: Removing Lens (Without Overhead Storage)

Courtesy of MAZDA MOTORS CORP.
