Combination Switch Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the driver-side air bag module. (See DUAL-STAGE DRIVER-SIDE AIR BAG MODULE ).
Remove the steering wheel.
Remove the column cover.
Remove the clock spring. (See CLOCKSPRING ).
Remove in the order indicated in the illustration.
Install in the reverse order of removal.

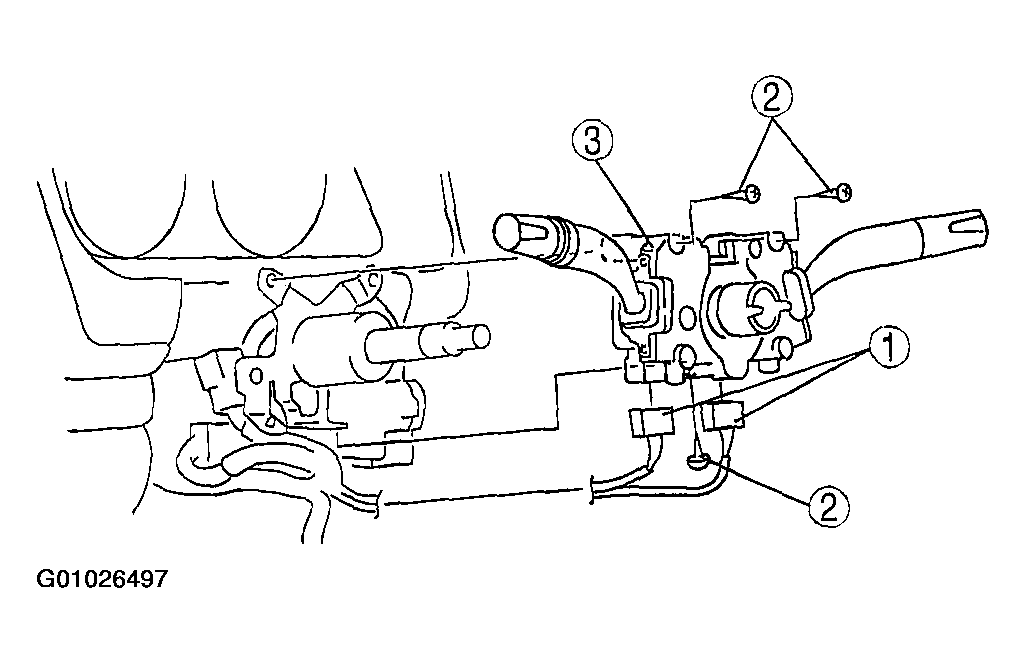

Fig 1: Removal Order Of Combination Switch

Courtesy of MAZDA MOTORS CORP.

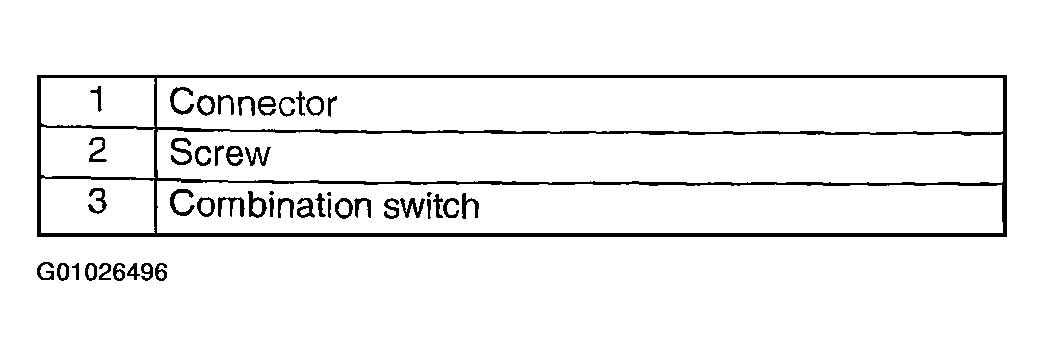

Fig 2: Removing/Installing Combination Switch

Courtesy of MAZDA MOTORS CORP.
