Flasher Control Module Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the instrument cluster. (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION ).
  3. Remove in the order indicated in the illustration.
  4. Install in the reverse order of removal.
Fig 1: Removal Order Of Flasher Control Module
G01026508Courtesy of MAZDA MOTORS CORP.

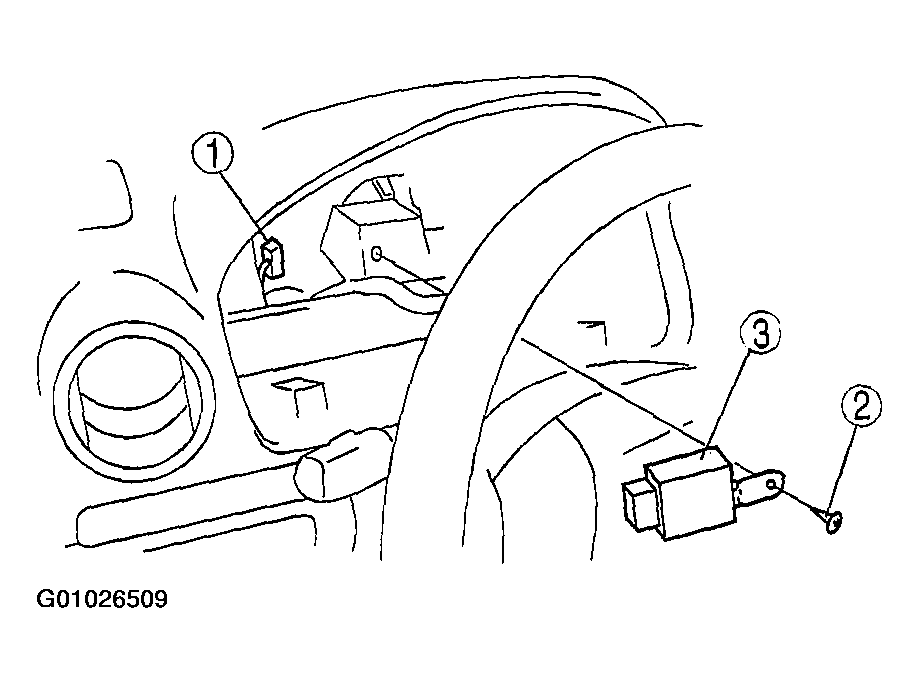

Fig 2: Removing/Installing Flasher Control Module
G01026509Courtesy of MAZDA MOTORS CORP.
