Inboard Combination Light Removal/Installation: Notes

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the trunk lid trim.
  3. Remove in the order indicated in the illustration.
  4. Install in the reverse order of removal.

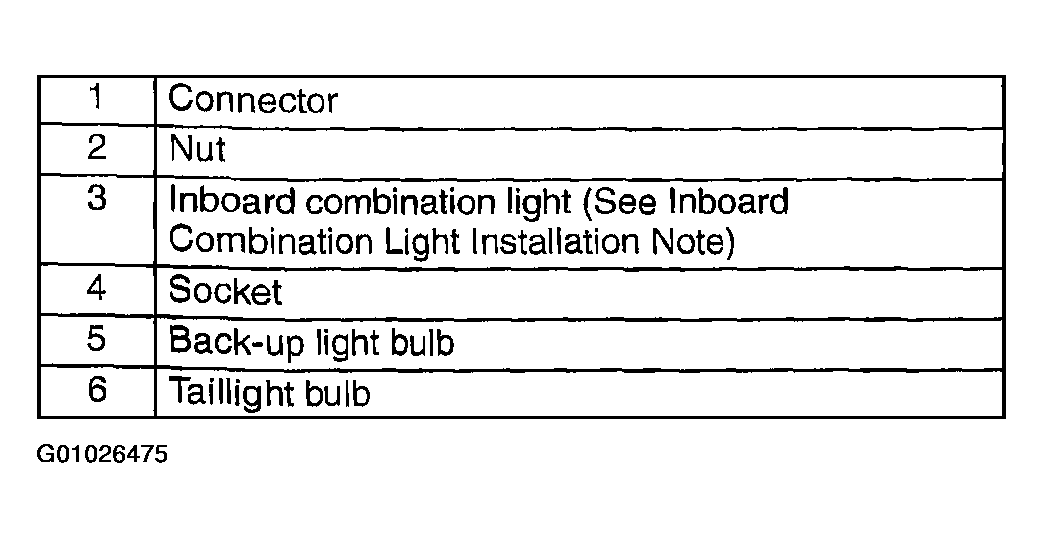

Fig 1: Removal Order Of Inboard Combination Light
G01026475Courtesy of MAZDA MOTORS CORP.

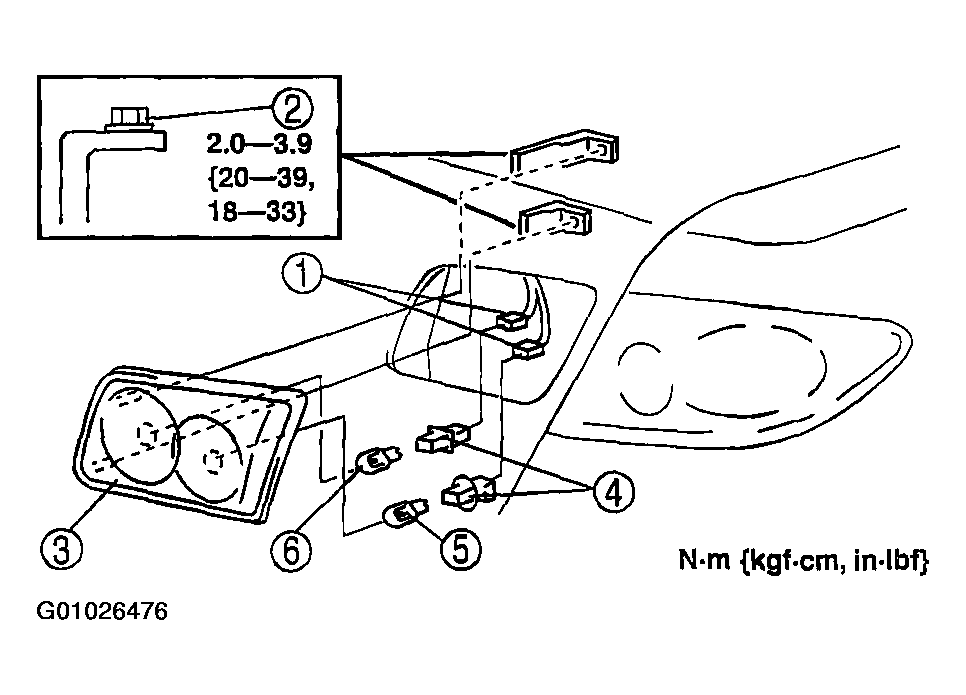

Fig 2: Removing/Installing Inboard Combination Light
G01026476Courtesy of MAZDA MOTORS CORP.
