Fuse Block Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the left-side front side trim.
Remove in the order indicated in figure.

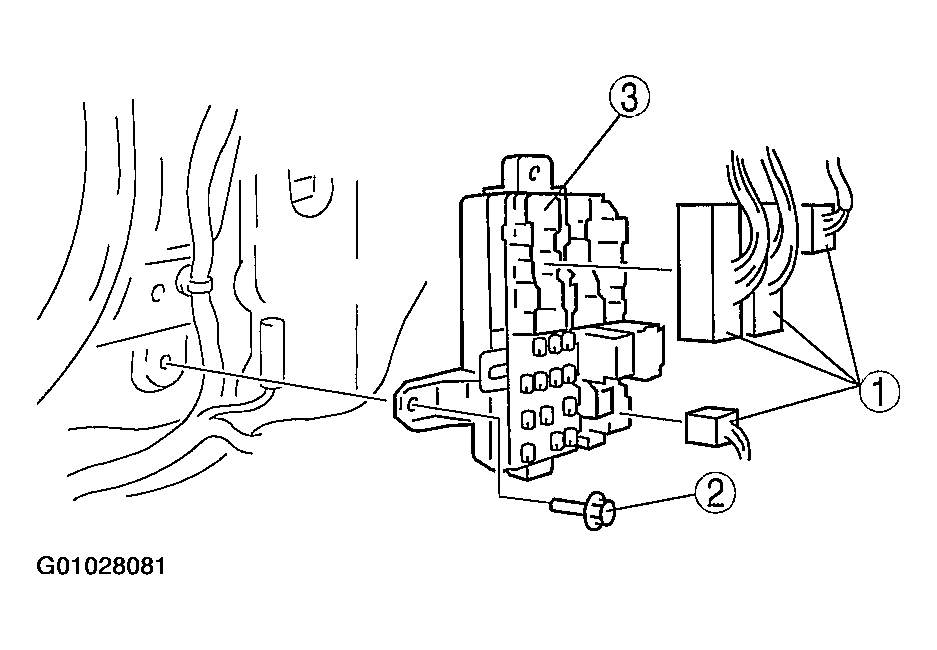

Fig 1: Removing/Installing Fuse Block
Courtesy of MAZDA MOTORS CORP.

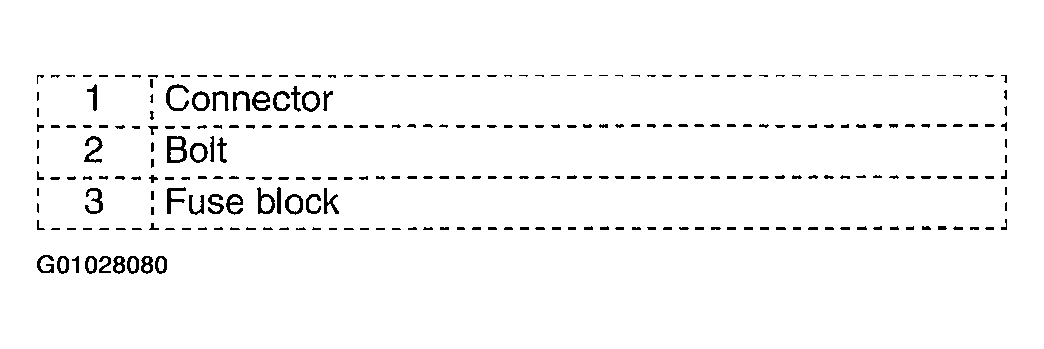

Fig 2: Removal Order Of Fuse Block
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
