Key Reminder Switch Removal/Installation
WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Remove the column cover.
- Disconnect the key reminder switch connector.

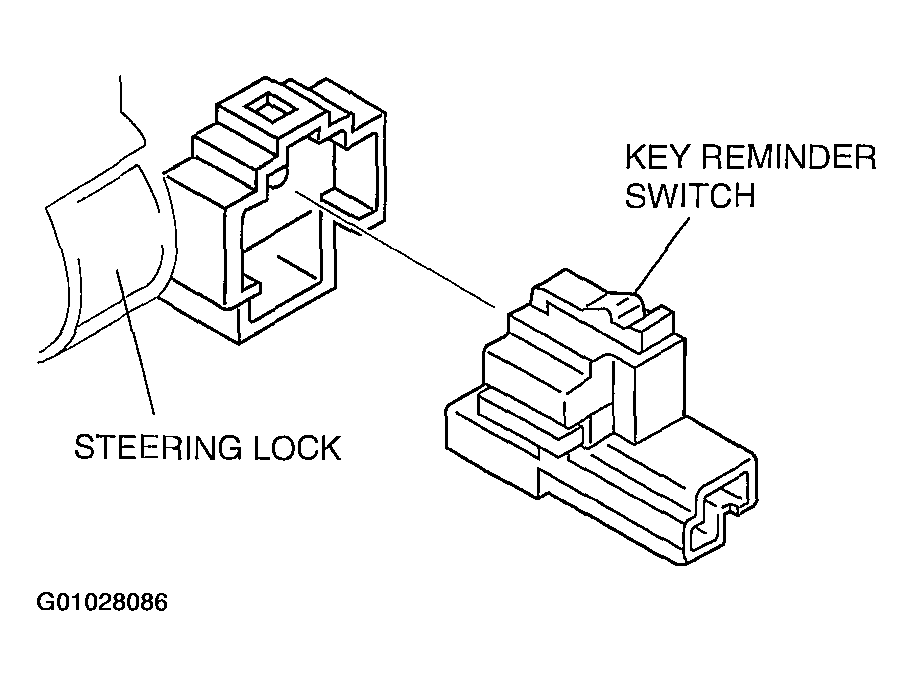

- Remove the key reminder switch.
Courtesy of MAZDA MOTORS CORP.
- Install in the reverse order of removal.
