Socket Removal Note

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the socket by pushing on the protrusion with a tape-wrapped flathead screwdriver inserted through the socket hole, and pulling the socket toward you.

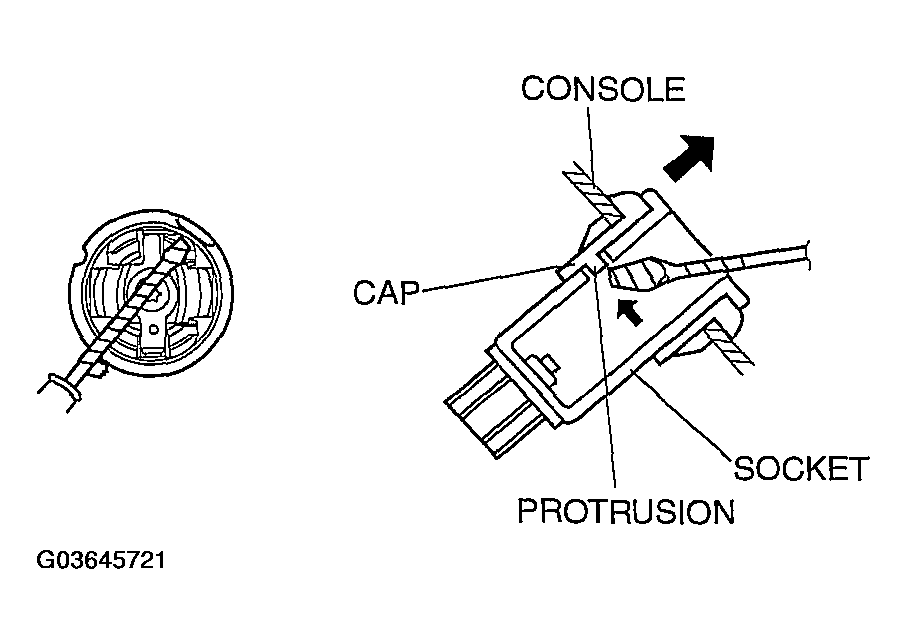

    Fig 1: Removing Socket
    G03645721Courtesy of MAZDA MOTORS CORP.
