Fuel Injector Removal/Installation: Notes

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Follow the before repair procedure and perform fuel line safety procedure. (See BEFORE REPAIR PROCEDURE .)
  2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION .)
  3. Remove the extension manifold (upper). (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
  4. Remove the extension manifold (lower). 3(See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
  5. Remove in the order indicated in the table.

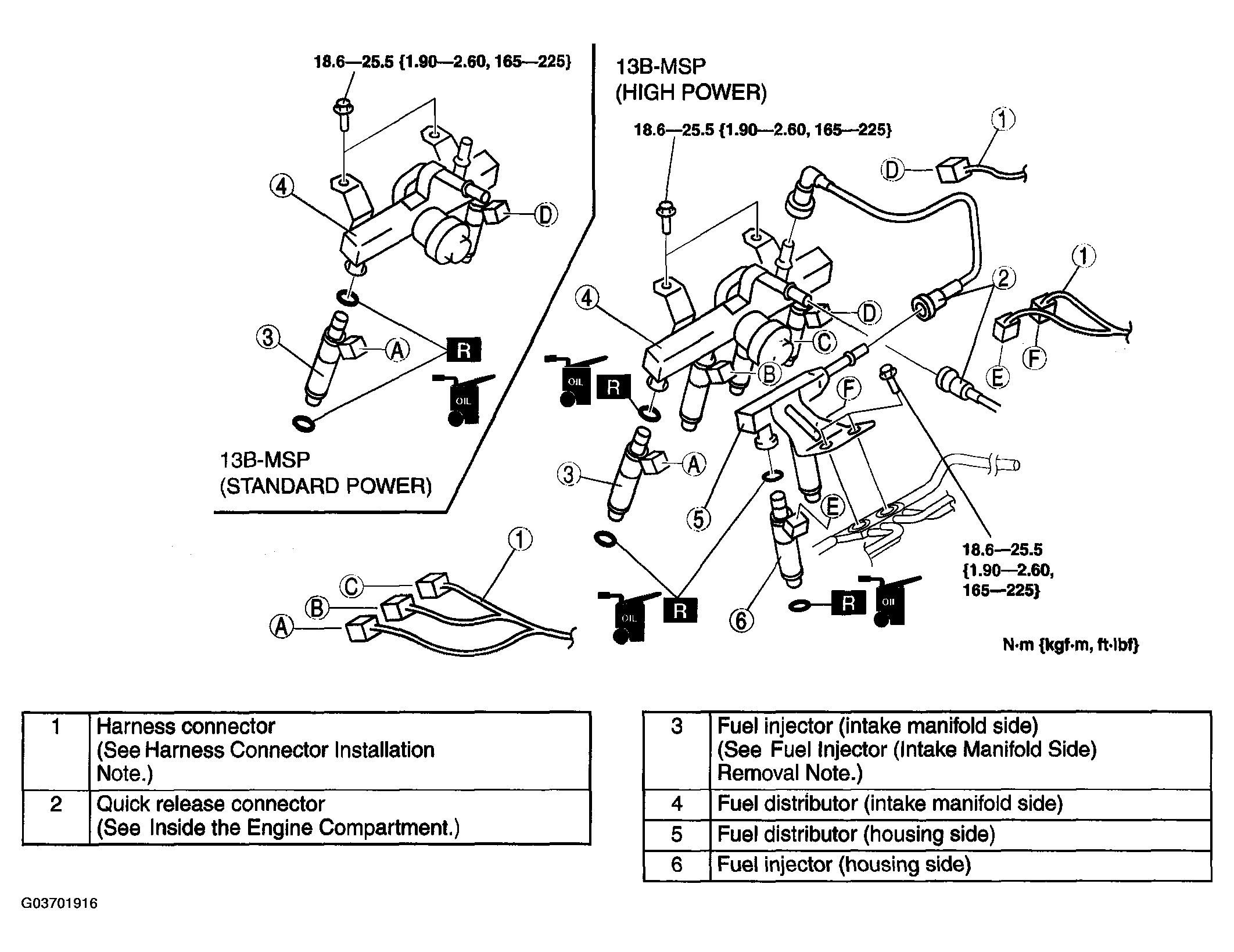

    Fig 1: Removing Harness Connector With Torque Specifications
    G03701916Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
  7. Inspect all parts by performing the "AFTER REPAIR PROCEDURE". (See AFTER REPAIR PROCEDURE .)
