Combination Switch Disassembly/Assembly

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

For vehicles with DSC: If the disc on the combination switch is deformed or has foreign material adhering to it, performance of the steering angle sensor may be reduced, causing abnormal operation. When handling the combination switch, be careful not to deform the disc and make sure there is no foreign material on it.

Disassemble in the order indicated in the table.

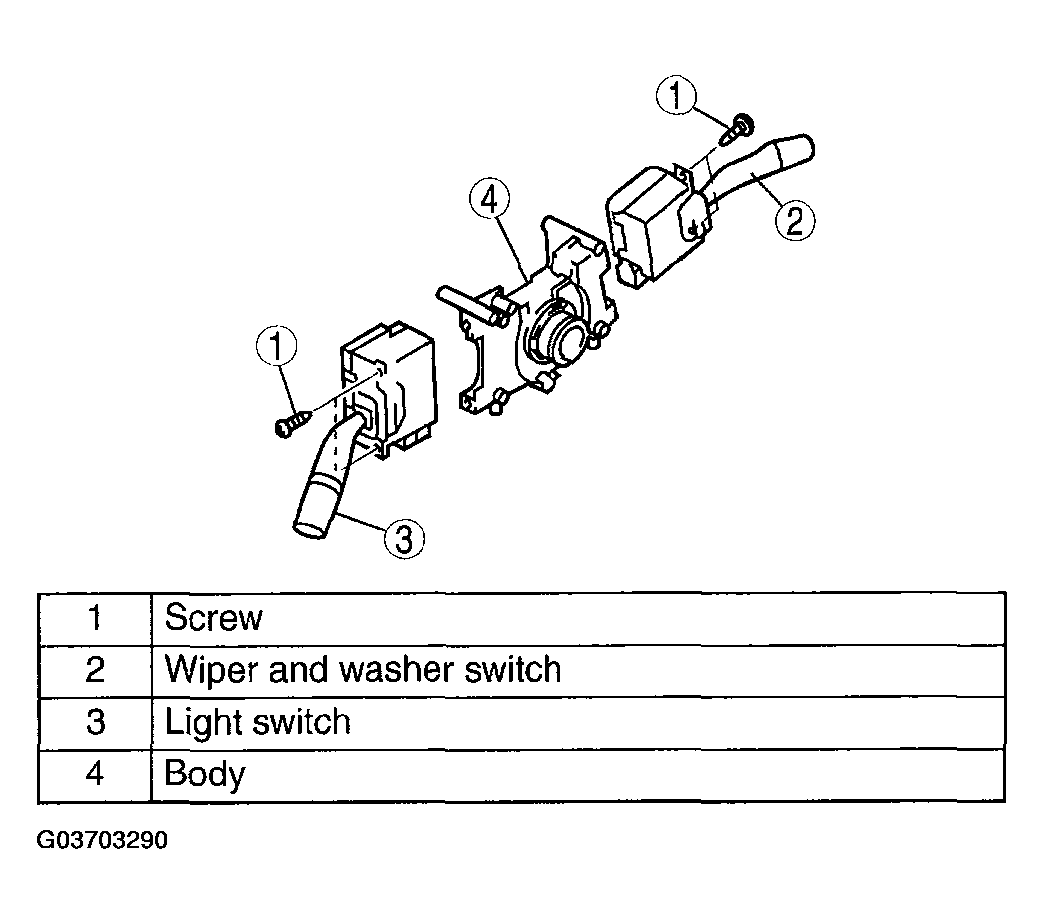

Fig 1: Disassembling View Of Combination Switch
Courtesy of MAZDA MOTORS CORP.
Assemble in the reverse order of disassembly.
