LCD Unit Removal Note

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Pull the lower LCD unit outward, detach clip A from the dashboard, and then remove the LCD unit.

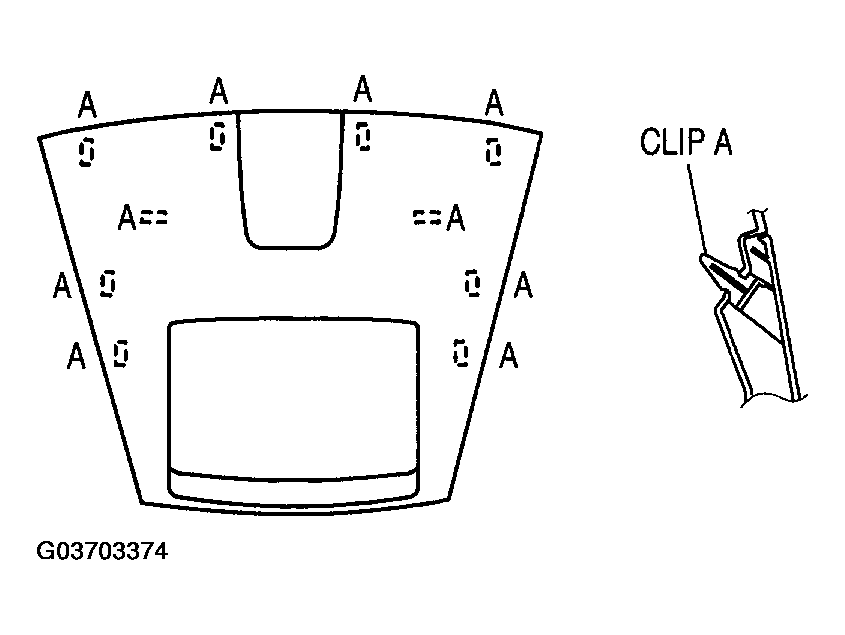

Fig 1: Pulling Lower LCD Unit Outward, Detaching Clip A From Dashboard
Courtesy of MAZDA MOTORS CORP.
