Main Fuse Removal/Installation: Notes

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the main fuse block cover.
Remove in the order indicated in the table.

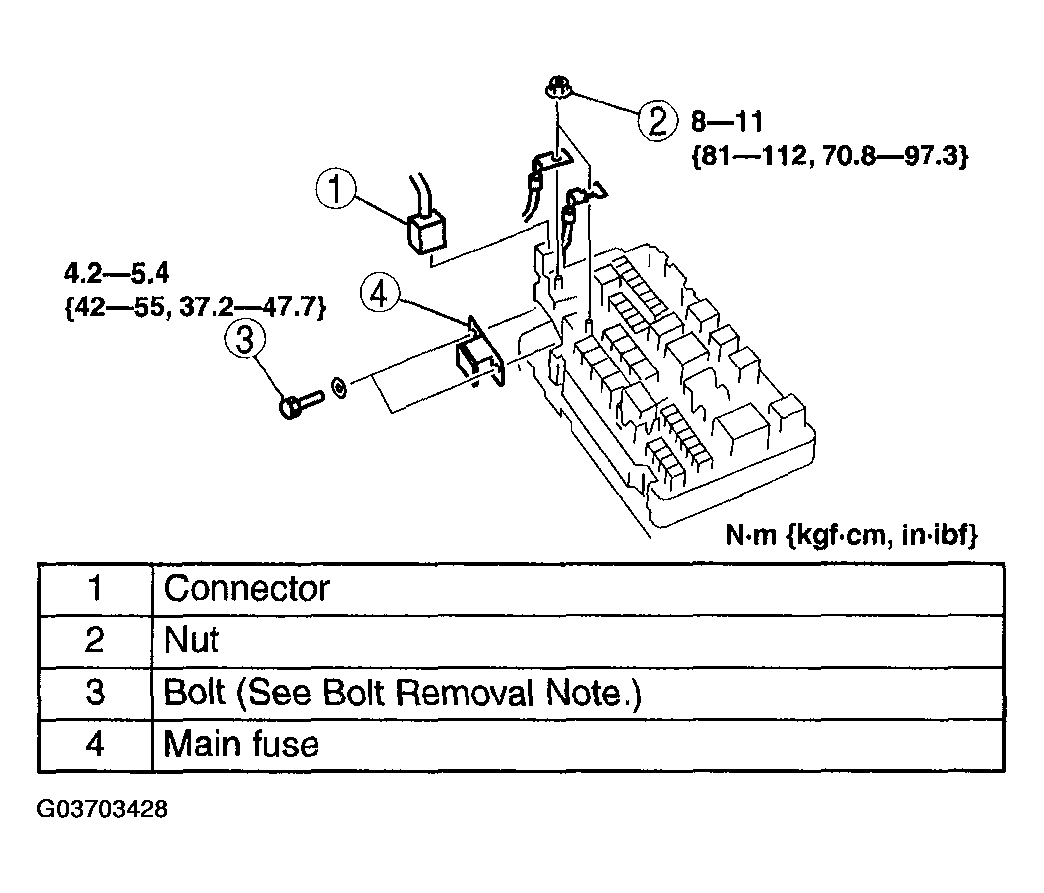

Fig 1: Removing Main Fuse With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
