Combination Switch Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION .)
  3. Remove the steering wheel. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
  4. Remove the column cover.
  5. Remove the clock spring. (See CLOCK SPRING REMOVAL/INSTALLATION .)
  6. Remove in the order indicated in the table.

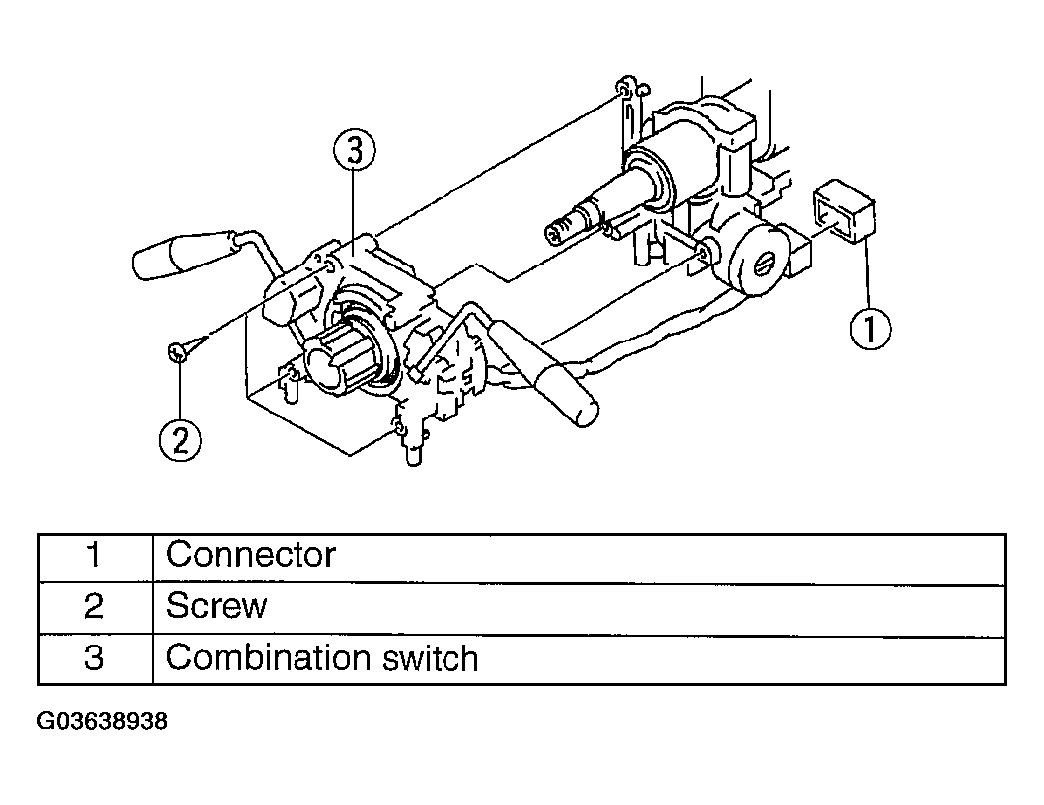

    Fig 1: Removing Combination Switch
    G03638938Courtesy of MAZDA MOTORS CORP.
  7. Install in the reverse order of removal.
