Audio Unit Installation
WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Make certain that the wiring harness and antenna feeder are not caught between the unit and dashboard. If the harness or the antenna feeder is caught between the unit and dashboard, it may become the cause of trouble or malfunctions.
- Install the audio unit service hole covers.
- Connect the audio unit connectors and antenna jacks.

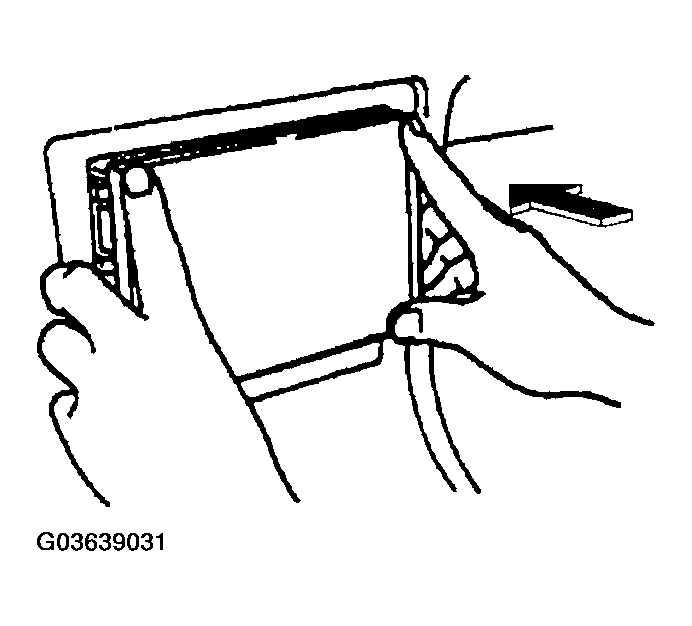

- Insert the audio unit until each clip clicks.
- Connect the negative battery cable.
- Operate the anti-theft system by setting the code number. (For vehicles equipped with anti-theft system)
