Cigarette Lighter Removal/Installation: Notes

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the center panel. (See CENTER PANEL REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the table.

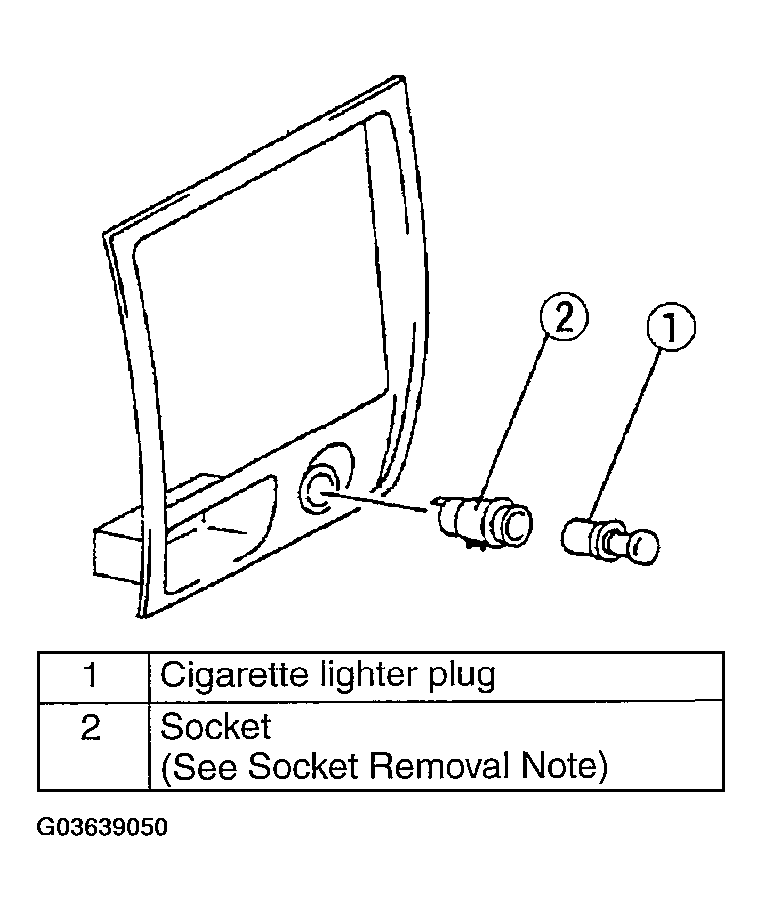

    Fig 1: Removing Cigarette Lighter
    G03639050Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
