Tweeter Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

When removing or installing a tweeter, touching the radio cone paper could cause poor sound quality. When removing or installing a tweeter speaker, hold the speaker's bracket and handle with care.

Disconnect the negative battery cable.
Remove the door trim. (See DOOR TRIM REMOVAL/INSTALLATION .)
Remove the screws, then remove the tweeter.

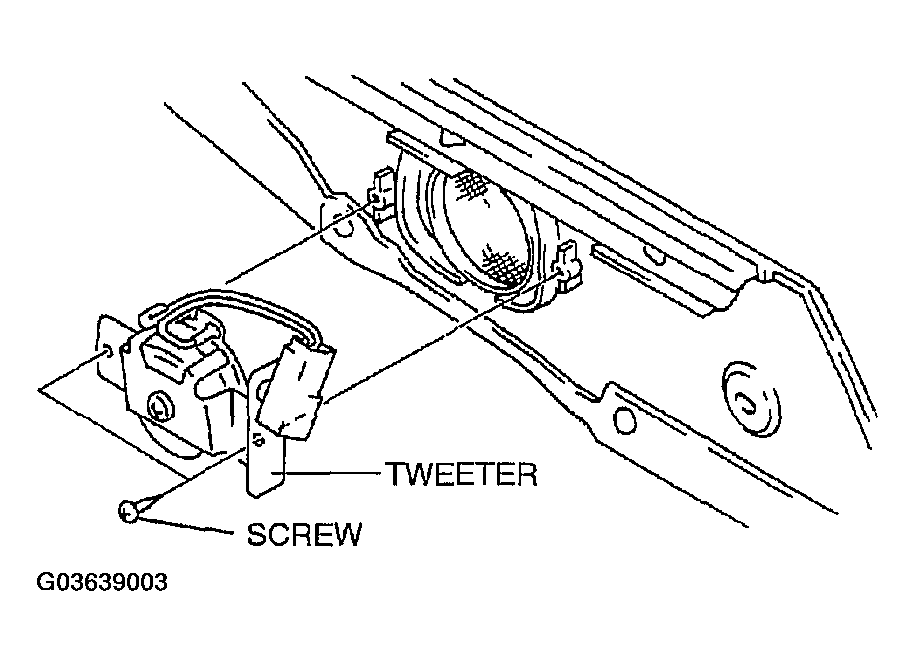

Fig 1: Removing Tweeter
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
