Key Reminder Switch Inspection

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
Disconnect the key reminder switch connector.

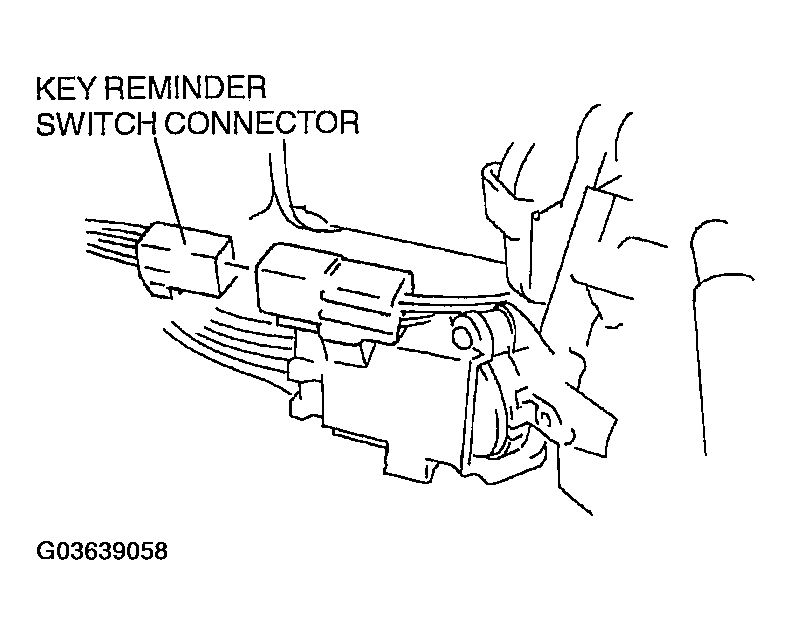

Fig 1: Identifying Key Reminder Switch Connector
Courtesy of MAZDA MOTORS CORP.
Inspect for continuity between the key reminder switch terminals using an ohmmeter.
- If not as specified, replace the steering lock.
  (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)

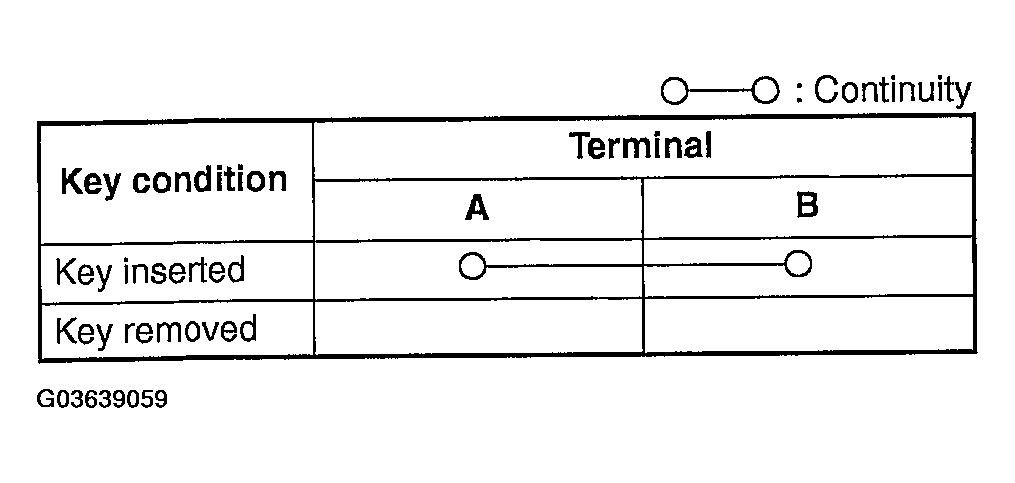

Fig 2: Key Reminder Switch Terminal Connector Continuity
Courtesy of MAZDA MOTORS CORP.

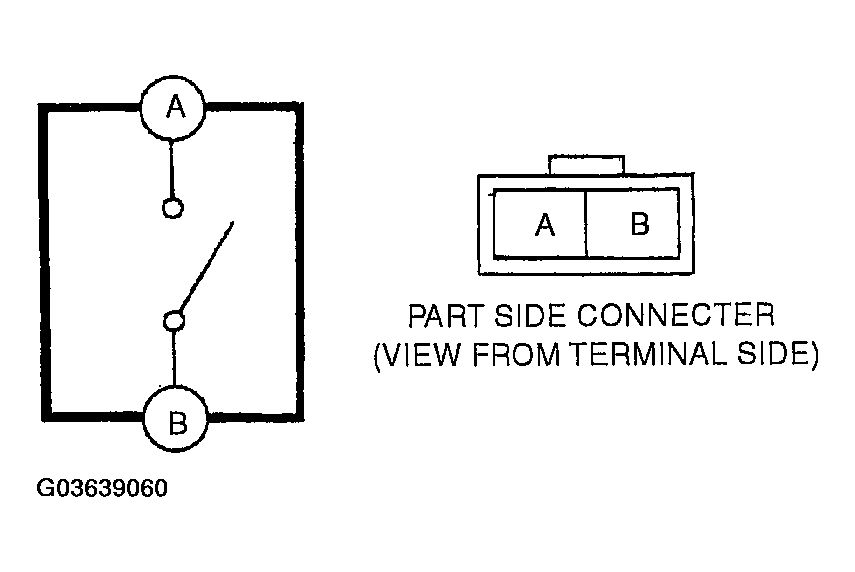

Fig 3: Inspecting For Continuity Between Key Reminder Switch Terminals Using An Ohmmeter
Courtesy of MAZDA MOTORS CORP.
