Front Combination Light Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the front bumper.
  3. Remove in the order indicated in the illustration.
    Fig 1: Removal Order Of Front Combination Light
    G01026455Courtesy of MAZDA MOTORS CORP.

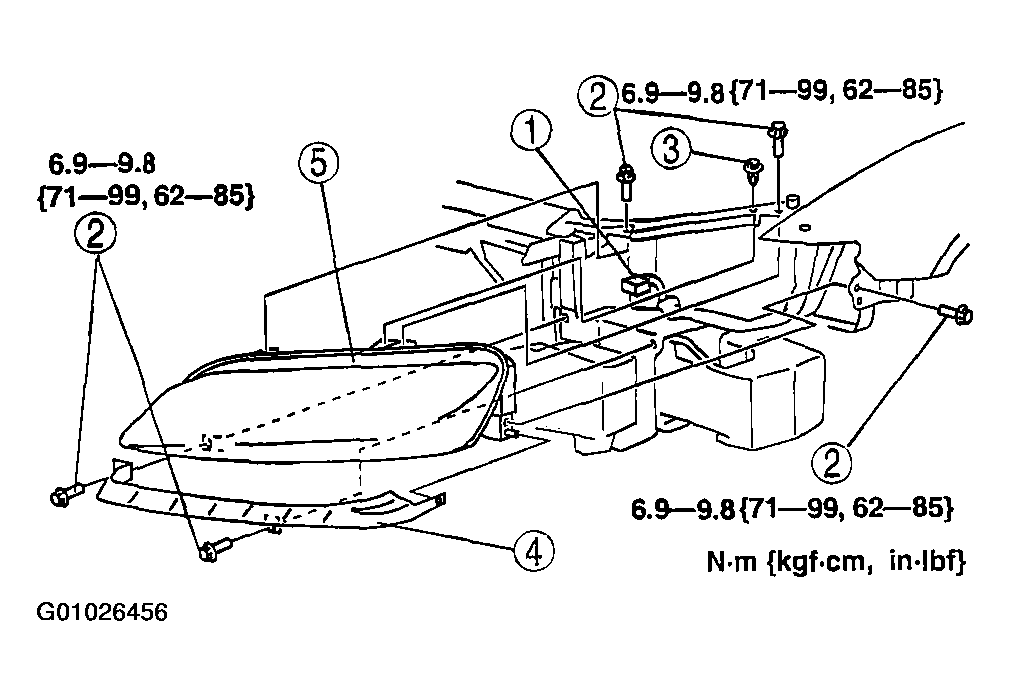

    Fig 2: Removing/Installing Front Combination Light
    G01026456Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
  5. Adjust the headlight aiming. (See HEADLIGHT ADJUSTMENT  .)
  6. Adjust the front fog light aiming. (See FRONT FOG LIGHT ADJUSTMENT  .)
