Rear Climate Control Unit Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear cup holder (RH).
Remove in the order indicated in the table.

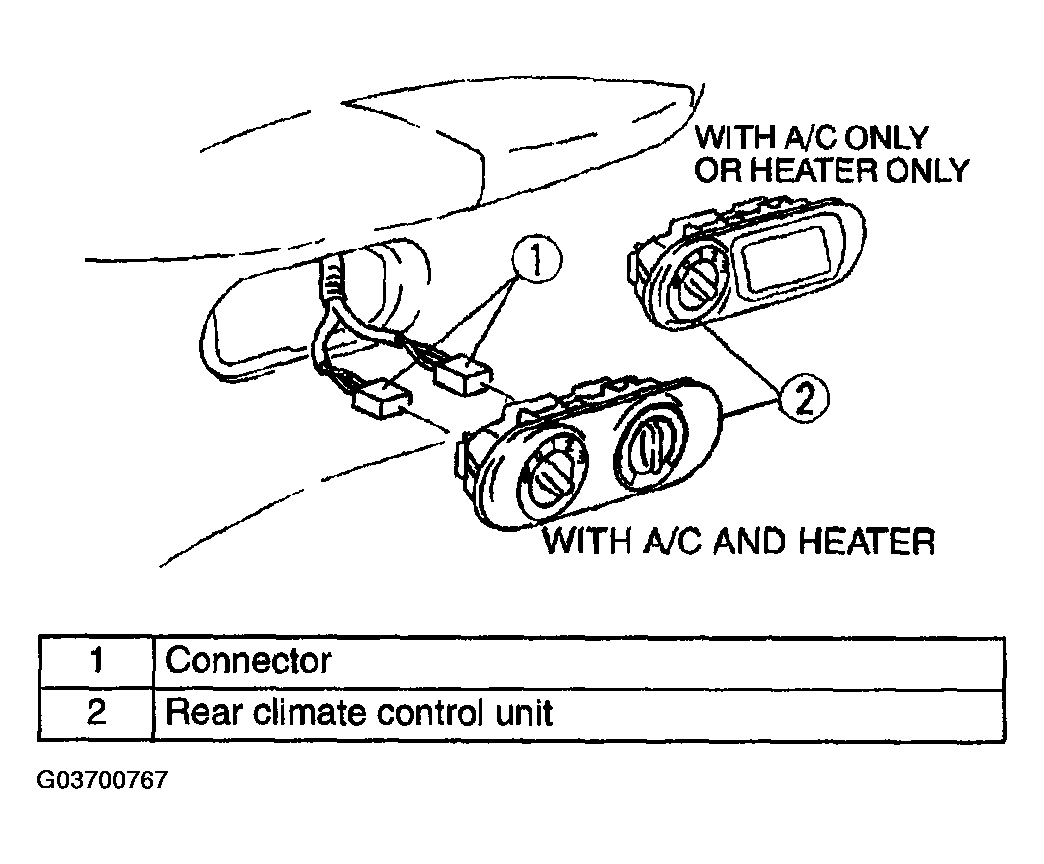

Fig 1: Removing Rear Climate Control Unit
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
