Key Reminder Switch Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
  3. Disconnect the key reminder switch connector.
  4. Remove the key reminder switch.
  5. Install in the reverse order of removal.

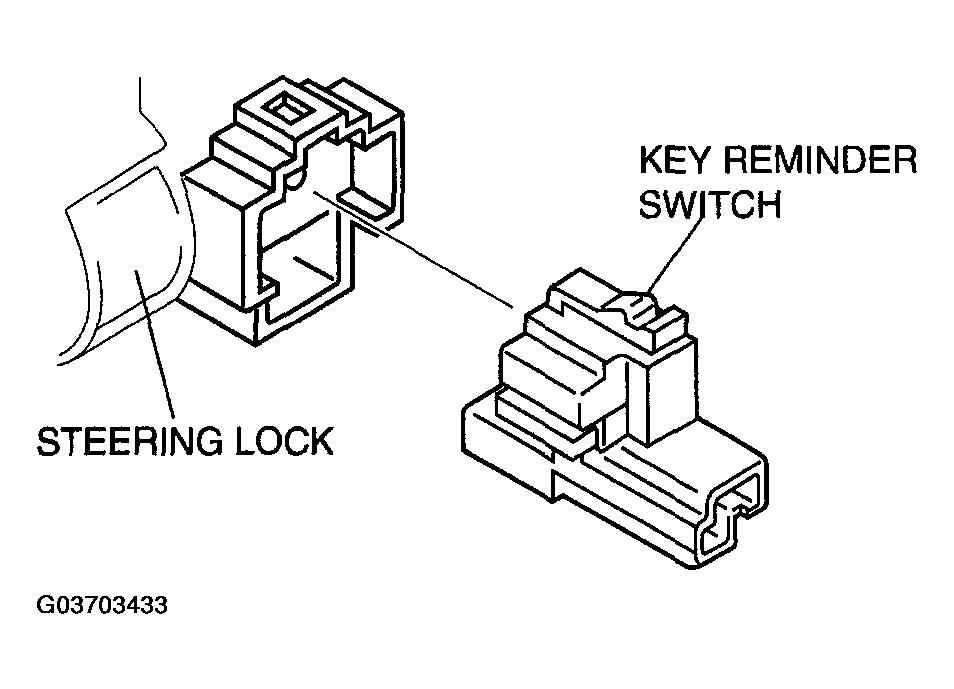

    Fig 1: Removing Key Reminder Switch
    G03703433Courtesy of MAZDA MOTORS CORP.
