Shift Speed Specifications

NOTE: For shift speed specifications, refer to appropriate illustrations. See Fig 1 -Fig 8 .

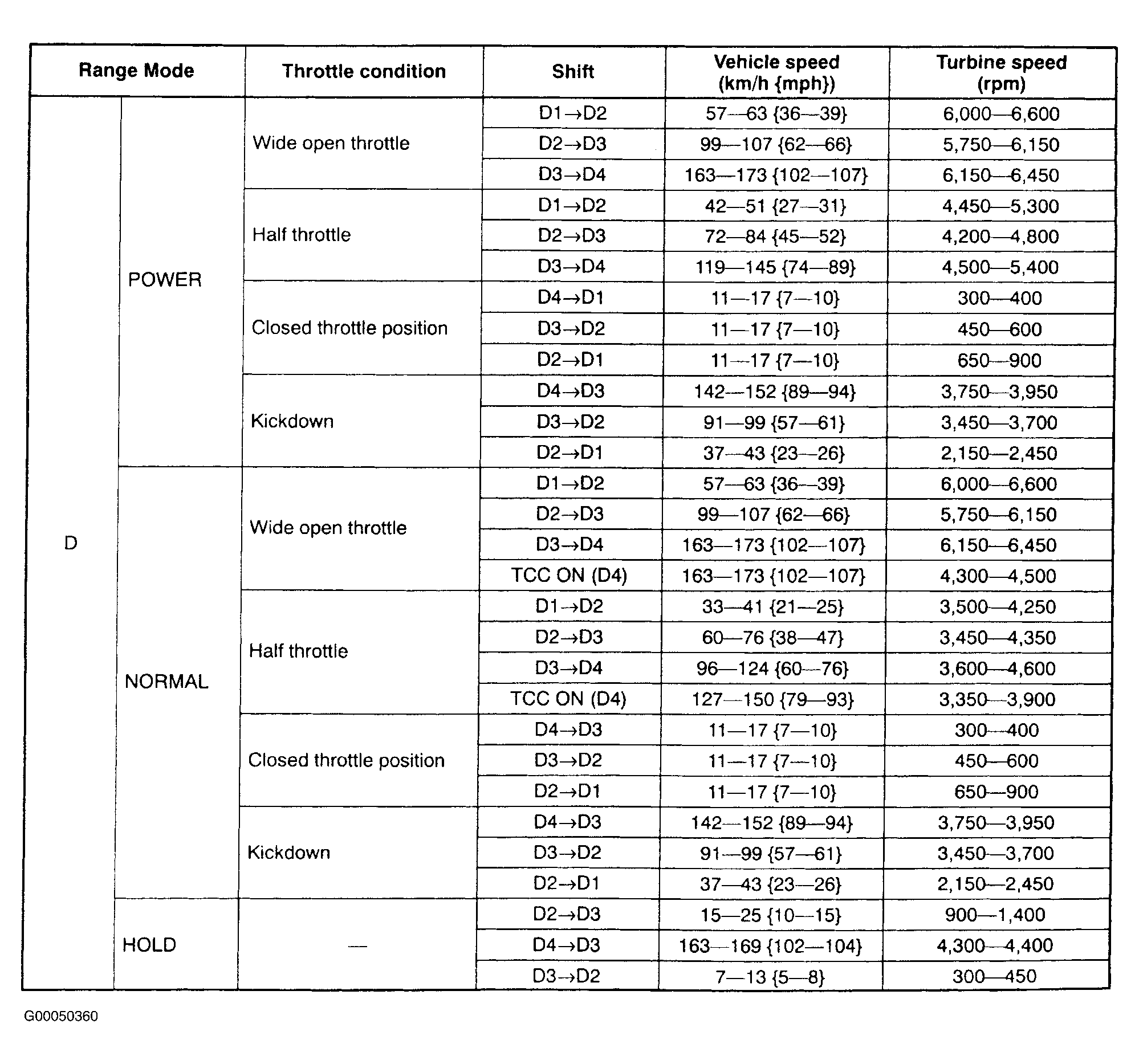

Fig 1: Shift Speed Specifications (Millenia - "D" Range)

Courtesy of MAZDA MOTORS CORP.

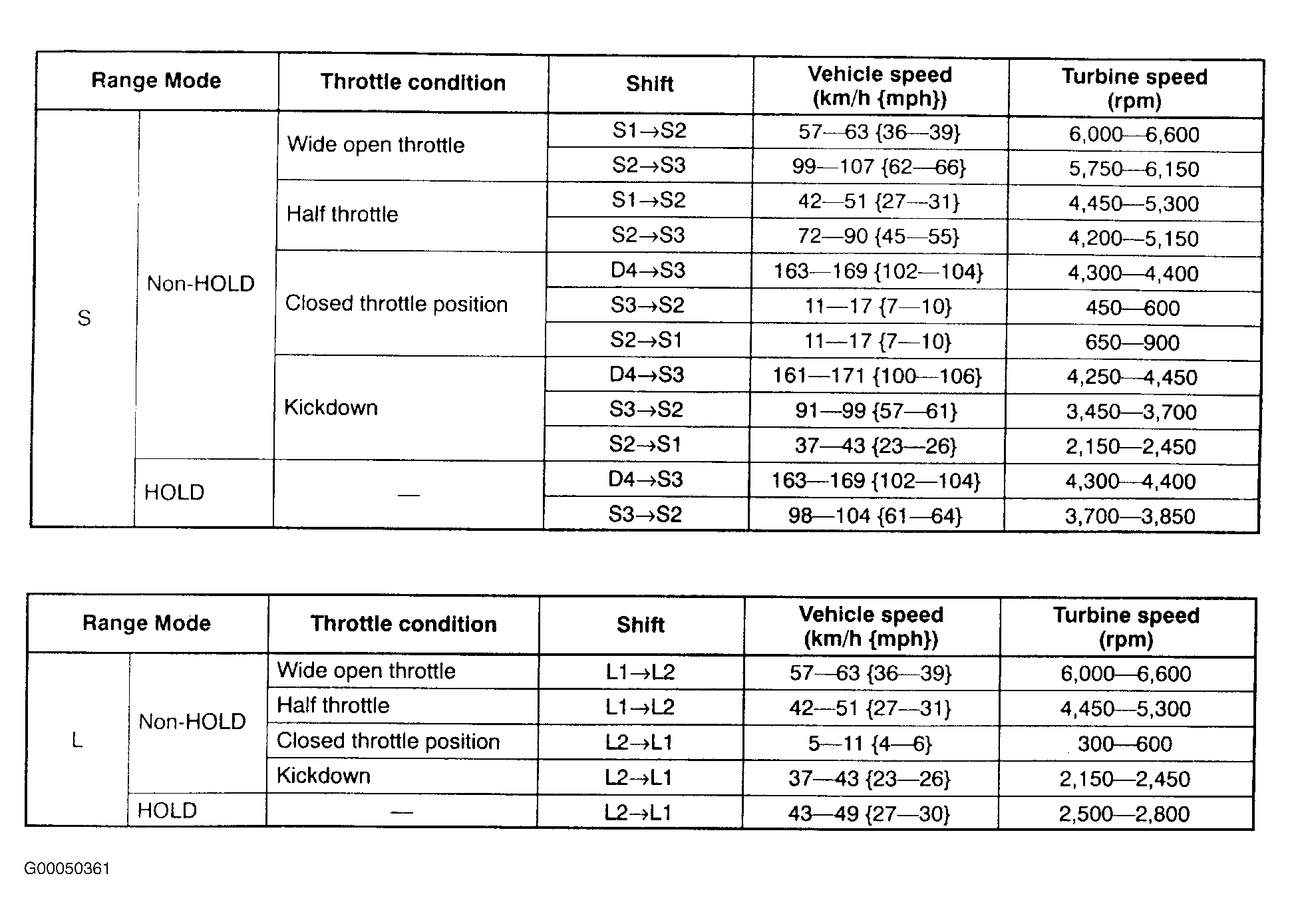

Fig 2: Shift Speed Specifications (Millenia - "S" & "L" Ranges)

Courtesy of MAZDA MOTORS CORP.

Fig 3: Shift Speed Specifications (MPV - "D" Ranges - 1 Of 3)

Courtesy of MAZDA MOTORS CORP.

Fig 4: Shift Speed Specifications (MPV - "D" Ranges - 2 Of 3)

Courtesy of MAZDA MOTORS CORP.

Fig 5: Shift Speed Specifications (MPV - "D" Ranges - 3 Of 3)

Courtesy of MAZDA MOTORS CORP.

Fig 6: Shift Speed Specifications (MPV - "2" & "1" Ranges)

Courtesy of MAZDA MOTORS CORP.

Fig 7: Shift Speed Specifications (626 - "D" Ranges - 1 Of 2)

Courtesy of MAZDA MOTORS CORP.

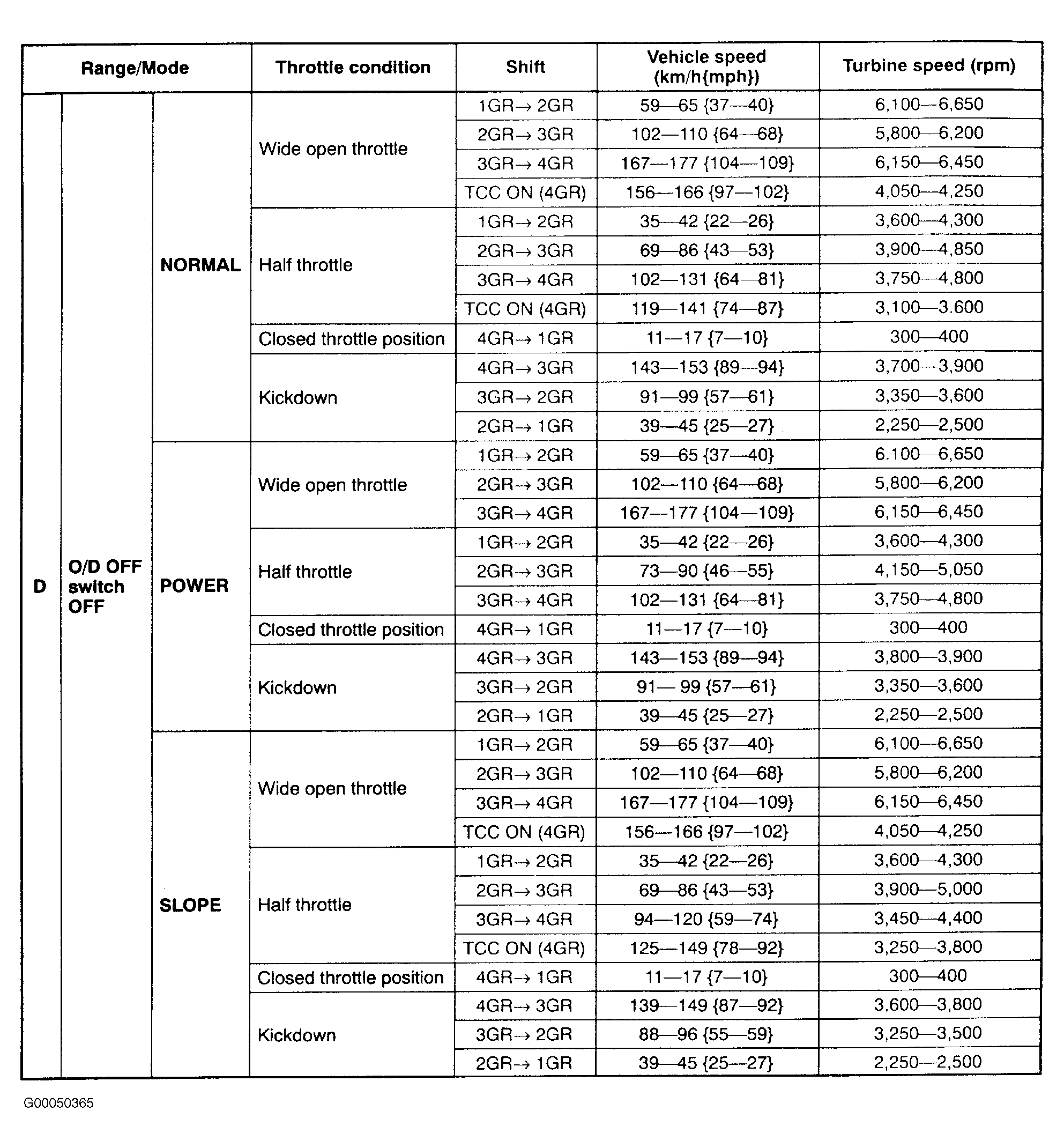

Fig 8: Shift Speed Specifications (626 - "D" Ranges - 2 Of 2)

Courtesy of MAZDA MOTORS CORP.

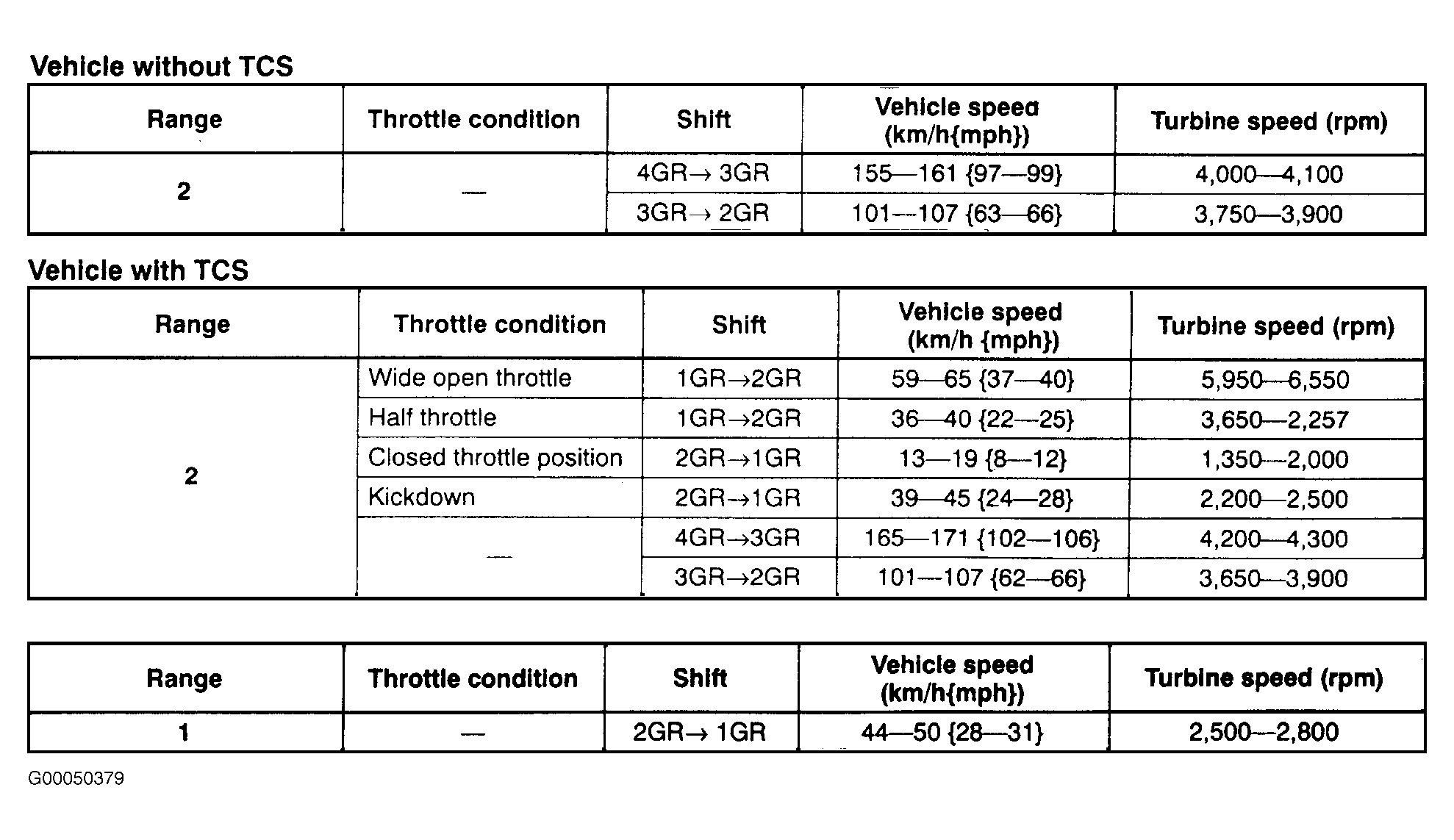

Fig 9: Shift Speed Specifications (626 - "2" & "1" Ranges)

Courtesy of MAZDA MOTORS CORP.

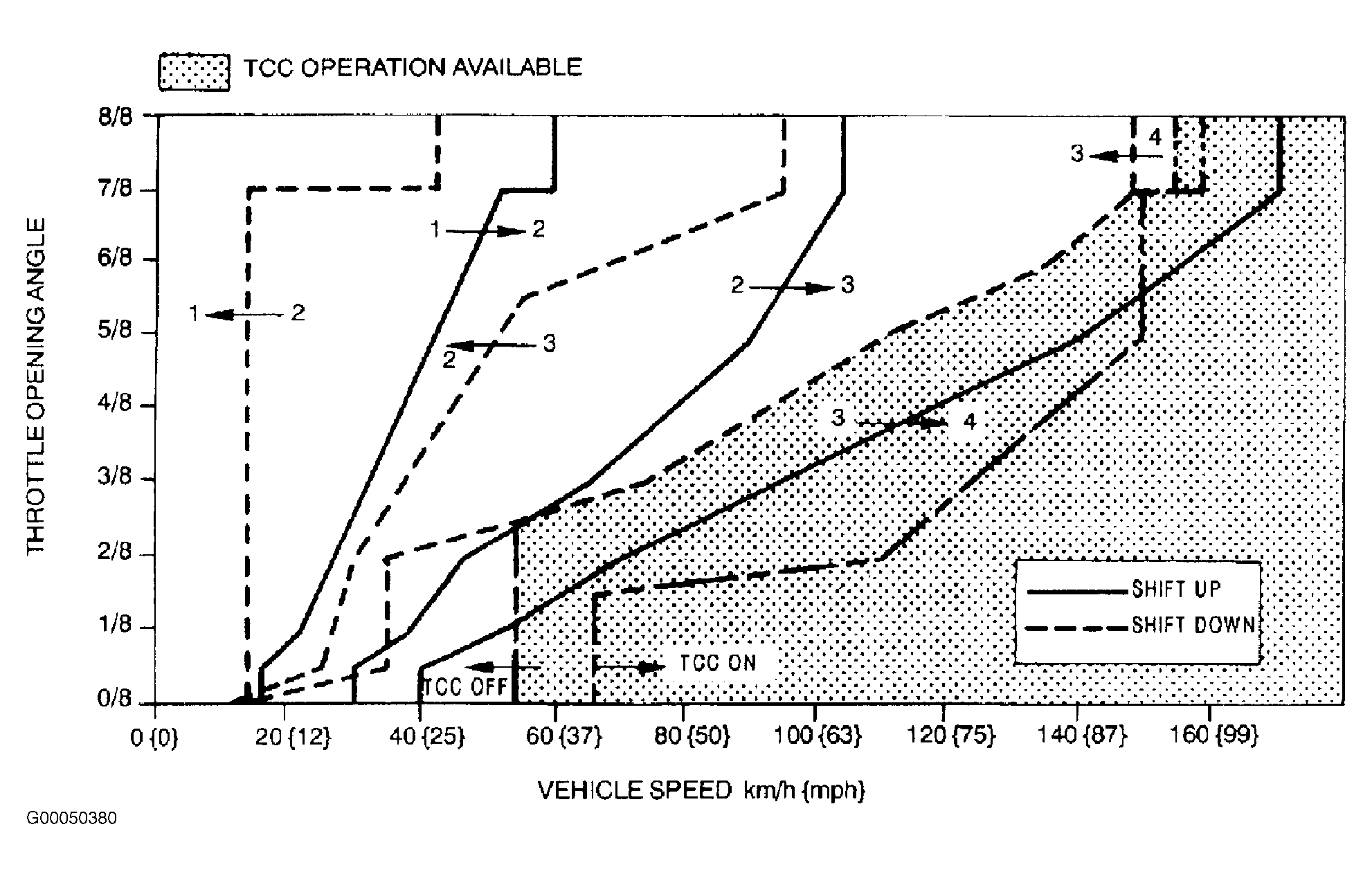

Fig 10: TCC Operation Diagram (Millenia)

Courtesy of MAZDA MOTORS CORP.

Fig 11: TCC Operation Diagram (MPV)

Courtesy of MAZDA MOTORS CORP.

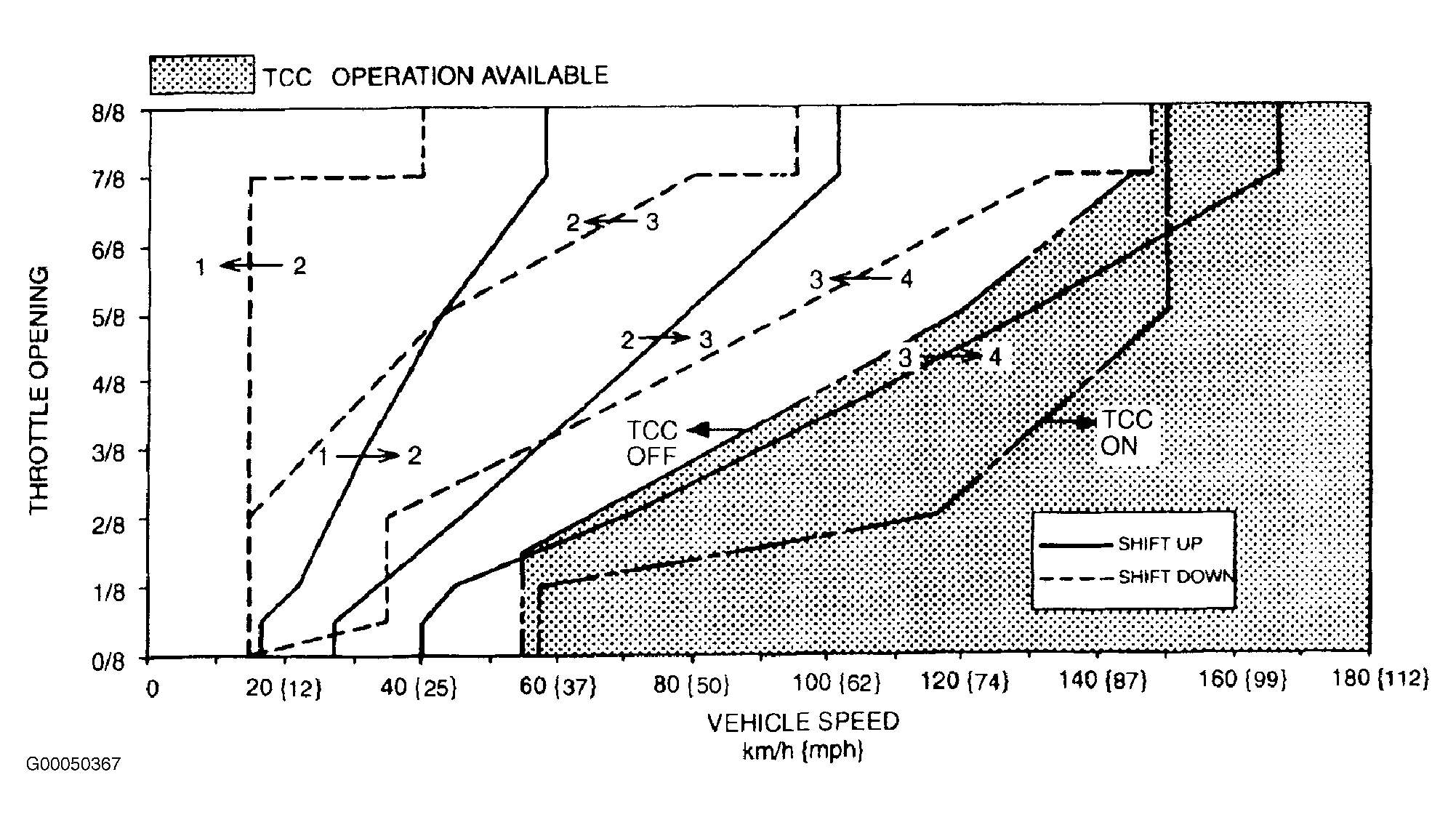

Fig 12: TCC Operation Diagram (626)

Courtesy of MAZDA MOTORS CORP.
