Control Units

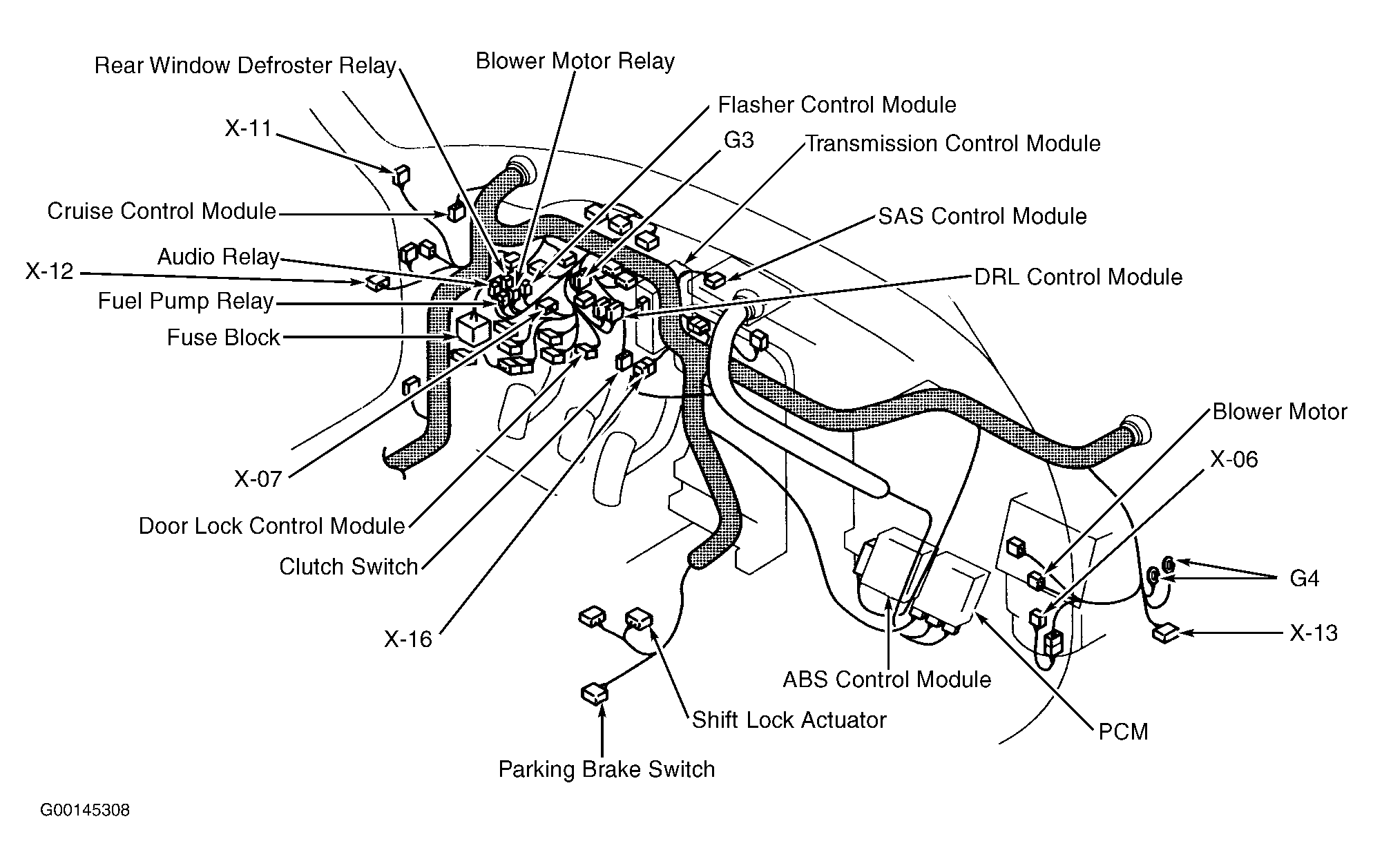

CONTROL UNITS

Component Component Location
ABS Control Module Behind right side of dash. See Figure .
Cruise Control Module Behind left side of dash. See Figure .
Door Lock Control Module Behind left side of dash. See Figure .
DRL Control Module Behind left side of dash. See Figure .
Flasher Control Module Behind left side of dash. See Figure .
PCM Behind right side of dash. See Figure .
SAS Control Module Behind center of dash. See Figure .
Transmission Control Module Behind left side of dash. See Figure .
