Connector Views

NOTE: For connector views referred to in TROUBLE SHOOTING, COMPONENT TESTS and DIAGNOSTIC TESTS, see Fig 1 -Fig 5 .

Fig 1: Identifying Data Link Connector (DLC-1) Terminals

Courtesy of MAZDA MOTORS CORP.

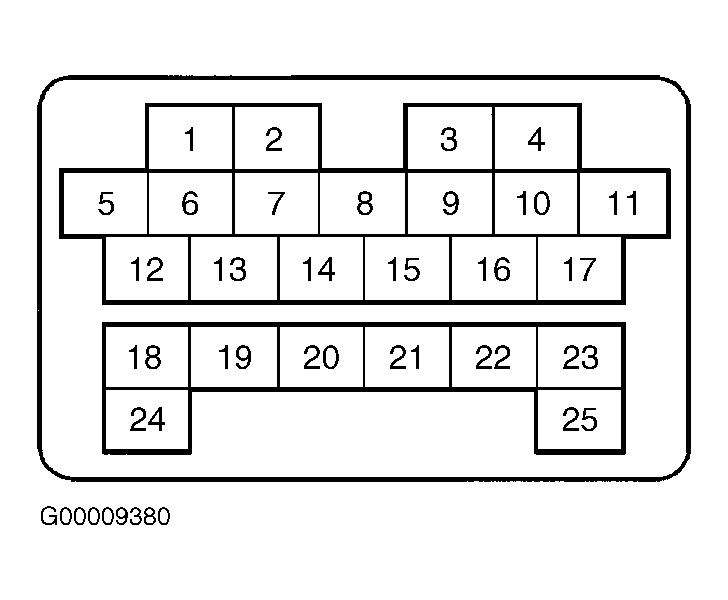

Fig 2: Identifying ABS Control Module Connector Terminals

Courtesy of MAZDA MOTORS CORP.

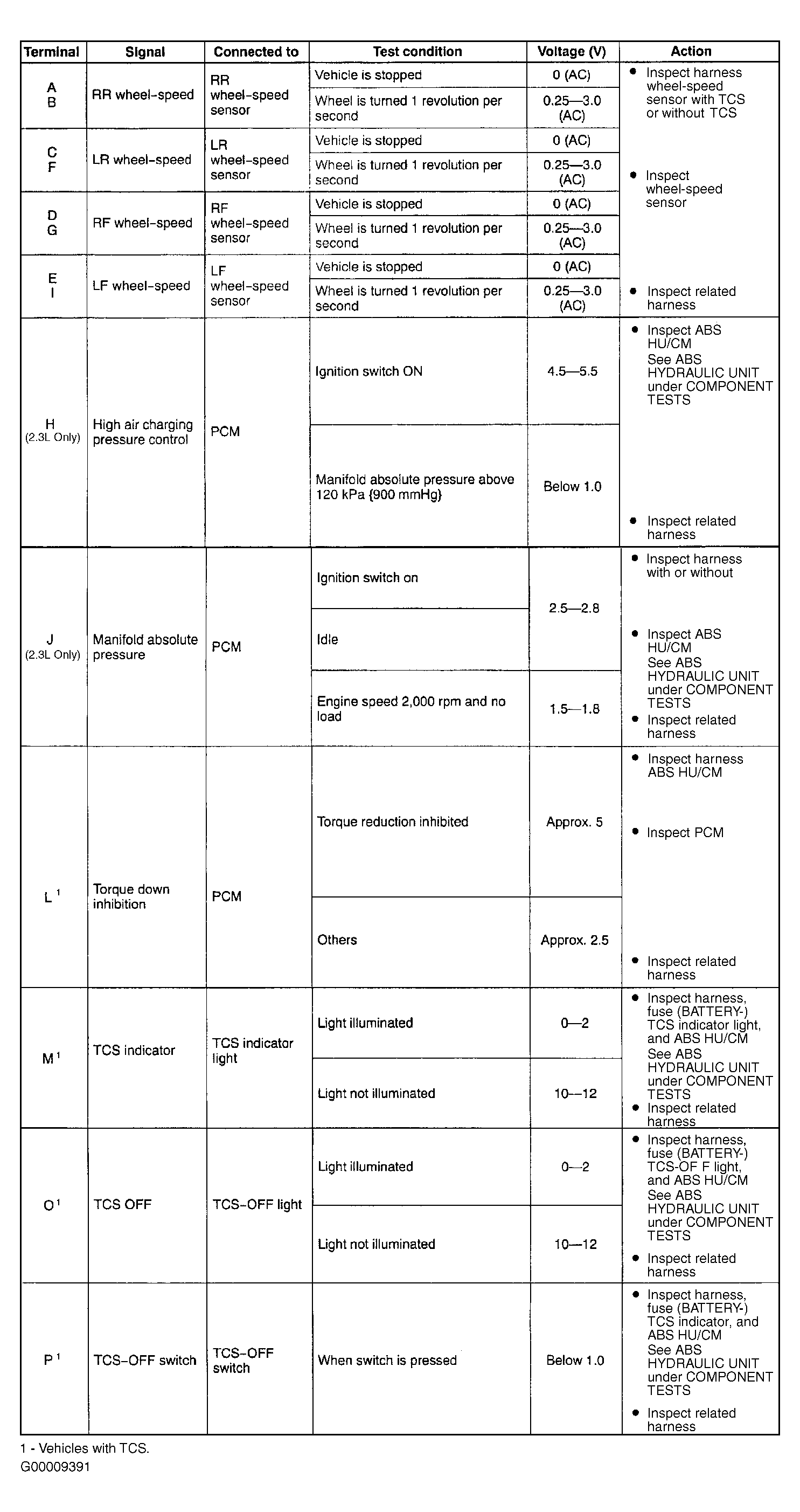

Fig 3: Testing ABS Control Module (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

Fig 4: Testing ABS Control Module (2 Of 2)

Courtesy of MAZDA MOTORS CORP.

Fig 5: Identifying Instrument Cluster Connector Terminals
