Combination Switch Disassembly/Assembly

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • For vehicles with DSC: If the disc on the combination switch is deformed or has foreign material adhering to it, performance of the steering angle sensor may be reduced, causing abnormal operation. When handling the combination switch, be careful not to deform the disc and make sure there is no foreign material on it.
  1. Disassemble in the order indicated. See Fig 1.

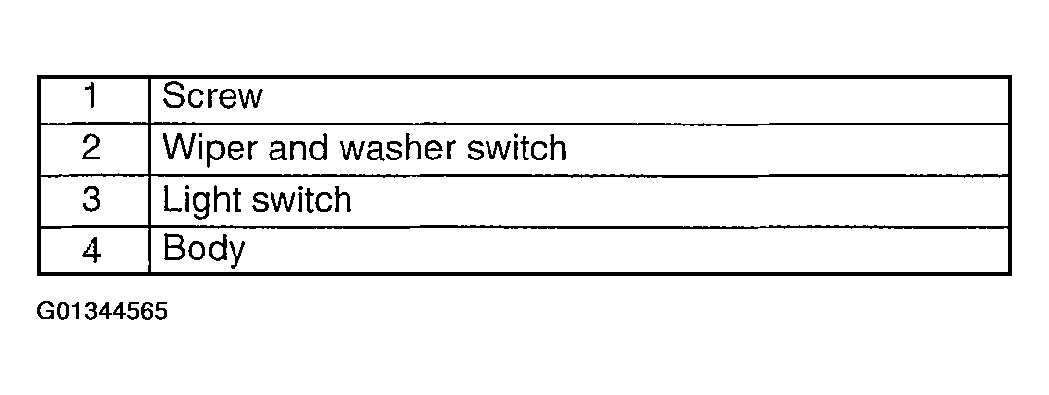

    Fig 1: Disassembling Order Of Combination Switch
    G01344565Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.

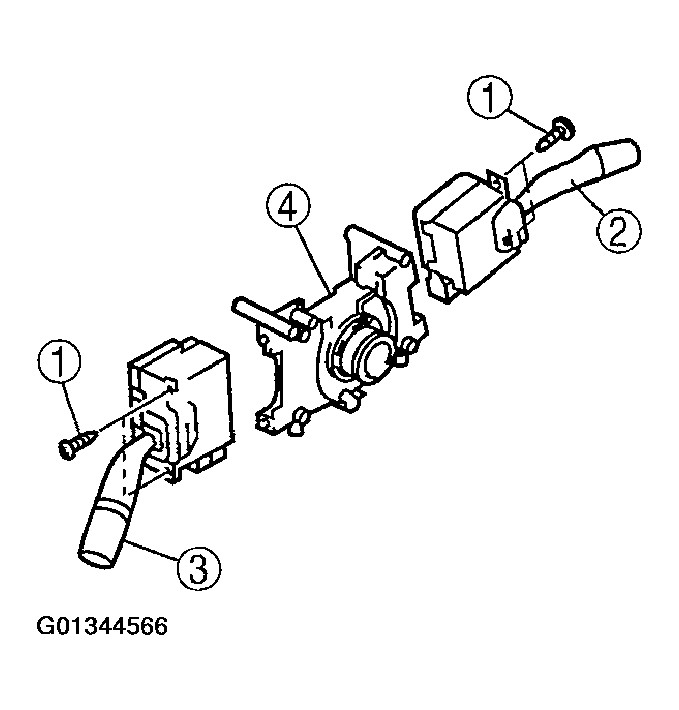

    Fig 2: Assembling/Disassembling Combination Switch
    G01344566Courtesy of MAZDA MOTORS CORP.
