Rear Auto Leveling Sensor Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Jack up the vehicle and remove the wheel and tire.
  3. Disconnect the connector.
  4. Remove the bolts and nut, then remove the rear auto leveling sensor.
  5. Install in the reverse order of removal.

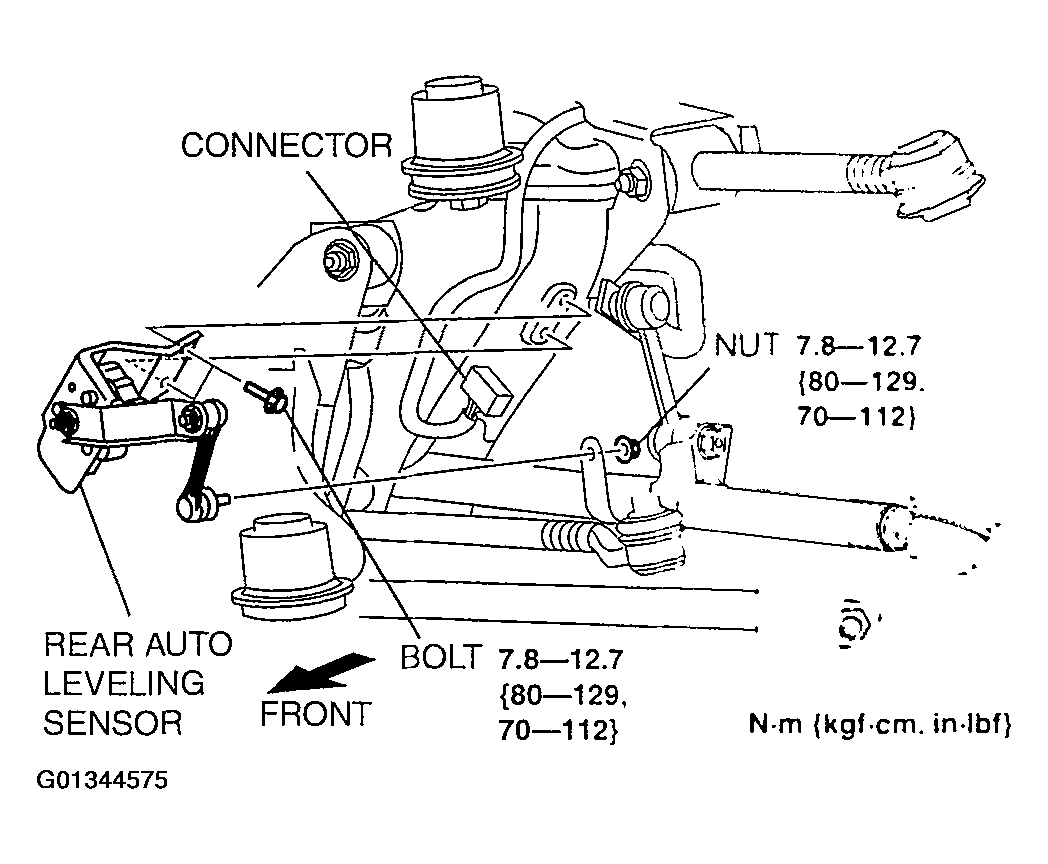

    Fig 1: Removing/Installing Rear Auto Leveling Sensor
    G01344575Courtesy of MAZDA MOTORS CORP.
