Generators & Regulators: Adjustments

NOTE: Drive belt tension is regulated by automatic tensioner. Use illustration for proper routing. See Fig 1 through Fig 5 .

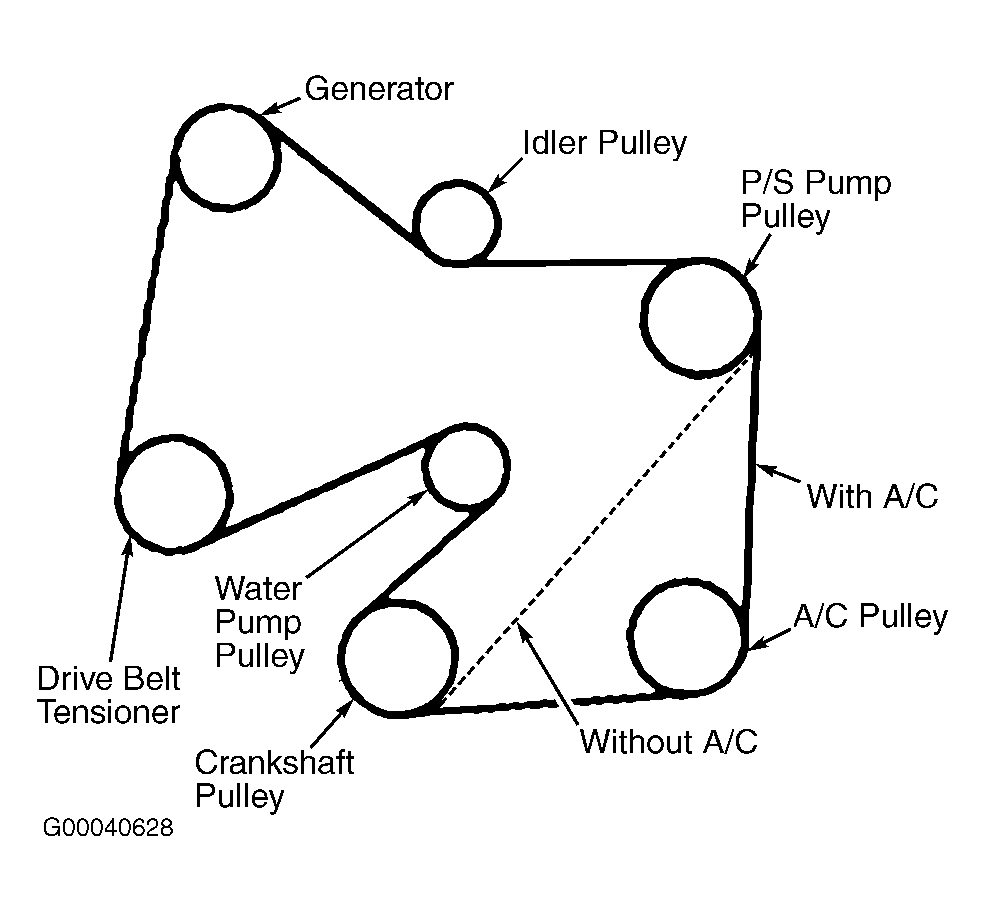

Fig 1: Checking Belt Routing & Tension (B2500)

Courtesy of FORD MOTOR CO.

Fig 2: Checking Belt Routing & Tension (B3000)

Courtesy of FORD MOTOR CO.

Fig 3: Checking Belt Routing & Tension (B4000)

Courtesy of FORD MOTOR CO.

Fig 4: Checking Belt Tension & Routing (2.0L Tribute)

Courtesy of FORD MOTOR CO.

Fig 5: Checking Belt Tension & Routing (3.0L Tribute)

Courtesy of FORD MOTOR CO.
